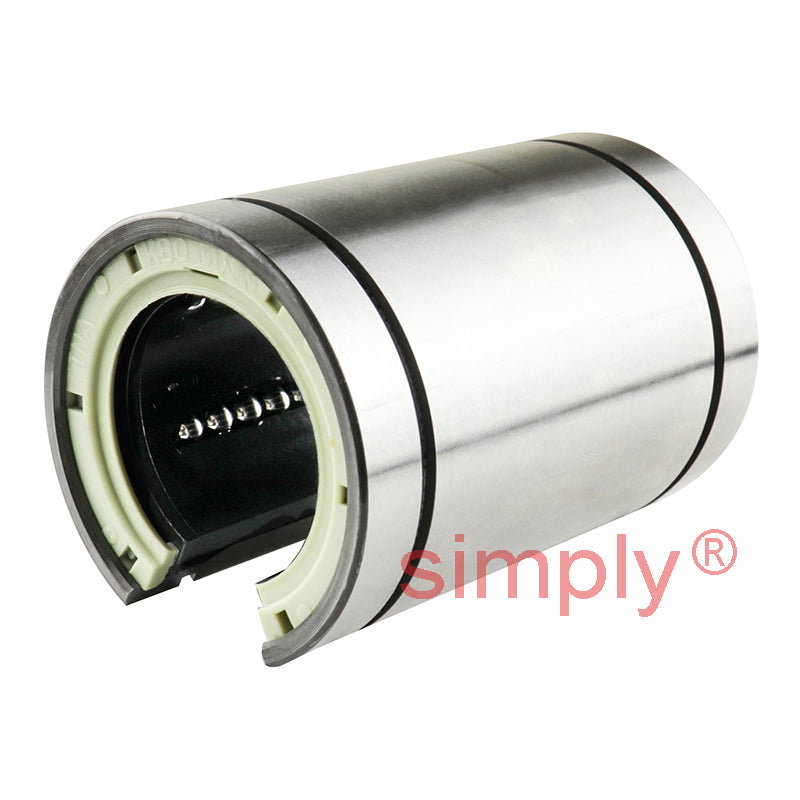

• INA KBO12 Linear Ball Bushing 12x22x32mm
  • INA
1 2

SKU: KBO12-INA

INA KBO12 Linear Ball Bushing 12x22x32mm

INA KBO12 Linear Ball Bushing 12x22x32mm
$69.13 ex VAT
$69.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.31
5+ $43.71
10+ $43.18
15+ $42.66
20+ $42.14
30+ $41.62
40+ $39.02
50+ $38.50
60+ $37.98
75+ $37.46
100+ $36.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KBO Linear Ball Bearings: Linear ball bearings of the machined range KBO and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Excellent running characteristics, can be relubricated
Brand / Quality:
INA - High Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Width:
32mm

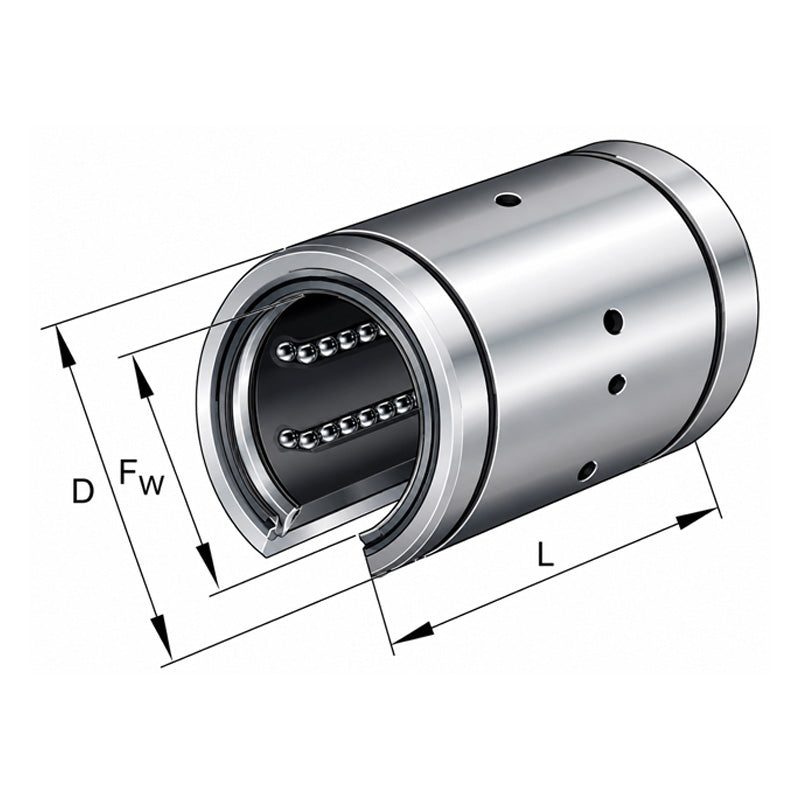

Technical
Fw 12mm
D 22mm
L 32mm
Number of rows of balls 4
B2 7.7mm
BL2 1.3mm
DN 21mm
L2 22.6mm
N4 2.2mm
T4 1.2mm
α 78°
Mass 0.03 kg
Basic dynamic load rating C max 600 N
Basic static load rating C0 max 445 N
