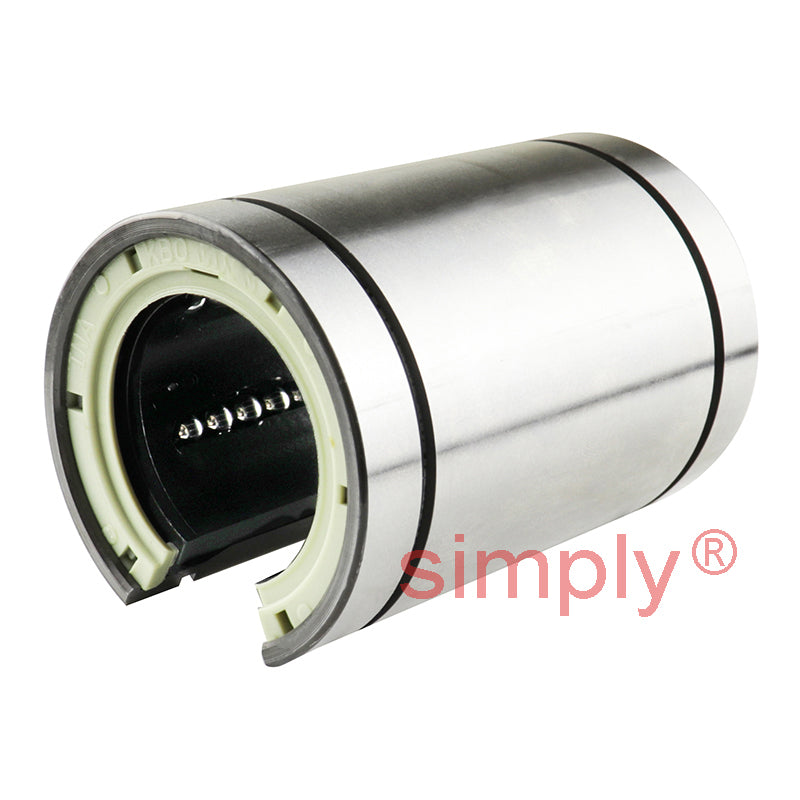

• INA KBO25 Linear Ball Bushing 25x40x58mm
  • INA
1 2

SKU: KBO25-INA

INA KBO25 Linear Ball Bushing 25x40x58mm

INA KBO25 Linear Ball Bushing 25x40x58mm
$128.27 ex VAT
$128.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $85.92
5+ $81.09
10+ $80.13
15+ $79.16
20+ $78.20
30+ $77.23
40+ $72.41
50+ $71.44
60+ $70.47
75+ $69.51
100+ $67.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KBO Linear Ball Bearings: Linear ball bearings of the machined range KBO and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Excellent running characteristics, can be relubricated
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Width:
58mm

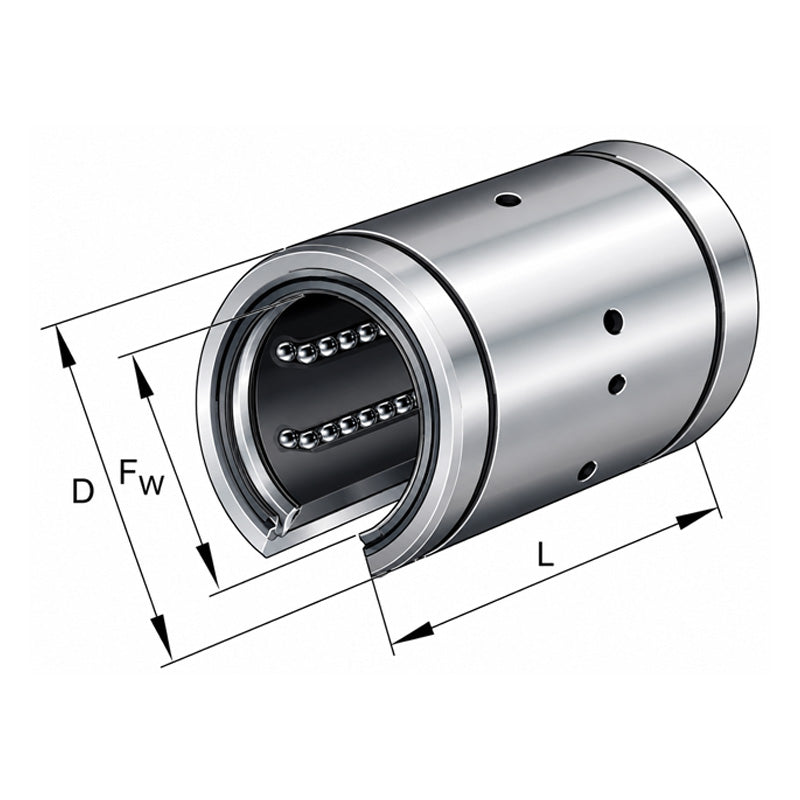

Technical
Fw 25mm
D 40mm
L 58mm
Number of rows of balls 5
B2 12.5mm
BL2 1.85mm
DN 37.5mm
L2 43.7mm
N4 3mm
T4 1.5mm
α 60°
Mass 0.15 kg
Basic dynamic load rating C max 2850 N
Basic static load rating C0 max 2330 N
