SKU: KBO25-PP-AS-INA
INA KBO25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
INA KBO25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
Regular price
$149.52
ex VAT
Regular price
Sale price
$149.52
ex VAT
In stock
Price Break
3+
$100.15
5+
$94.53
10+
$93.40
15+
$92.27
20+
$91.15
30+
$90.02
40+
$84.40
50+
$83.27
60+
$82.15
75+
$81.02
100+
$78.77
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA KBO..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBO and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical

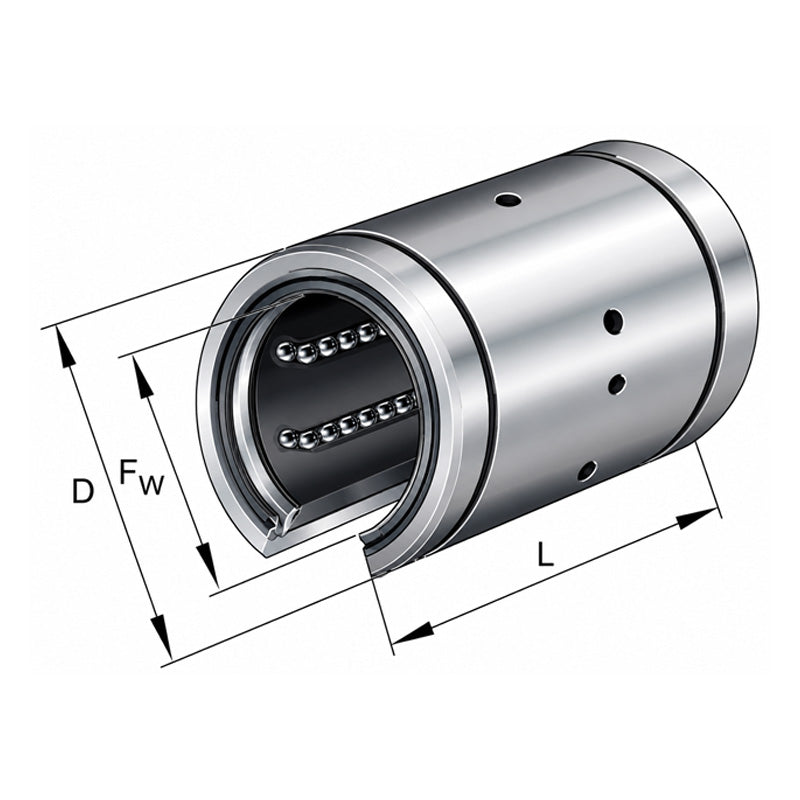

| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Number of rows of balls | 5 |
| B2 | 12.5mm |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| N2 | 2.5mm |
| N4 | 3mm |
| T4 | 1.5mm |
| α | 60° |
| β | 53° |
| Mass | 0.15 kg |
| Basic dynamic load rating C max | 2850 N |
| Basic static load rating C0 max | 2330 N |
