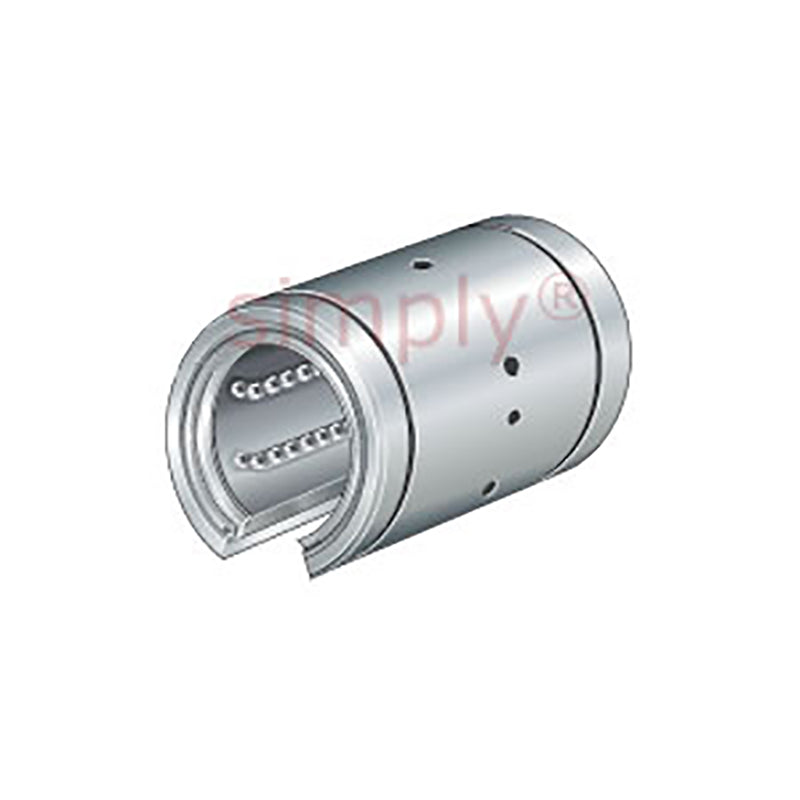

• INA KBO50PP Linear Ball Bushing with Contact Seals 50x75x100mm
  • INA
1 2

SKU: KBO50-PP-INA

INA KBO50PP Linear Ball Bushing with Contact Seals 50x75x100mm

INA KBO50PP Linear Ball Bushing with Contact Seals 50x75x100mm
$333.98 ex VAT
$333.98 ex VAT
Sale Sold out

In stock

Price Break
3+ $223.71
5+ $211.14
10+ $208.63
15+ $206.12
20+ $203.60
30+ $201.09
40+ $188.52
50+ $186.01
60+ $183.49
75+ $180.98
100+ $175.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KBO..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBO and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Excellent running characteristics, can be relubricated
Brand / Quality:
INA - High Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Width:
100mm

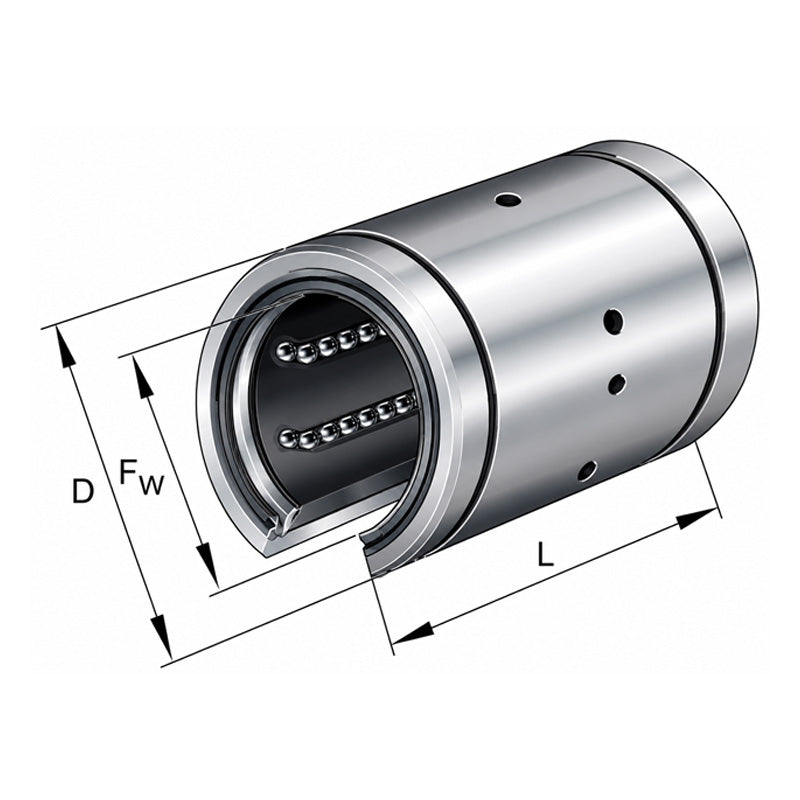

Technical
Fw 50mm
D 75mm
L 100mm
Number of rows of balls 5
B2 22.7mm
BL2 2.65mm
DN 72mm
L2 77.3mm
N4 3mm
T4 1.5mm
α 54°
Mass 0.85 kg
Basic dynamic load rating C max 8900 N
Basic static load rating C0 max 6600 N
