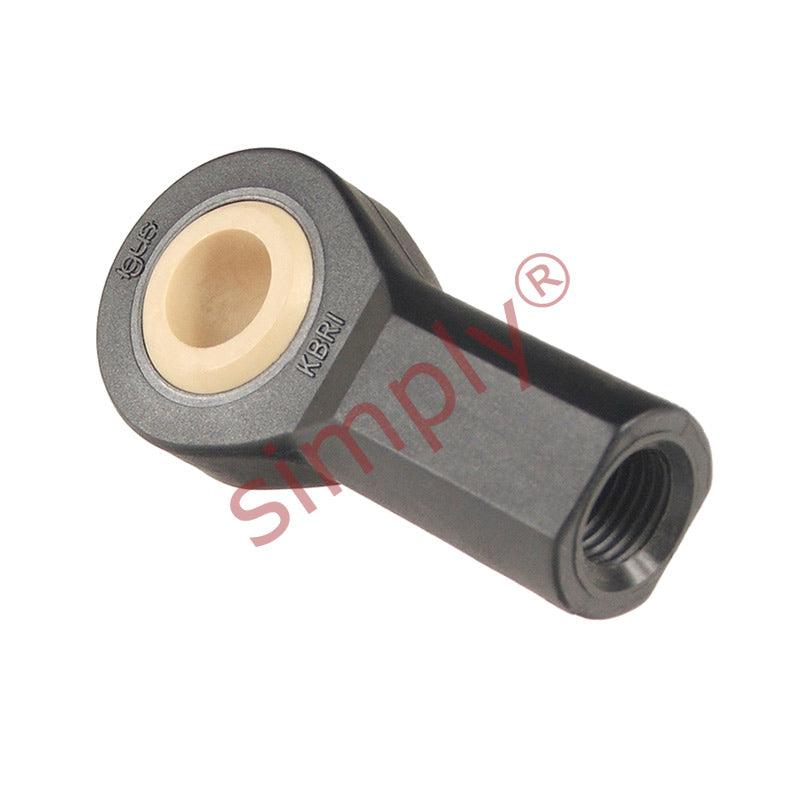

• igubal KBRI16 Right Hand Female Plastic Rod End 1 inch Bore 1-12 Thread - Allow 2-3 Days
  • Igus
1 2

SKU: KBRI-16

igubal KBRI16 Right Hand Female Plastic Rod End 1 inch Bore 1-12 Thread - Allow 2-3 Days

igubal KBRI16 Right Hand Female Plastic Rod End 1 inch Bore 1-12 Thread - Allow 2-3 Days
$42.01 ex VAT
$42.01 ex VAT
Sale Sold out

In stock

Price Break
4+ $28.14
9+ $26.56
19+ $26.24
29+ $25.93
39+ $25.61
49+ $25.29
59+ $23.71
69+ $23.40
79+ $23.08
89+ $22.76
99+ $22.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
1-12
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
25.4mm = 1 inch
Technical
d1 1 inch
d2 2.75 inch
d3 1-12 inch
d4 1.625 inch
C1 1 inch
B 1.375 inch
h1 4.125 inch
l3 2.125 inch
l4 5.5 inch
W 1.5 inch
Max pivot angle 20°
Max static tensile strength (short term) 6000 N
Max static tensile strength (long term) 3000 N
Max radial load (short term) 2600 N
Max radial load (long term) 1300 N
Min thread depth 1.488 inch
Max torque outside thread 46 Nm
Max torque through ball 85 Nm
Weight 197.5 g
