• igubal KBRM02 Right Hand Female Plastic Rod End 2mm Bore M2 Thread
1 1

SKU: KBRM-02

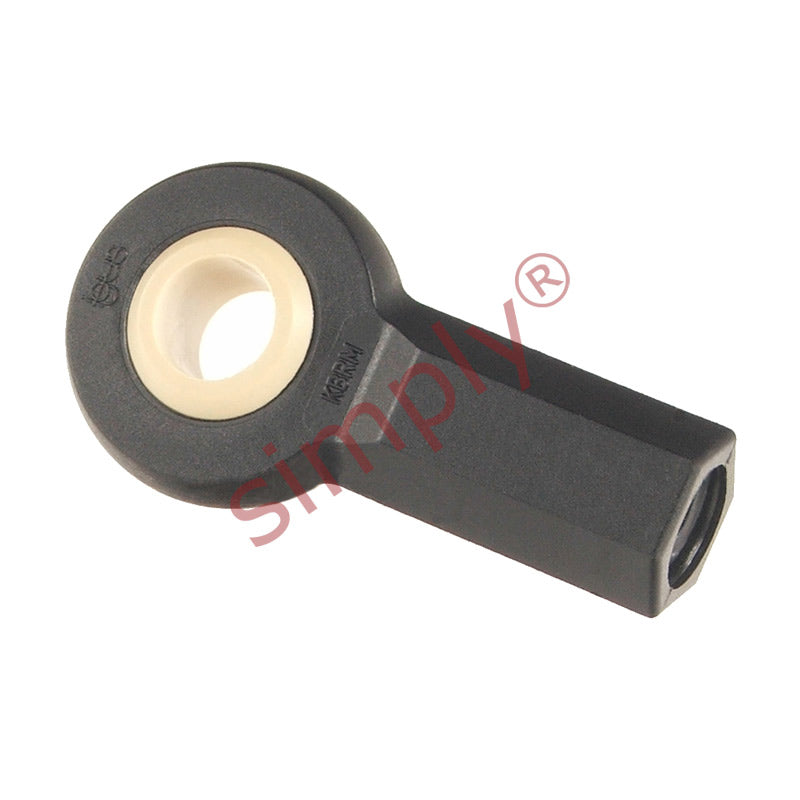

igubal KBRM02 Right Hand Female Plastic Rod End 2mm Bore M2 Thread

igubal KBRM02 Right Hand Female Plastic Rod End 2mm Bore M2 Thread
$11.23 ex VAT
$11.23 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
M2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
2mm
Technical
d1 2mm
d2 9mm
d3 M2
d4 4mm
d5 4.6mm
C1 3mm
B 4mm
h1 12.5mm
l1 6mm
l2 17mm
W SW04
Max pivot angle 30°
Max static tensile strength (short term) 200 N
Max static tensile strength (long term) 100 N
Max radial load (short term) 50 N
Max radial load (long term) 25 N
Min thread depth 4mm
Max torque strength inside thread 0.3 Nm
Max torque through ball (standard) 1 Nm
Weight 0.4 g
