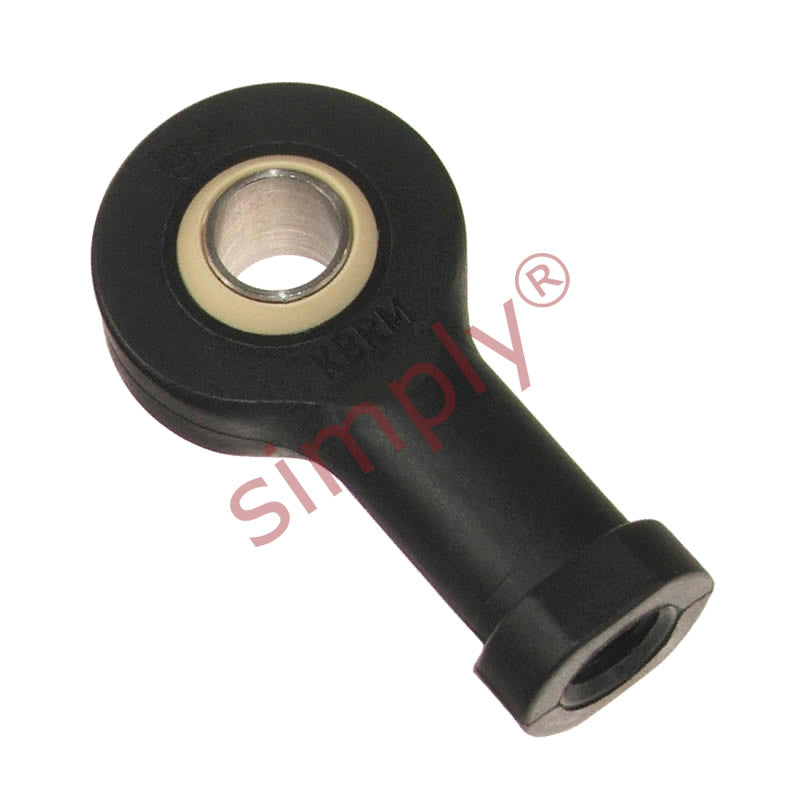

• igubal KBRM05M4MH Right Hand Female Plastic Rod End 5mm Bore M4 Thread with Metal Insert - Allow 5 Days
  • Igus
1 2

SKU: KBRM-05.M4.MH

igubal KBRM05M4MH Right Hand Female Plastic Rod End 5mm Bore M4 Thread with Metal Insert - Allow 5 Days

igubal KBRM05M4MH Right Hand Female Plastic Rod End 5mm Bore M4 Thread with Metal Insert - Allow 5 Days
$18.36 ex VAT
$18.36 ex VAT
Sale Sold out

In stock

Price Break
4+ $12.30
9+ $11.61
19+ $11.47
29+ $11.34
39+ $11.20
49+ $11.06
59+ $10.37
69+ $10.23
79+ $10.09
89+ $9.95
99+ $9.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
M4
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
5mm
Technical
d1 5mm
d2 18mm
d3 M4
d4 9mm
d5 12mm
C1 6mm
B 8mm
h1 27mm
l3 10mm
l4 36mm
W SW09
Max pivot angle 30°
Max static tensile strength (short term) 1000 N
Max static tensile strength (long term) 500 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 7mm
Max torque strength inside thread 0.75 Nm
Max torque through ball (standard) 5 Nm
Max torque through ball (MH) 12 Nm
Weight 3.5 g
