SKU: KBRM-06

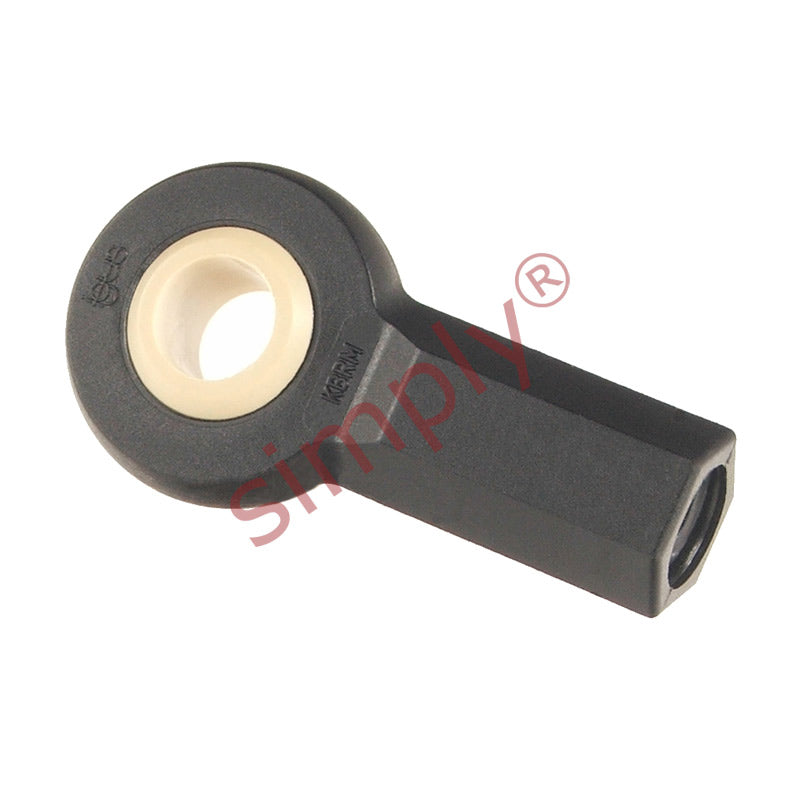

igubal KBRM06 Right Hand Female Plastic Rod End 6mm Bore M6 Thread
igubal KBRM06 Right Hand Female Plastic Rod End 6mm Bore M6 Thread
Regular price
$17.99
ex VAT
Regular price
Sale price
$17.99
ex VAT
In stock
Price Break
4+
$12.05
9+
$11.37
19+
$11.24
29+
$11.10
39+
$10.97
49+
$10.83
59+
$10.15
69+
$10.02
79+
$9.88
89+
$9.75
99+
$9.48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
Technical
Technical
| d1 | 6mm |
|---|---|
| d2 | 20mm |
| d3 | M6 |
| d4 | 10mm |
| d5 | 13mm |
| C1 | 7mm |
| B | 9mm |
| h1 | 30mm |
| l1 | 12mm |
| l2 | 40mm |
| W | SW11 |
| Max pivot angle | 29° |
| Max static tensile strength (short term) | 1400 N |
| Max static tensile strength (long term) | 700 N |
| Max radial load (short term) | 400 N |
| Max radial load (long term) | 200 N |
| Min thread depth | 8mm |
| Max torque strength inside thread | 1.5 Nm |
| Max torque through ball (standard) | 10 Nm |
| Max torque through ball (MH) | 15 Nm |
| Weight | 4.7 g |
