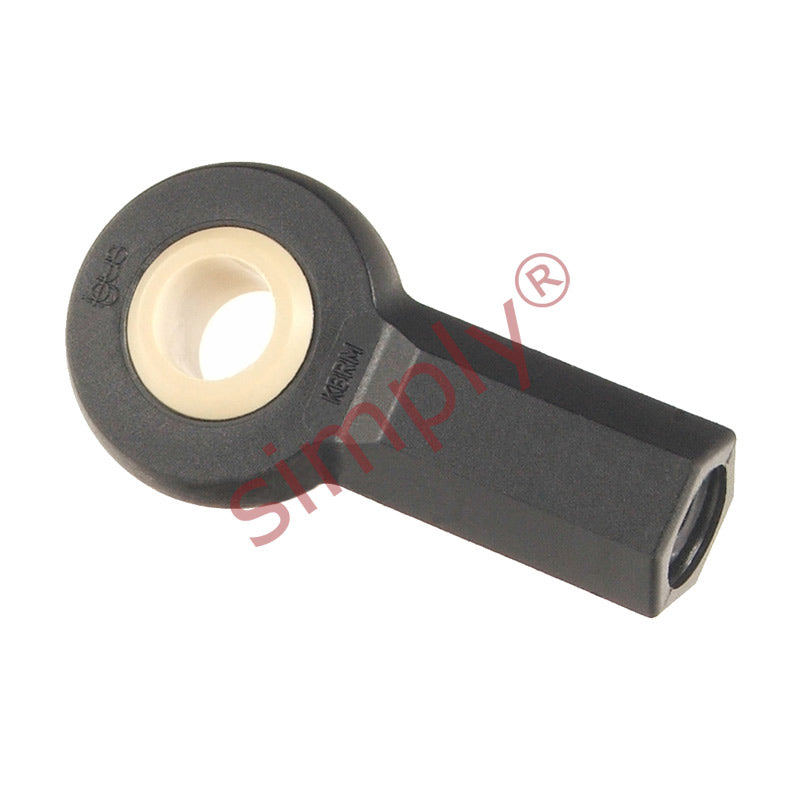

• igubal KBRM08 Right Hand Female Plastic Rod End 8mm Bore M8 Thread
  • Igus
1 2

SKU: KBRM-08

igubal KBRM08 Right Hand Female Plastic Rod End 8mm Bore M8 Thread

igubal KBRM08 Right Hand Female Plastic Rod End 8mm Bore M8 Thread
$18.36 ex VAT
$18.36 ex VAT
Sale Sold out

In stock

Price Break
4+ $12.30
9+ $11.61
19+ $11.47
29+ $11.34
39+ $11.20
49+ $11.06
59+ $10.37
69+ $10.23
79+ $10.09
89+ $9.95
99+ $9.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
M8
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
8mm
Technical
d1 8mm
d2 24mm
d3 M8
d4 13mm
d5 16mm
C1 9mm
B 12mm
h1 36mm
l1 16mm
l2 48mm
W SW14
Max pivot angle 25°
Max static tensile strength (short term) 2100 N
Max static tensile strength (long term) 1050 N
Max radial load (short term) 700 N
Max radial load (long term) 350 N
Min thread depth 11mm
Max torque strength inside thread 10 Nm
Max torque through ball (standard) 12 Nm
Max torque through ball (MH) 40 Nm
Weight 8.6 g
