SKU: KBRM-16
igubal KBRM16 Right Hand Female Plastic Rod End 16mm Bore M16 Thread
- Regular price
- $21.06 ex VAT
- Sale price
- $21.06
- Regular price
-
In stock
Quantity Price Breaks
4
$18.74
9
$17.69
19
$17.48
29
$17.27
39
$17.06
49
$16.85
59
$15.80
69
$15.58
79
$15.37
89
$15.16
99
$14.74
SKU:
KBRM-16
igubal KBRM16 Right Hand Female Plastic Rod End 16mm Bore M16 Thread
- Regular price
- $21.06 ex VAT
- Sale price
- $21.06
- Regular price
-
Description
|
IGUS igubal® KBRM series right hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals. Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C Materials: Ball material iglidur® W300, Housing: igumid G Uses: They are suitable for rotary, oscillating and linear movements and are light weight. Tolerances: They are manufactured in accordance to DIN ISO 12240 Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free |

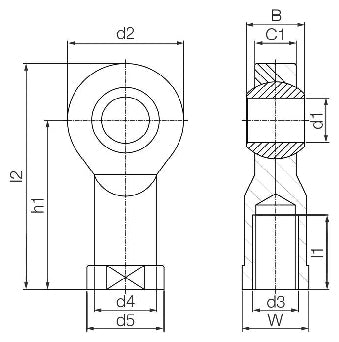

Technical
| d1 | = | 16mm |
| d2 | = | 42mm |
| d3 | = | M16 |
| d4 | = | 22mm |
| d5 | = | 27mm |
| C1 | = | 15mm |
| B | = | 21mm |
| h1 | = | 64mm |
| l1 | = | 28mm |
| l2 | = | 85mm |
| W | = | SW22 |
| Max pivot angle | = | 23& |
| deg | = | |
| Max static tensile strength (short term) | = | 4200 N |
| Max static tensile strength (long term) | = | 2100 N |
| Max radial load (short term) | = | 1300 N |
| Max radial load (long term) | = | 650 N |
| Min thread depth | = | 19mm |
| Max torque strength inside thread | = | 30 Nm |
| Max torque through ball (standard) | = | 40 Nm |
| Max torque through ball (MH) | = | 110 Nm |
| Weight | = | 39.6 g |
