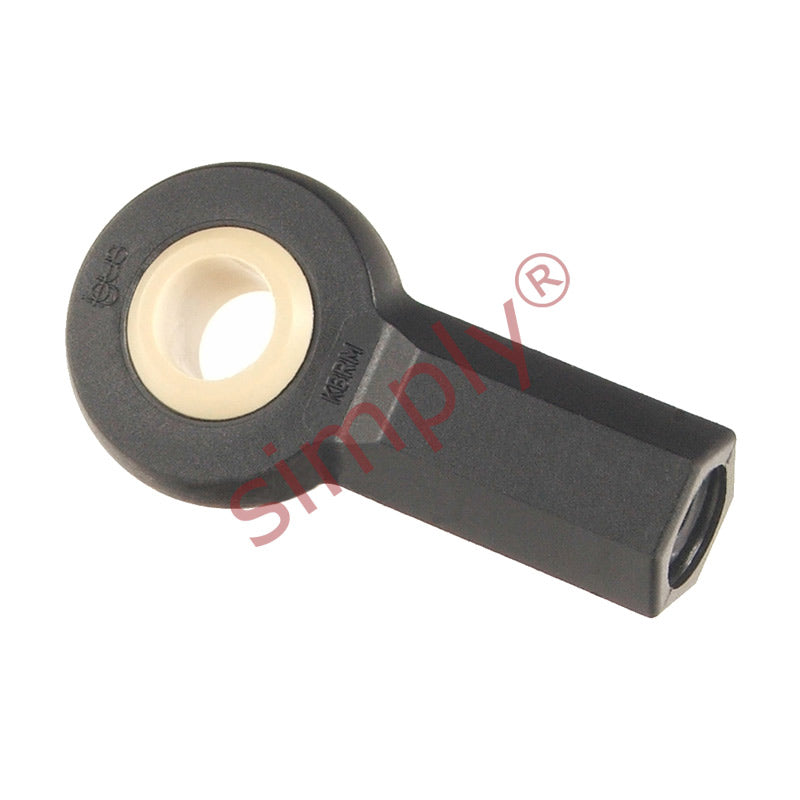

• igubal KBRM20M20 Right Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread
  • Igus
1 2

SKU: KBRM-20.M20

igubal KBRM20M20 Right Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread

igubal KBRM20M20 Right Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread
$29.76 ex VAT
$29.76 ex VAT
Sale Sold out

In stock

Price Break
4+ $19.93
9+ $18.81
19+ $18.59
29+ $18.37
39+ $18.14
49+ $17.92
59+ $16.80
69+ $16.57
79+ $16.35
89+ $16.13
99+ $15.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IGUS igubal® KBRM series right hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals.
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
Brand / Quality:
Igus - High Quality
Thread Size:
M20x2.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
20mm
Technical
d1 20mm
d2 50mm
d3 M20x2.5
d4 28mm
d5 34mm
C1 18mm
B 25mm
h1 77mm
l1 33mm
l2 102mm
W SW30
Max pivot angle 23°
Max static tensile strength (short term) 5400 N
Max static tensile strength (long term) 2700 N
Max radial load (short term) 2100 N
Max radial load (long term) 1050 N
Min thread depth 22mm
Max torque strength inside thread 60 Nm
Max torque through ball (standard) 55 Nm
Max torque through ball (MH) 200 Nm
Weight 73.5 g
