SKU: KBRM-25

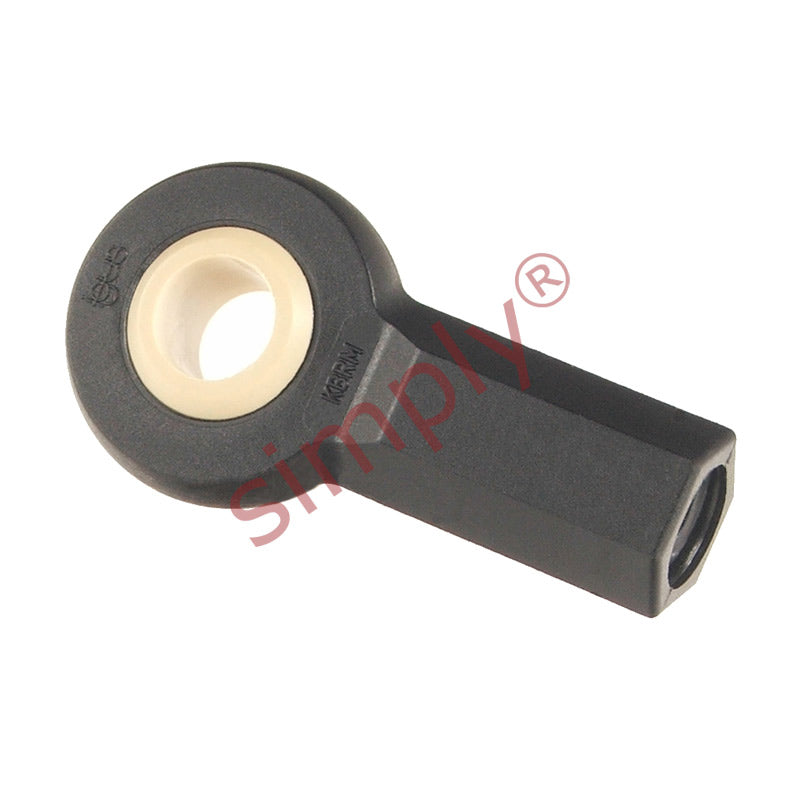

igubal KBRM25 Right Hand Female Plastic Rod End 25mm Bore M24x2 Thread
igubal KBRM25 Right Hand Female Plastic Rod End 25mm Bore M24x2 Thread
Regular price
$38.00
ex VAT
Regular price
Sale price
$38.00
ex VAT
Low stock
Price Break
4+
$25.45
9+
$24.02
19+
$23.74
29+
$23.45
39+
$23.17
49+
$22.88
59+
$21.45
69+
$21.16
79+
$20.88
89+
$20.59
99+
$20.02
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
Technical
Technical
| d1 | 25mm |
|---|---|
| d2 | 60mm |
| d3 | M24x2 |
| d4 | 32mm |
| d5 | 41mm |
| C1 | 22mm |
| B | 31mm |
| h1 | 94mm |
| l1 | 42mm |
| l2 | 124mm |
| W | SW36 |
| Max pivot angle | 22° |
| Max static tensile strength (short term) | 8500 N |
| Max static tensile strength (long term) | 4250 N |
| Max radial load (short term) | 2300 N |
| Max radial load (long term) | 1150 N |
| Min thread depth | 28mm |
| Max torque strength inside thread | 120 Nm |
| Max torque through ball (standard) | 60 Nm |
| Weight | 119.8 g |
