SKU: KBRM-30

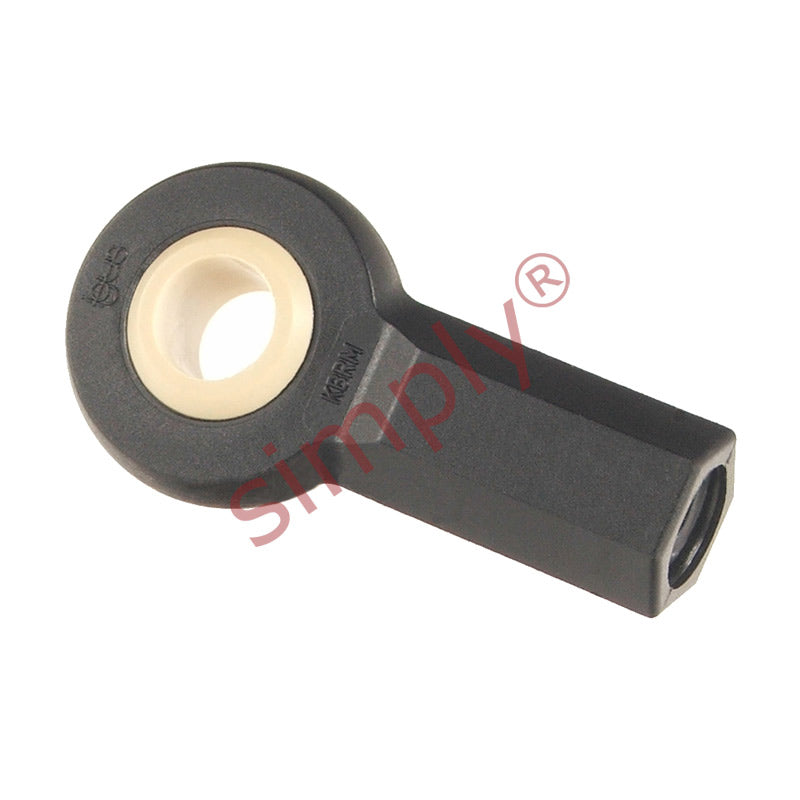

igubal KBRM30 Right Hand Female Plastic Rod End 30mm Bore M30x2 Thread
igubal KBRM30 Right Hand Female Plastic Rod End 30mm Bore M30x2 Thread
Regular price
$66.38
ex VAT
Regular price
Sale price
$66.38
ex VAT
In stock
Price Break
4+
$44.47
9+
$41.97
19+
$41.47
29+
$40.97
39+
$40.47
49+
$39.97
59+
$37.47
69+
$36.97
79+
$36.47
89+
$35.97
99+
$34.98
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 30mm
Technical
Technical
| d1 | 30mm |
|---|---|
| d2 | 70mm |
| d3 | M30x2 |
| d4 | 37mm |
| d5 | 50mm |
| C1 | 25mm |
| B | 37mm |
| h1 | 110mm |
| l1 | 51mm |
| l2 | 145mm |
| W | SW41 |
| Max pivot angle | 22° |
| Max static tensile strength (short term) | 10500 N |
| Max static tensile strength (long term) | 5250 N |
| Max radial load (short term) | 2500 N |
| Max radial load (long term) | 1250 N |
| Min thread depth | 34mm |
| Max torque strength inside thread | 135 Nm |
| Max torque through ball (standard) | 60 Nm |
| Weight | 177 g |
