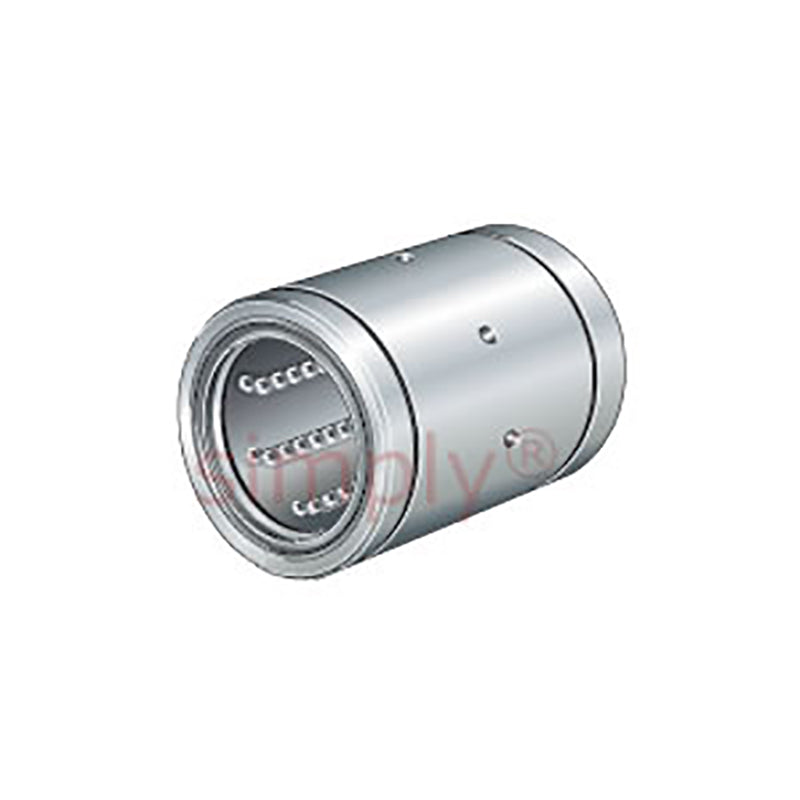

• INA KBS20PPAS Relubricatable Linear Ball Bushing with Contact Seals 20x32x45mm
  • INA
1 2

SKU: KBS20-PP-AS-INA

INA KBS20PPAS Relubricatable Linear Ball Bushing with Contact Seals 20x32x45mm

INA KBS20PPAS Relubricatable Linear Ball Bushing with Contact Seals 20x32x45mm
$98.04 ex VAT
$98.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.67
5+ $61.98
10+ $61.25
15+ $60.51
20+ $59.77
30+ $59.03
40+ $55.34
50+ $54.60
60+ $53.87
75+ $53.13
100+ $51.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Excellent running characteristics, can be relubricated
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Width:
45mm

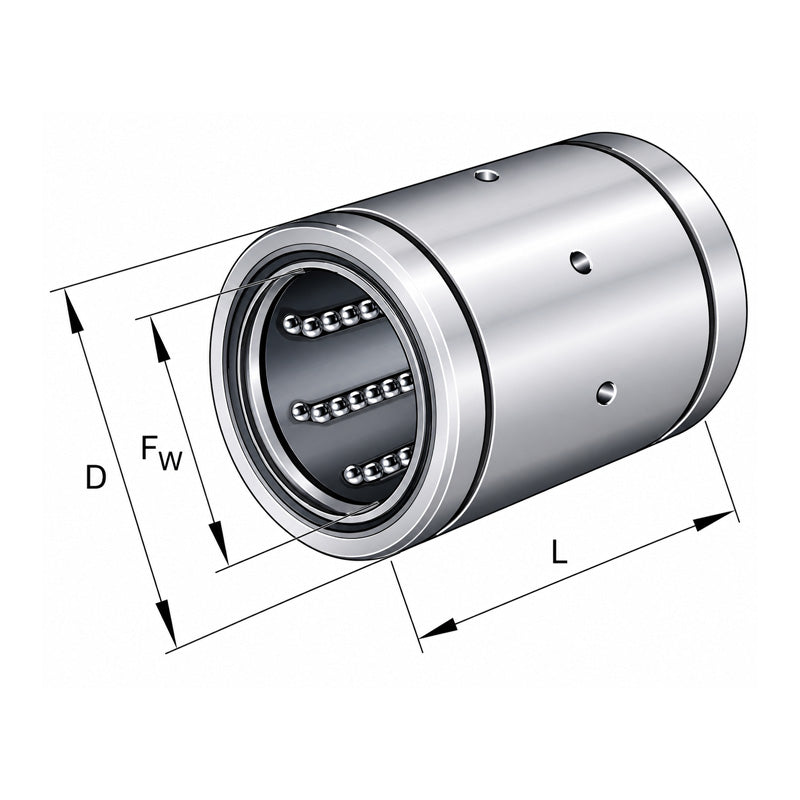

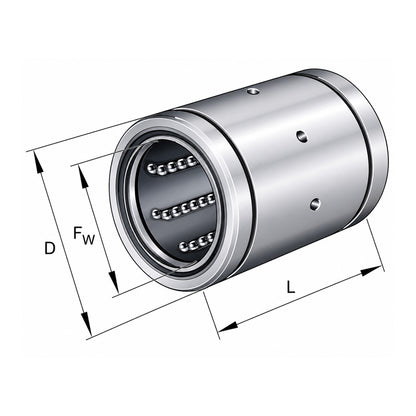

Technical
Fw 20mm
D 32mm
L 45mm
Numer of rows of balls 6
B3 1mm
BL2 1.6mm
DN 30.3mm
L2 31.2mm
Mass 0.09 kg
Basic dynamic load rating C min 1570 N
Basic static load rating C0 min 1230 N
Basic dynamic load rating C max 1660 N
Basic static load rating C0 max 1570 N
