• INA KBS50 Linear Ball Bushing 50x75x100mm
  • INA
1 2

SKU: KBS50-INA

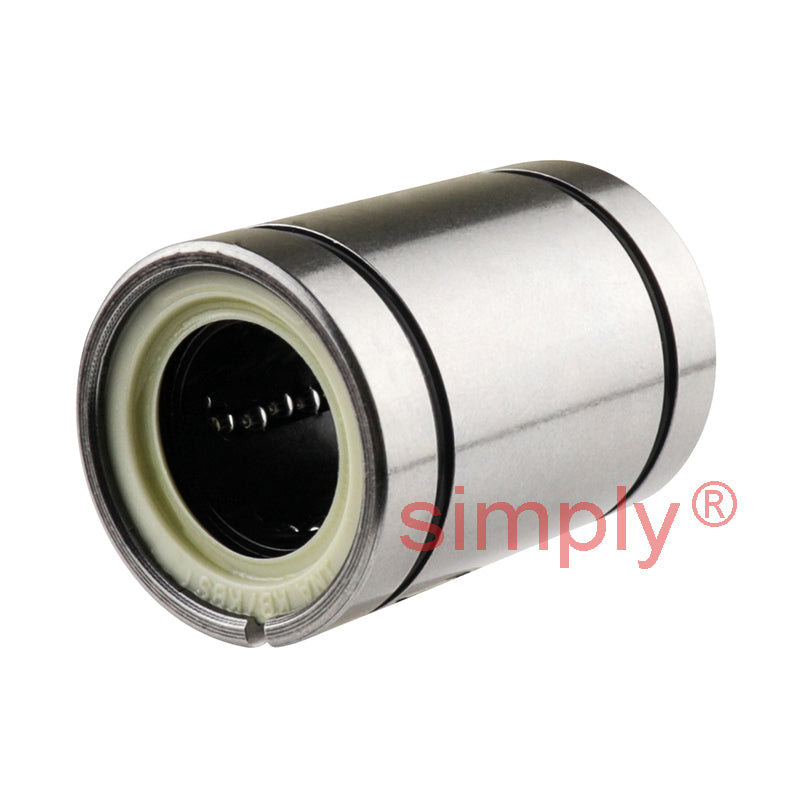

INA KBS50 Linear Ball Bushing 50x75x100mm

INA KBS50 Linear Ball Bushing 50x75x100mm
$260.44 ex VAT
$260.44 ex VAT
Sale Sold out

In stock

Price Break
3+ $174.45
5+ $164.65
10+ $162.69
15+ $160.73
20+ $158.77
30+ $156.81
40+ $147.01
50+ $145.05
60+ $143.09
75+ $141.13
100+ $137.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Excellent running characteristics, can be relubricated
Brand / Quality:
INA - High Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Width:
100mm

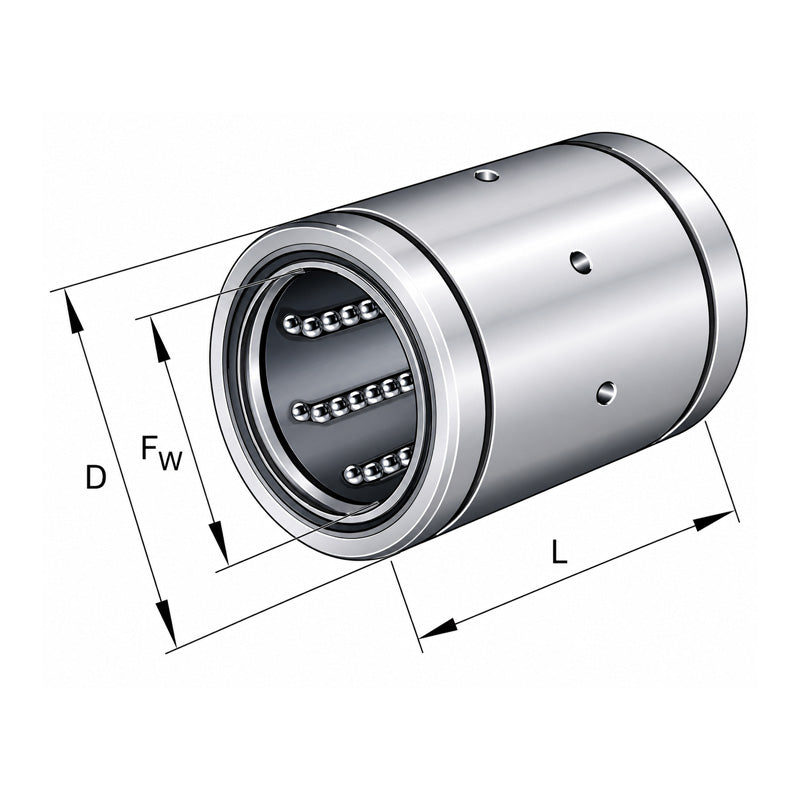

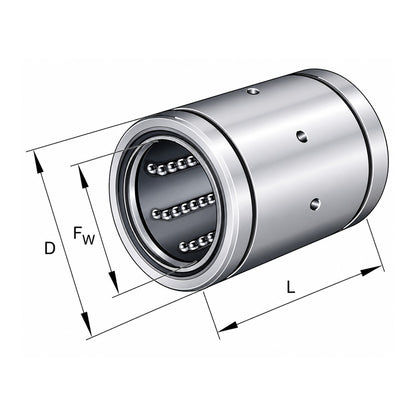

Technical
Fw 50mm
D 75mm
L 100mm
Numer of rows of balls 6
B3 1mm
BL2 2.65mm
DN 72mm
L2 77.3mm
Mass 1 kg
Basic dynamic load rating C min 8700 N
Basic static load rating C0 min 6300 N
Basic dynamic load rating C max 9200 N
Basic static load rating C0 max 8000 N
