SKU: KBZ10-MB

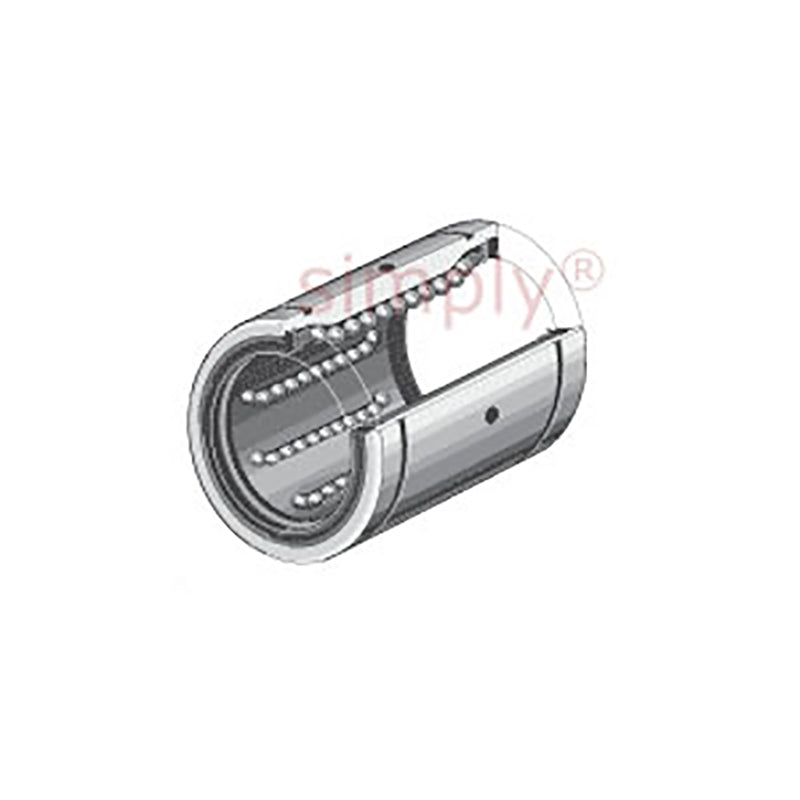

Major Brand KBZ10 Imperial Linear Ball Bushing 5/8x1-1/8x1-1/2 inch
- Regular price
- $57.55 ex VAT
- Sale price
- $57.55
- Regular price
-
In stock
Quantity Price Breaks
3
$51.22
5
$48.34
10
$47.77
15
$47.19
20
$46.62
30
$46.04
40
$43.16
50
$42.59
60
$42.01
75
$41.44
100
$40.29
SKU:
KBZ10-MB
Major Brand KBZ10 Imperial Linear Ball Bushing 5/8x1-1/8x1-1/2 inch
- Regular price
- $57.55 ex VAT
- Sale price
- $57.55
- Regular price
-
Description
|
INA KBZ Imperial Linear Ball Bearings: Linear ball bearings of the machined range KBZ and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
Technical
| d | = | 5/8 inch |
| D | = | 1-1/8 inch |
| C | = | 1-1/2 inch |
| C1 | = | 1.104 inch |
| C7 | = | 0.056 inch |
| D1 | = | 1.059 inch |
| Mass | = | 0.17 lbs |
| Number of rows of balls | = | 4? |
| Basic dynamic load rating C | = | 174 lbf |
| Basic static load rating C0 | = | 265 lbf |
