SKU: KFL000

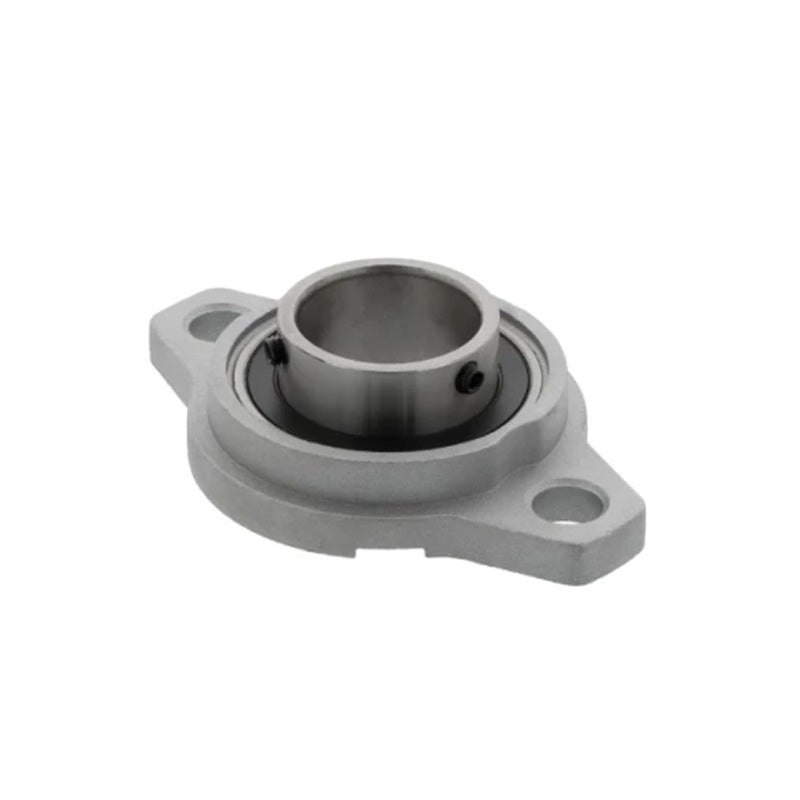

KFL000 Aluminium 2 Bolt Oval Bearing with Grub Screws 10mm Bore
KFL000 Aluminium 2 Bolt Oval Bearing with Grub Screws 10mm Bore
Regular price
$13.35
ex VAT
Regular price
Sale price
$13.35
ex VAT
In stock
Price Break
3+
$8.94
4+
$8.44
9+
$8.34
19+
$8.24
49+
$8.14
99+
$8.04
499+
$7.54
999+
$7.43
1999+
$7.33
2999+
$7.23
4999+
$7.03
Quantity
Couldn't load pickup availability
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Style:
- KFL
- Bolt Hole Centres:
- 45mm
Technical
Technical
| d | 10mm |
|---|---|
| a | 60mm |
| e | 45mm |
| g | 6mm |
| l | 12mm |
| N | 7mm |
| b | 36mm |
| n | 4mm |
| Bi | 14mm |
| t | 19.8mm |
| z | 16mm |
| Recommended fixing screw | M6 |
| Weight | 0.058 kg |
| Dynamic load | 4606 N ~ 469.681 kgf |
| Static load | 1906 N ~ 194.358 kgf |
