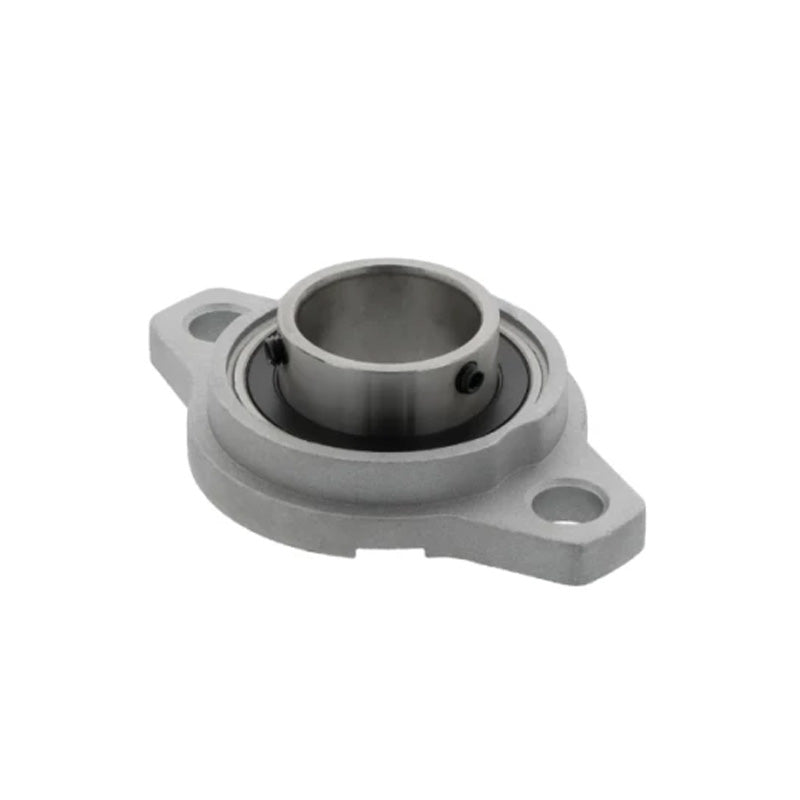

• KFL001 Aluminium 2 Bolt Oval Bearing with Grub Screws 12mm Bore
1 1

SKU: KFL001

KFL001 Aluminium 2 Bolt Oval Bearing with Grub Screws 12mm Bore

KFL001 Aluminium 2 Bolt Oval Bearing with Grub Screws 12mm Bore
$13.35 ex VAT
$13.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $8.94
4+ $8.44
9+ $8.34
19+ $8.24
49+ $8.14
99+ $8.04
499+ $7.54
999+ $7.43
1999+ $7.33
2999+ $7.23
4999+ $7.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Style:
KFL
Bolt Hole Centres:
48mm
Technical
d 12mm
a 63mm
e 48mm
g 6mm
l 12mm
N 7mm
b 38mm
n 4mm
Bi 14.5mm
t 19.5mm
z 16.5mm
Recommended fixing screw M6
Weight 0.08 kg
Dynamic load 5096 N ~ 519.647 kgf
Static load 2401 N ~ 244.834 kgf
