• KFL004 Aluminium 2 Bolt Oval Bearing with Grub Screws 20mm Bore
1 1

SKU: KFL004

KFL004 Aluminium 2 Bolt Oval Bearing with Grub Screws 20mm Bore

KFL004 Aluminium 2 Bolt Oval Bearing with Grub Screws 20mm Bore
$18.77 ex VAT
$18.77 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.57
4+ $11.87
9+ $11.73
19+ $11.58
49+ $11.44
99+ $11.30
499+ $10.60
999+ $10.45
1999+ $10.31
2999+ $10.17
4999+ $9.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

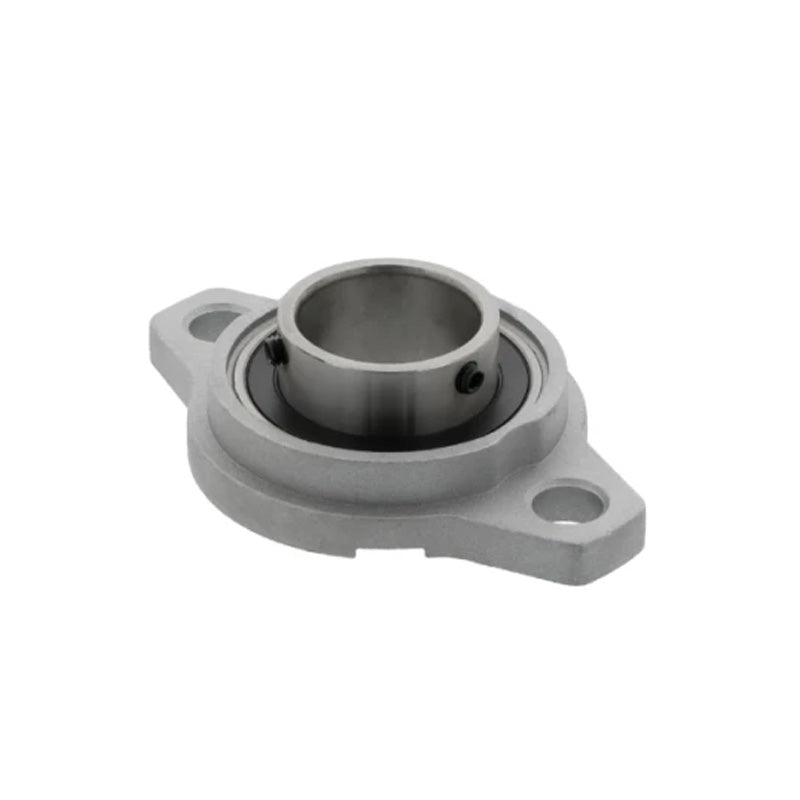

KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Style:
KFL
Bolt Hole Centres:
71mm
Technical
d 20mm
a 90mm
e 71mm
g 8mm
l 16mm
N 10mm
b 55mm
n 6mm
Bi 21mm
t 26.5mm
z 23mm
Recommended fixing screw M8
Weight 0.23 kg
Dynamic load 9359 N ~ 954.352 kgf
Static load 5047 N ~ 514.651 kgf
