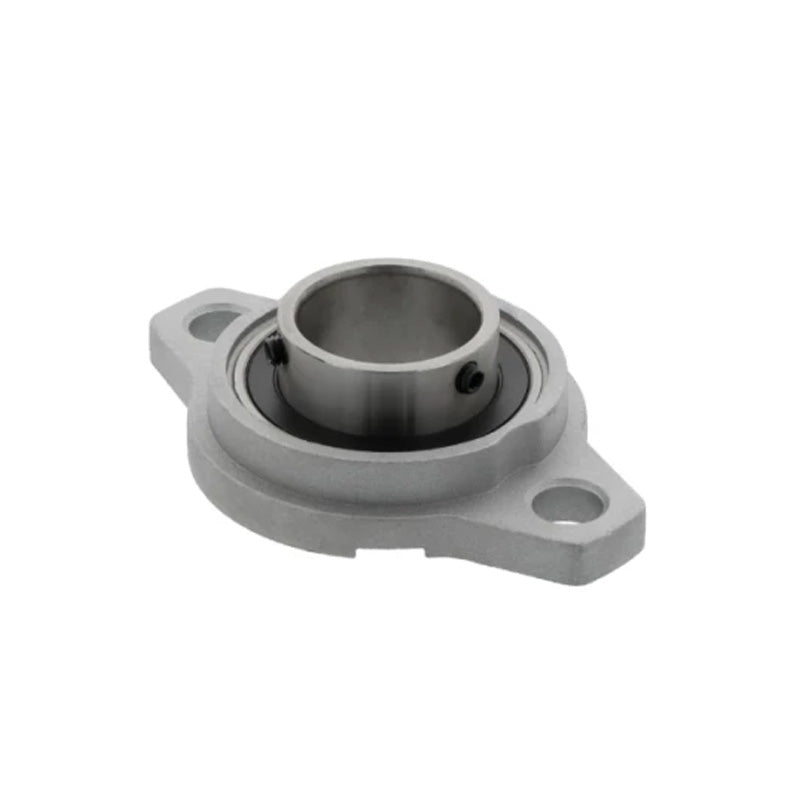

• KFL006 Aluminium 2 Bolt Oval Bearing with Grub Screws 30mm Bore
1 1

SKU: KFL006

KFL006 Aluminium 2 Bolt Oval Bearing with Grub Screws 30mm Bore

KFL006 Aluminium 2 Bolt Oval Bearing with Grub Screws 30mm Bore
$20.50 ex VAT
$20.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.74
4+ $12.96
9+ $12.81
19+ $12.65
49+ $12.50
99+ $12.35
499+ $11.57
999+ $11.42
1999+ $11.27
2999+ $11.11
4999+ $10.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Style:
KFL
Bolt Hole Centres:
85mm
Technical
d 30mm
a 112mm
e 85mm
g 9mm
l 16mm
N 13mm
b 70mm
n 6.5mm
Bi 24.5mm
t 30.5mm
z 27mm
Recommended fixing screw M10
Weight 0.39 kg
Dynamic load 13230 N ~ 1349.085 kgf
Static load 8281 N ~ 844.427 kgf
