SKU: KL12

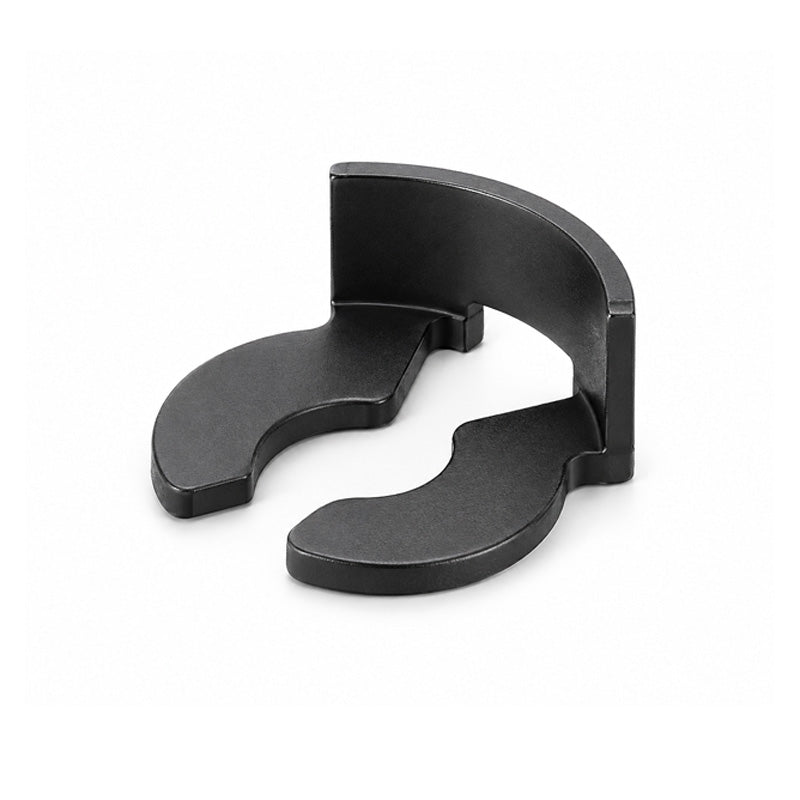

Chiavette KL12 Steel Clevis Pin Retainers For Use With PKS/PKSAL12 Clevis Pin - Allow 2-3 Days
In stock
Couldn't load pickup availability
Description
Chiavette Steel Retainer Clip for Clevis Pin: These clevis pin retainers are designed to seamlessly complement our clevis pin range, this retainer clip effortlessly locks clevis pins securely in place. These retainer clips fit into the groove of a clevis pin which easily secures the pin. Engineered from spring steel, our retainer clips offer durability and resilience, providing support even in the most demanding environments. These retainers are designed to work alongside our Chiavette range of clevis pins: PKS and PKSAL. For further information regarding the compatibility of these retainer clips with specific clevis pin models, please contact our sales department for assistance.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 12mm
- Material:
- Steel
Technical
| --- | Dimensions |
|---|---|
| No. | KL12 |
| Material | Steel |
| d1 | 12mm |
| d3 | 16.7mm |
| h | 18mm |
| h1 | 10.5mm |
| b | 6.1mm |
| s | 0.6mm |
| d2 | 9mm |
| m | 1.15mm (+0.1mm) |
| n | 5mm (+0.3mm) |
| z1 | 1.3mm |
| Max axial Load (When used with PKS Pin) | 10.7kN |
| Max Axial Load (When used with PKSAL Pin) | 4.8kN |
| Weight | 0.001102kg |
| --- | Use With |
| Steel Pin | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKS12+Pin>PKS12</a> |
| Aluminium Pin | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKSAL12+Pin>PKSAL12</a> |
