• KM3 Lock Nuts for Adaptor and Withdrawal Sleeves 17x28x5mm
1 1

SKU: KM3-MB

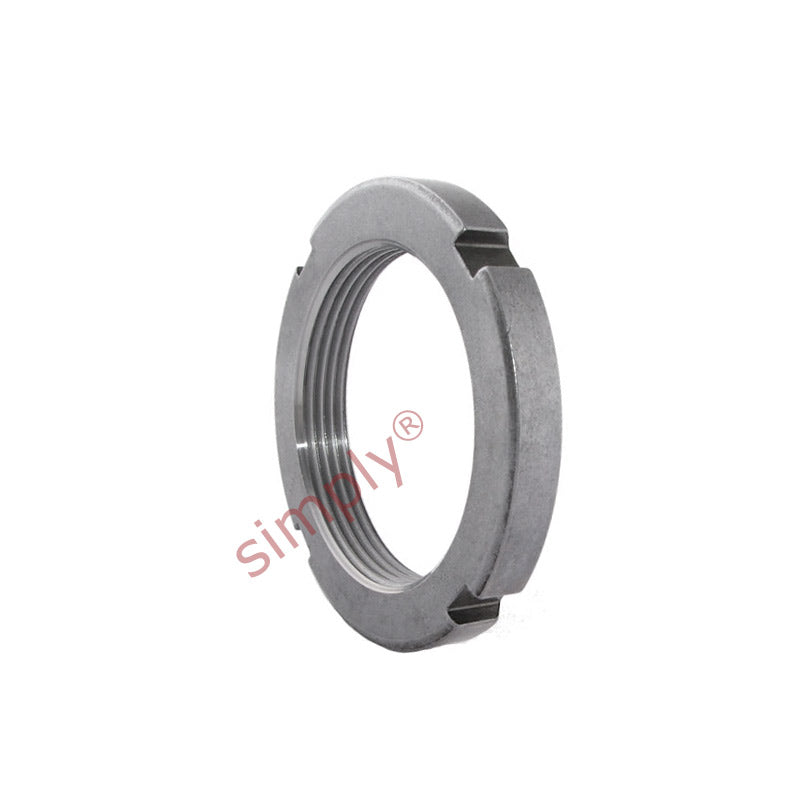

KM3 Lock Nuts for Adaptor and Withdrawal Sleeves 17x28x5mm

KM3 Lock Nuts for Adaptor and Withdrawal Sleeves 17x28x5mm
$10.11 ex VAT
$10.11 ex VAT
Sale Sold out

Equivalent to: KM03

In stock

Price Break
10+ $6.78
19+ $6.40
29+ $6.32
39+ $6.24
49+ $6.17
74+ $6.09
99+ $5.71
199+ $5.64
249+ $5.56
499+ $5.48
999+ $5.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
M17x1
Technical
G M17x1mm
d1 24mm
d3 28mm
B 5mm
b 4mm
h 2mm
Weight 0.012kg
Appropriate locking washer MB3
