SKU: KMFE10-SKF

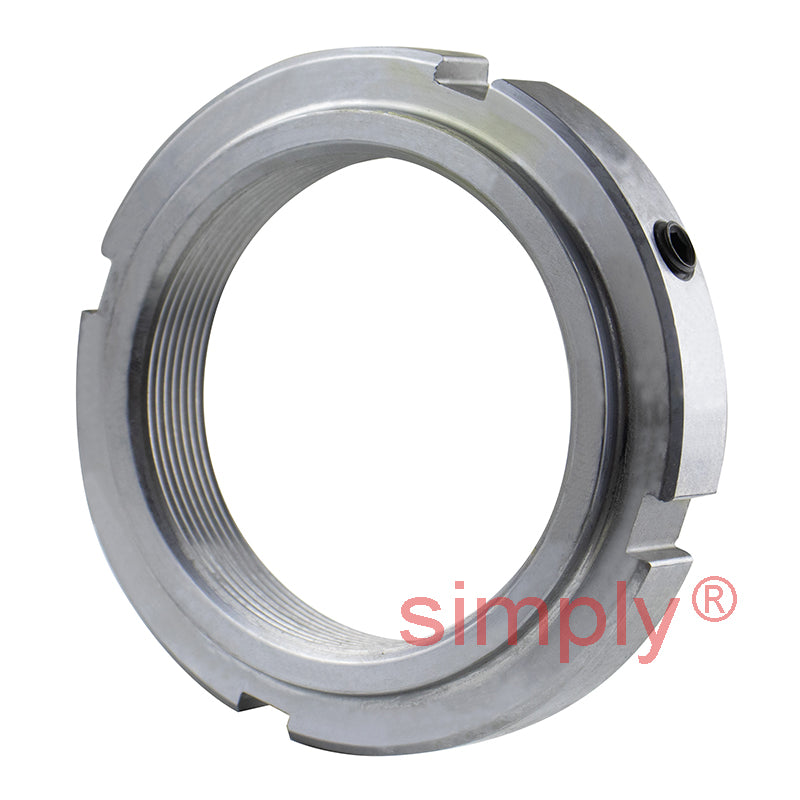

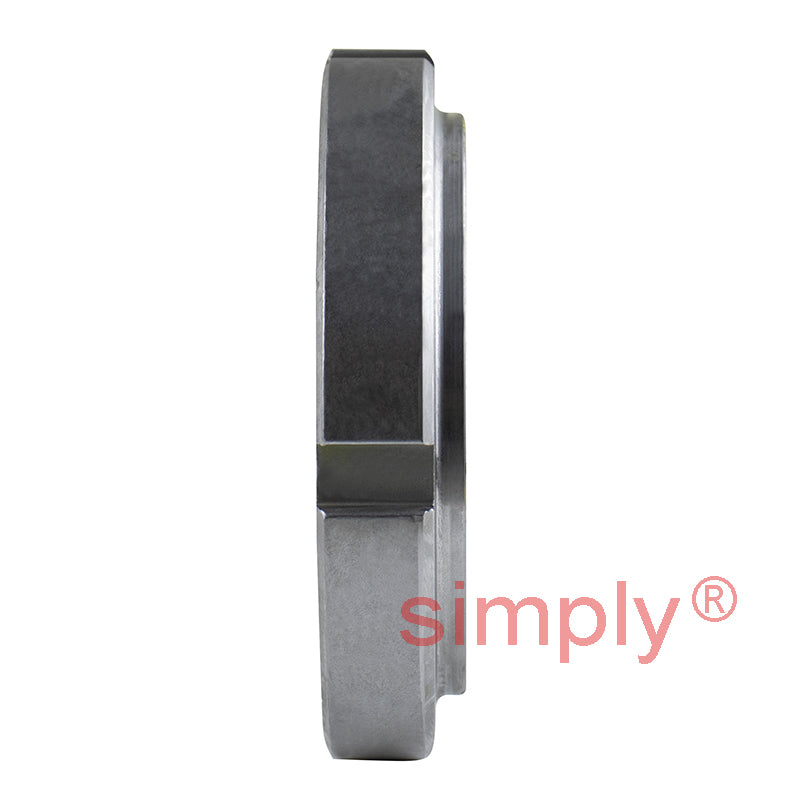

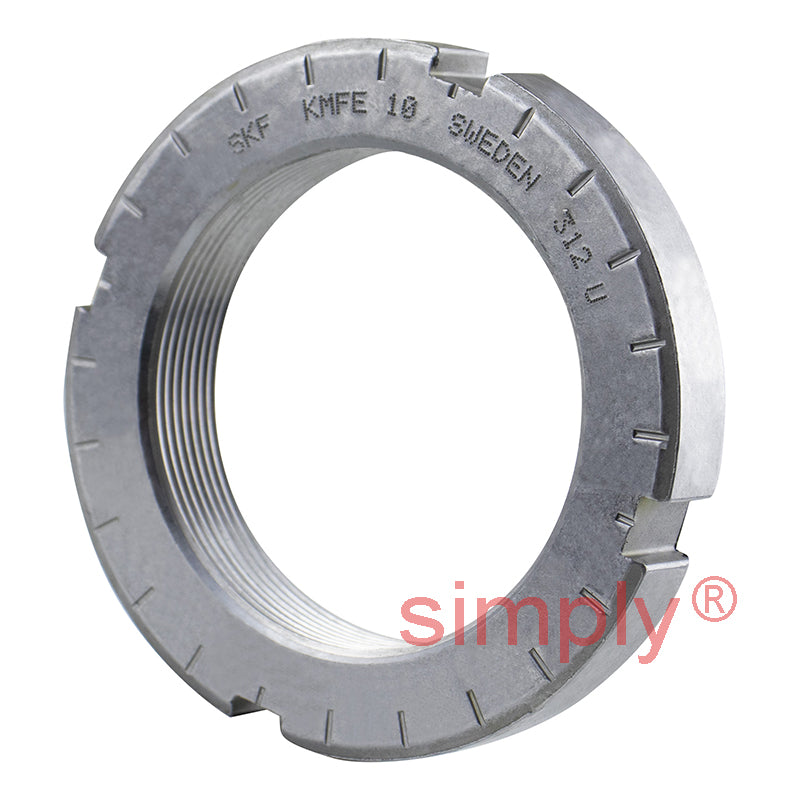

SKF KMFE10 Lock Nut with Locking Screw M50x1.5mm

SKF KMFE10 Lock Nut with Locking Screw M50x1.5mm
$47.94 ex VAT
$47.94 ex VAT
Sale Sold out

In stock

Price Break
10+ $32.11
19+ $30.31
29+ $29.95
39+ $29.59
49+ $29.23
74+ $28.87
99+ $27.06
199+ $26.70
249+ $26.34
499+ $25.98
999+ $25.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable

Brand / Quality:
SKF - High Quality
Thread Size:
M50x1.5
Technical
d1 57.5mm
d3 70mm
B 14mm
B1 11mm
b 6mm
h 2.5mm
Axial load capacity 91.5 kN
Looseing torque 100 Nm
Weight 0.16 kg
G M50x1.5
Designation KMFE10
Spanner HN10
Grub M6
Screw tightening torque 8 Nm
