SKU: KMFE16-SKF

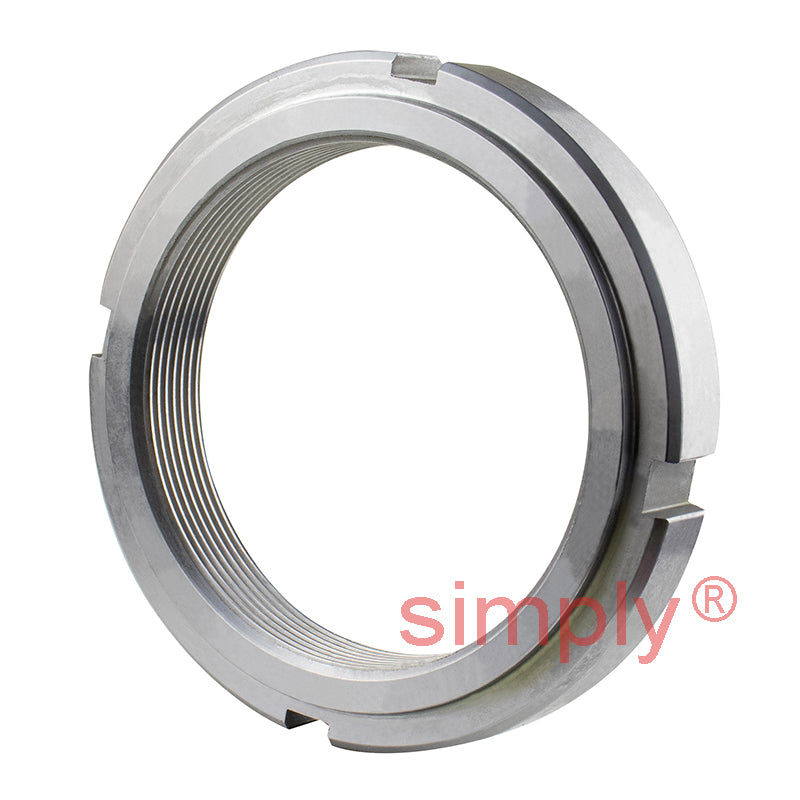

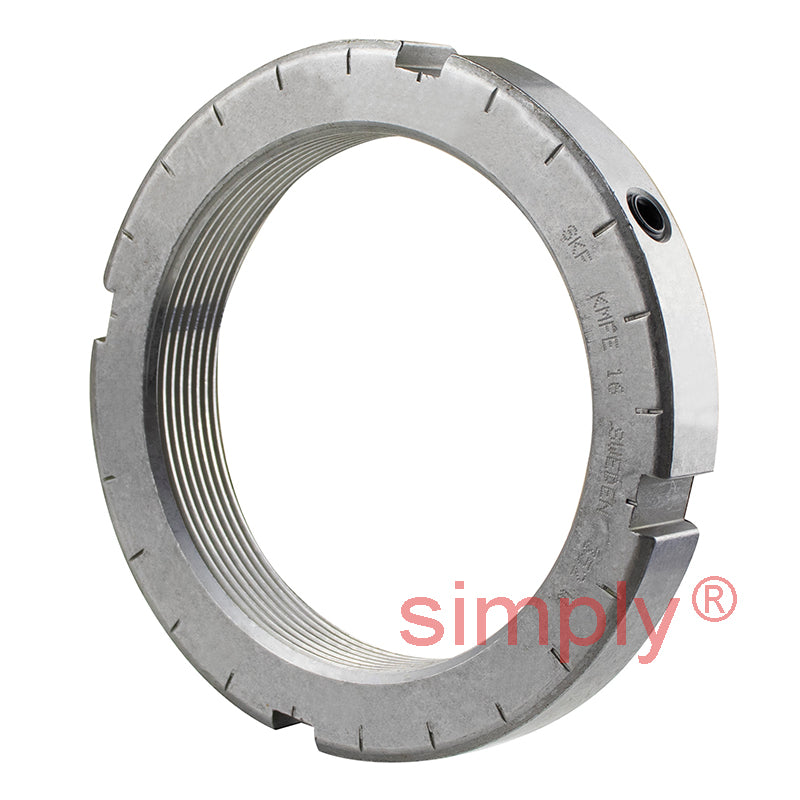

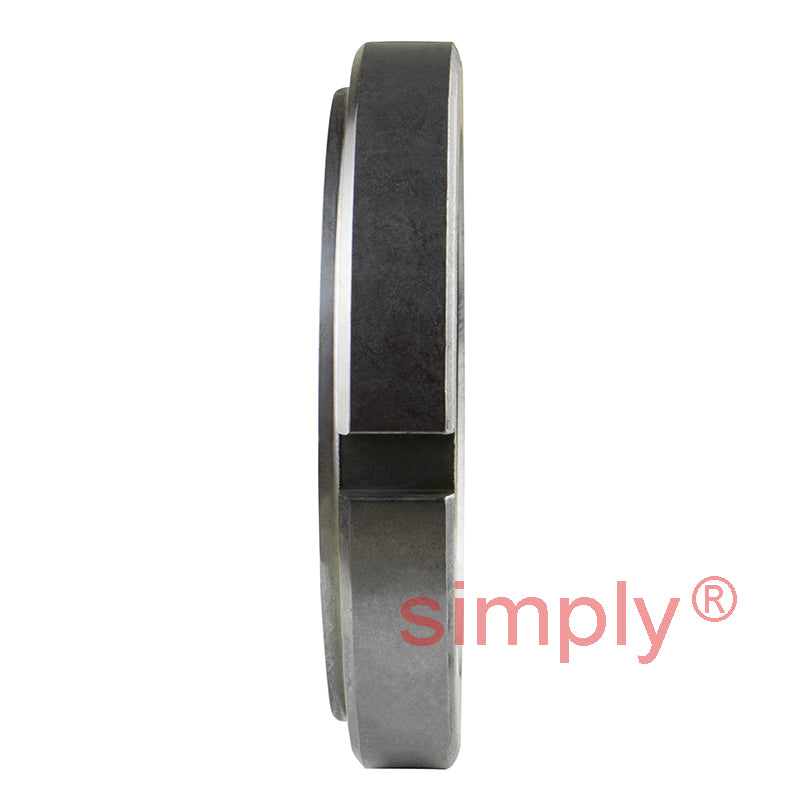

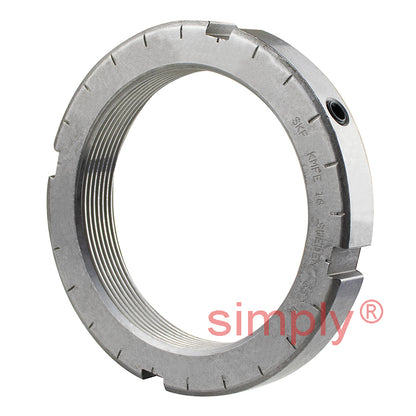

SKF KMFE16 Lock Nut with Locking Screw M80x2mm - Allow 2-3 Days
SKF KMFE16 Lock Nut with Locking Screw M80x2mm - Allow 2-3 Days
Regular price
$73.62
ex VAT
Regular price
Sale price
$73.62
ex VAT
In stock
Price Break
10+
$54.85
19+
$52.63
29+
$51.52
39+
$49.86
49+
$48.75
74+
$45.98
99+
$38.78
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M80x2
Technical
Technical
| d1 | 91.5mm |
|---|---|
| d3 | 105mm |
| B | 18mm |
| B1 | 15mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 173 kN |
| Looseing torque | 300 Nm |
| Weight | 0.42 kg |
| G | M80x2 |
| Designation | KMFE16 |
| Spanner | HN16 |
| Grub | M8 |
| Screw tightening torque | 18 Nm |
