SKU: KMFE22-SKF

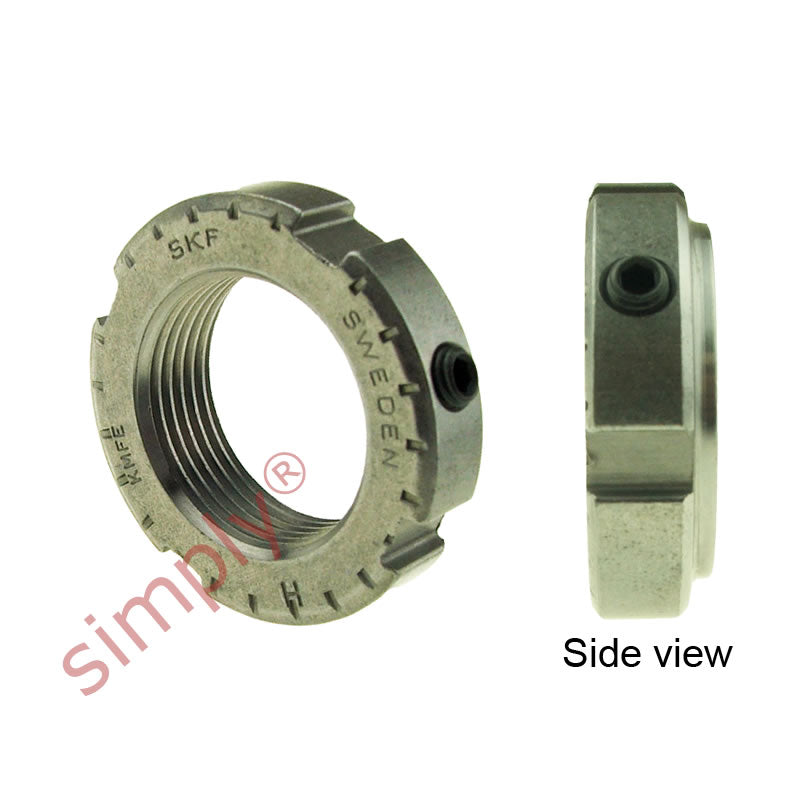

SKF KMFE22 Lock Nut with Locking Screw M110x2mm - Allow 2-3 Days
SKF KMFE22 Lock Nut with Locking Screw M110x2mm - Allow 2-3 Days
Regular price
$147.24
ex VAT
Regular price
Sale price
$147.24
ex VAT
In stock
Price Break
10+
$109.69
19+
$105.26
29+
$103.04
39+
$99.72
49+
$97.50
74+
$91.96
99+
$77.56
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M110x2
Technical
Technical
| d1 | 122mm |
|---|---|
| d3 | 145mm |
| B | 21.5mm |
| B1 | 17.5mm |
| b | 12mm |
| h | 5mm |
| Axial load capacity | 310 kN |
| Looseing torque | 410 Nm |
| Weight | 0.93 kg |
| G | M110x2 |
| Designation | KMFE22 |
| Spanner | HN22 |
| Grub | M8 |
| Screw tightening torque | 18 Nm |
