• SKF KMFE7 Lock Nut with Locking Screw M35x1.5mm
  • SKF KMFE7 Lock Nut with Locking Screw M35x1.5mm
  • SKF KMFE7 Lock Nut with Locking Screw M35x1.5mm
1 3

SKU: KMFE7-SKF

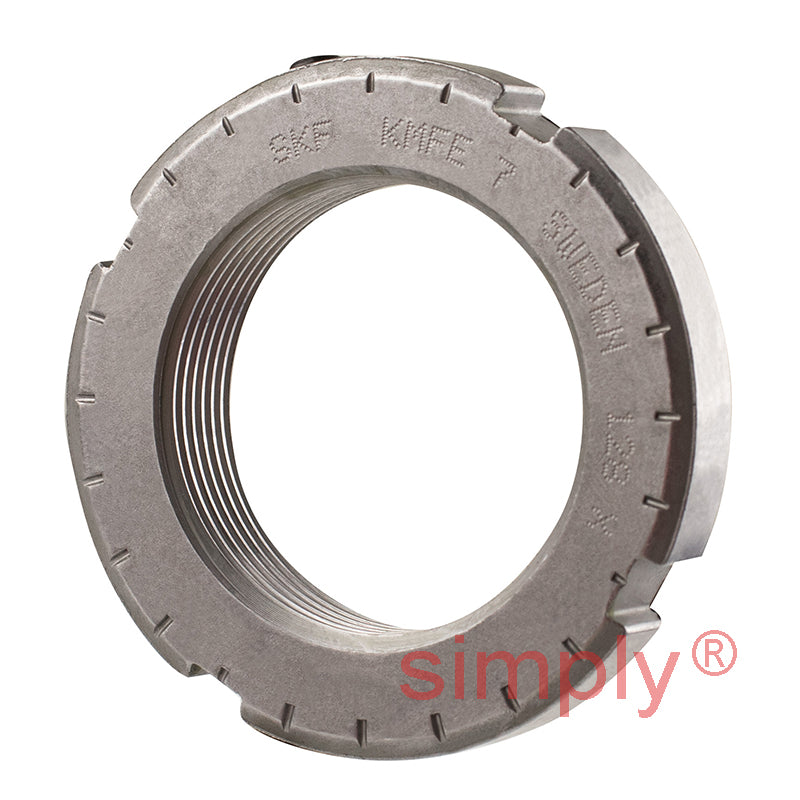

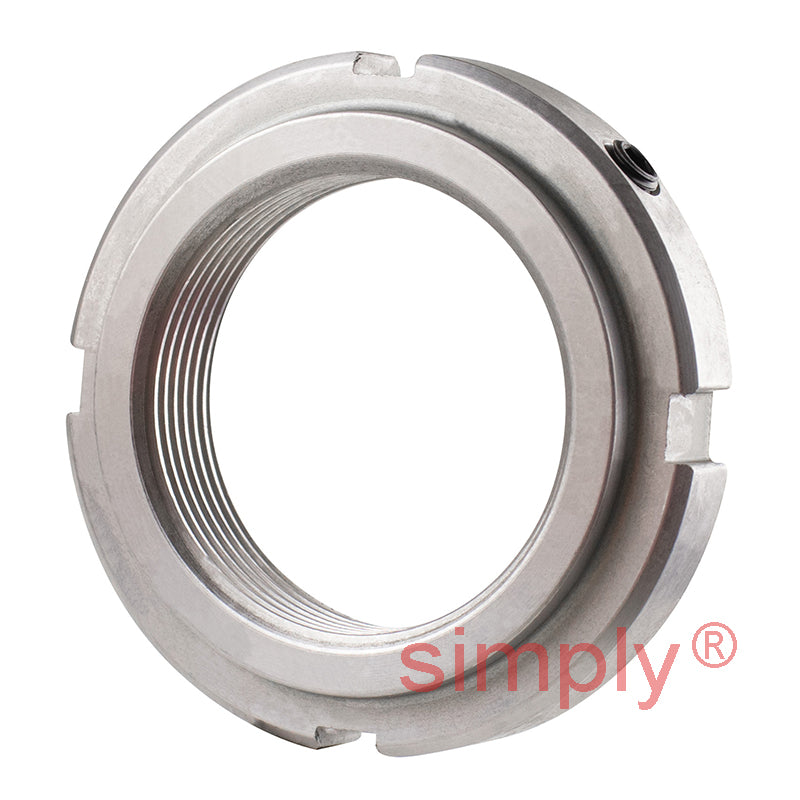

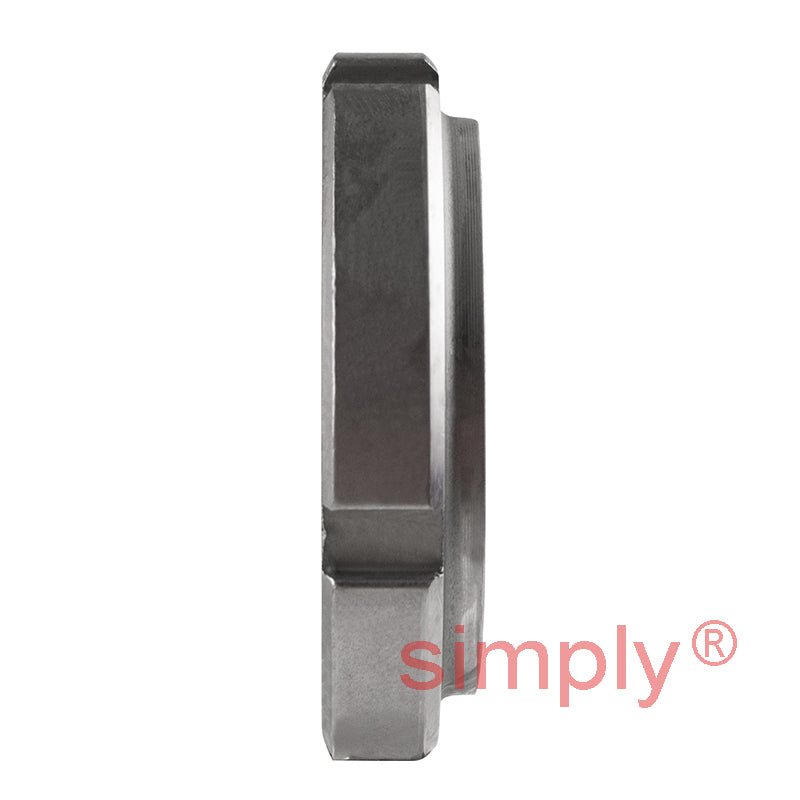

SKF KMFE7 Lock Nut with Locking Screw M35x1.5mm

SKF KMFE7 Lock Nut with Locking Screw M35x1.5mm
$47.90 ex VAT
$47.90 ex VAT
Sale Sold out

In stock

Price Break
10+ $32.08
19+ $30.28
29+ $29.92
39+ $29.56
49+ $29.20
74+ $28.84
99+ $27.04
199+ $26.68
249+ $26.32
499+ $25.96
999+ $25.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable

Brand / Quality:
SKF - High Quality
Thread Size:
M35x1.5
Technical
d1 42.5mm
d3 52mm
B 11.5mm
B1 8.5mm
b 5mm
h 2mm
Axial load capacity 50 kN
Looseing torque 49 Nm
Weight 0.08 kg
G M35x1.5
Designation KMFE7
Spanner HN7
Grub M5
Screw tightening torque 4 Nm
