• SKF KMFE8 Lock Nut with Locking Screw M40x1.5mm
  • SKF KMFE8 Lock Nut with Locking Screw M40x1.5mm
  • SKF KMFE8 Lock Nut with Locking Screw M40x1.5mm
1 3

SKU: KMFE8-SKF

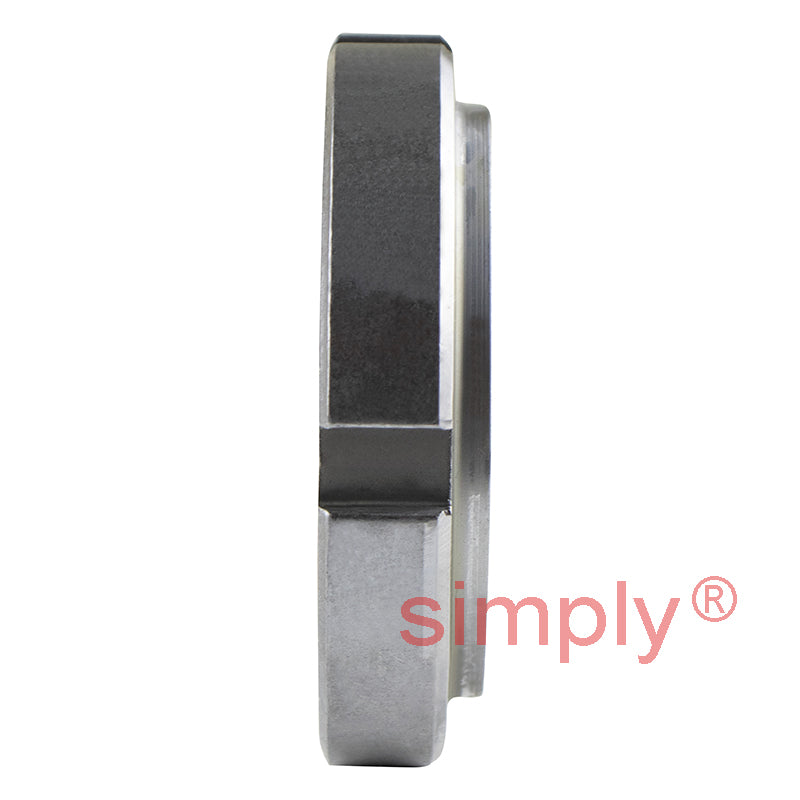

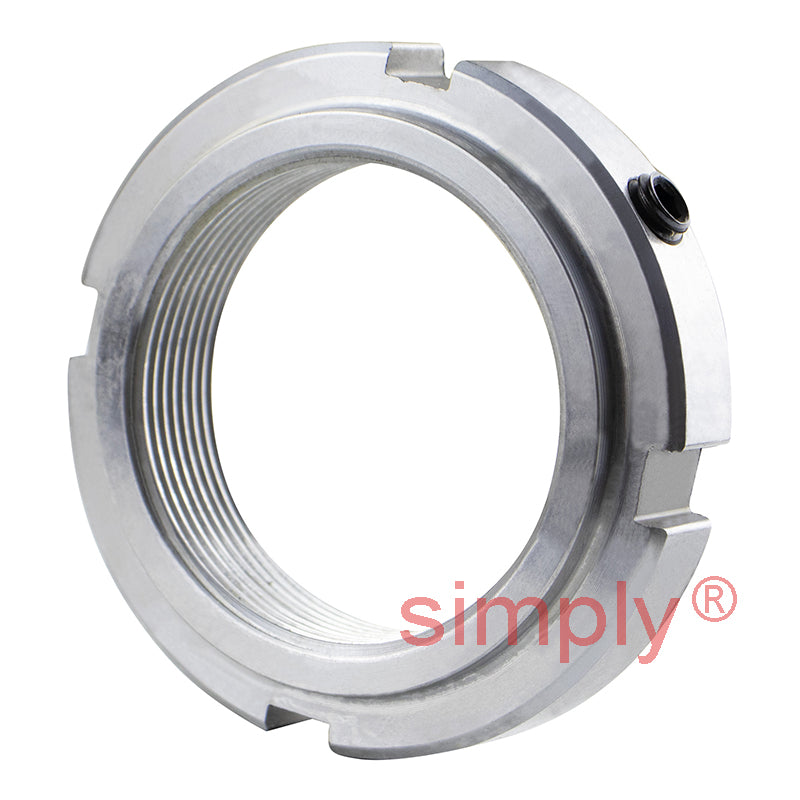

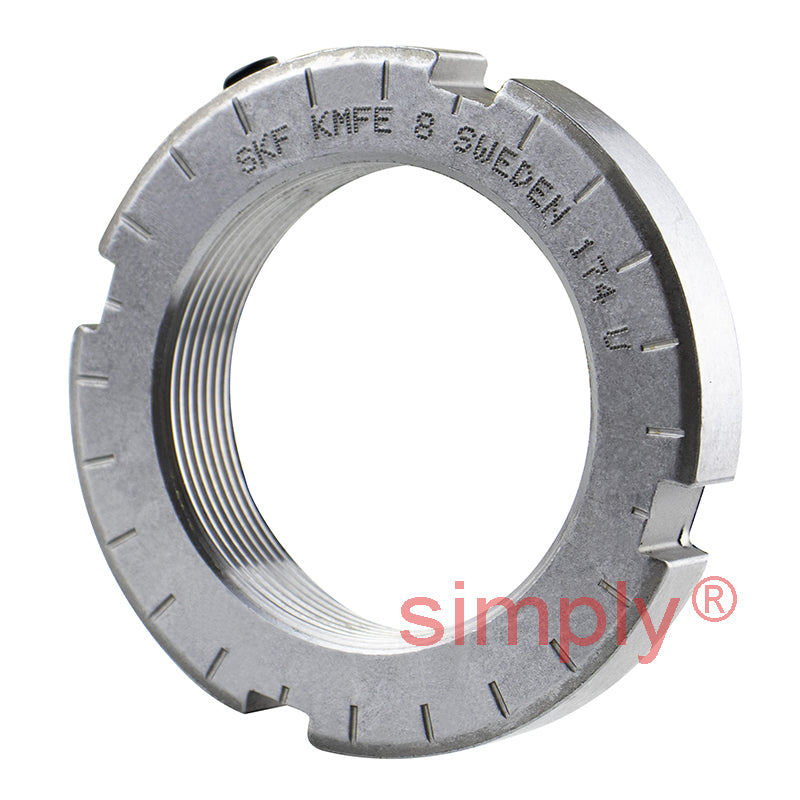

SKF KMFE8 Lock Nut with Locking Screw M40x1.5mm

SKF KMFE8 Lock Nut with Locking Screw M40x1.5mm
$50.74 ex VAT
$50.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $33.99
19+ $32.08
29+ $31.70
39+ $31.32
49+ $30.94
74+ $30.55
99+ $28.64
199+ $28.26
249+ $27.88
499+ $27.50
999+ $26.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable

Brand / Quality:
SKF - High Quality
Thread Size:
M40x1.5
Technical
d1 47mm
d3 58mm
B 13mm
B1 10mm
b 6mm
h 2.5mm
Axial load capacity 62 kN
Looseing torque 80 Nm
Weight 0.11 kg
G M40x1.5
Designation KMFE8
Spanner HN8
Grub M6
Screw tightening torque 8 Nm
