SKU: KMJ20X28X198X4S-NTN

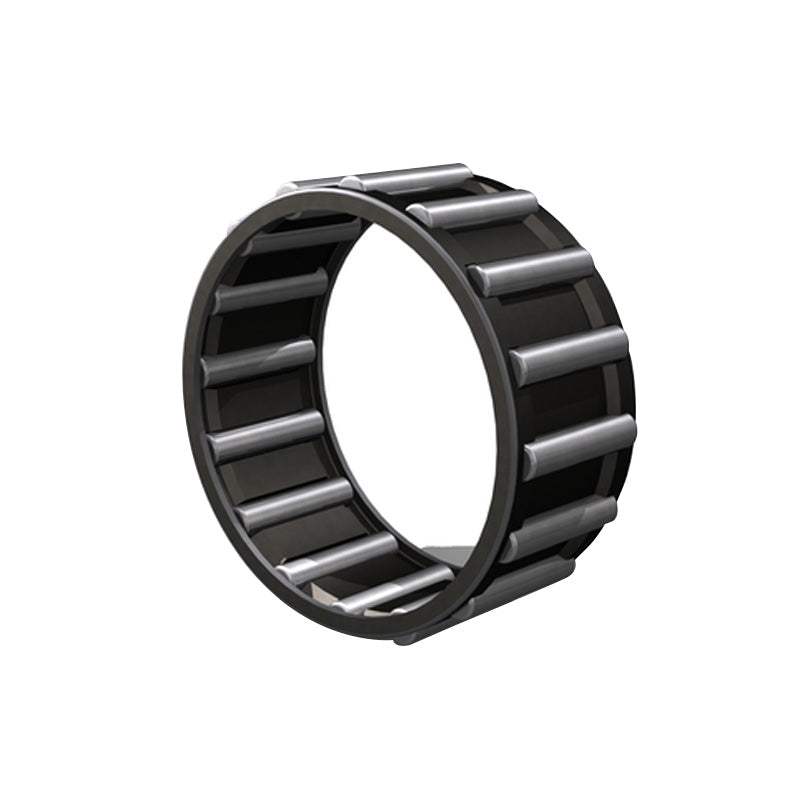

NTN KMJ20X28X198X4S Needle Roller and Cage Assembly 20x28x19.8mm - Allow 2-3 Days
NTN KMJ20X28X198X4S Needle Roller and Cage Assembly 20x28x19.8mm - Allow 2-3 Days
Regular price
$10.27
ex VAT
Regular price
Sale price
$10.27
ex VAT
In stock
Price Break
3+
$7.65
4+
$7.34
9+
$7.19
19+
$6.96
49+
$6.80
99+
$6.42
499+
$5.41
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Width:
- 19.8mm
Technical
Technical
| Fw - Inside diameter | 20mm |
|---|---|
| Ew - Outside diameter | 28mm |
| Bc - Cage width | 19.8mm |
| Cr - Dynamic load rating | 24.6 kN |
| C0r - Static load rating | 28.9 kN |
| N - Grease lubrication limit speed | 13000 tr/min |
| N - Oil lubrication limit speed | 20000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
