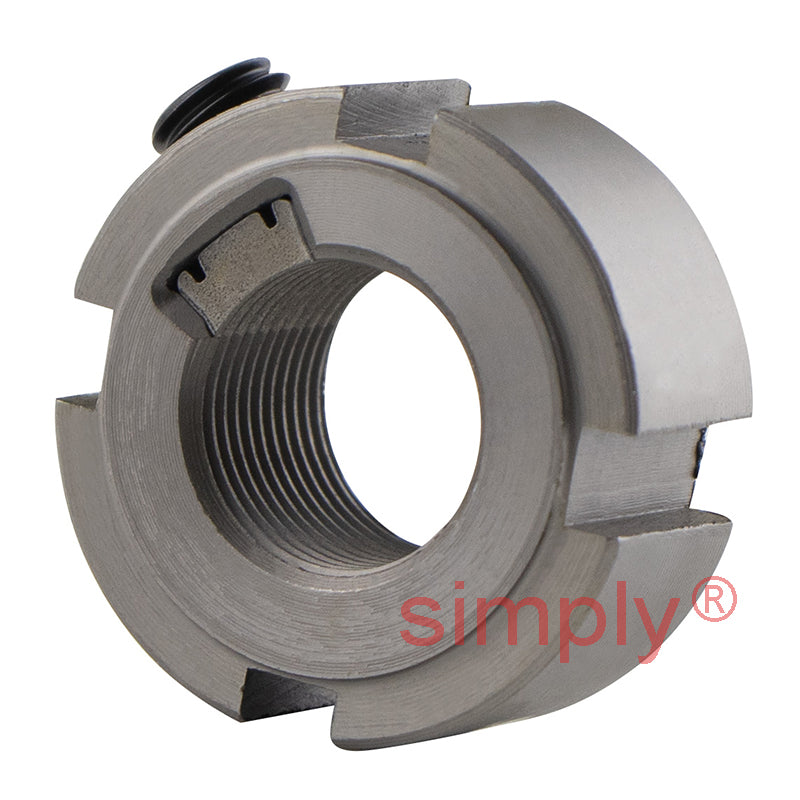

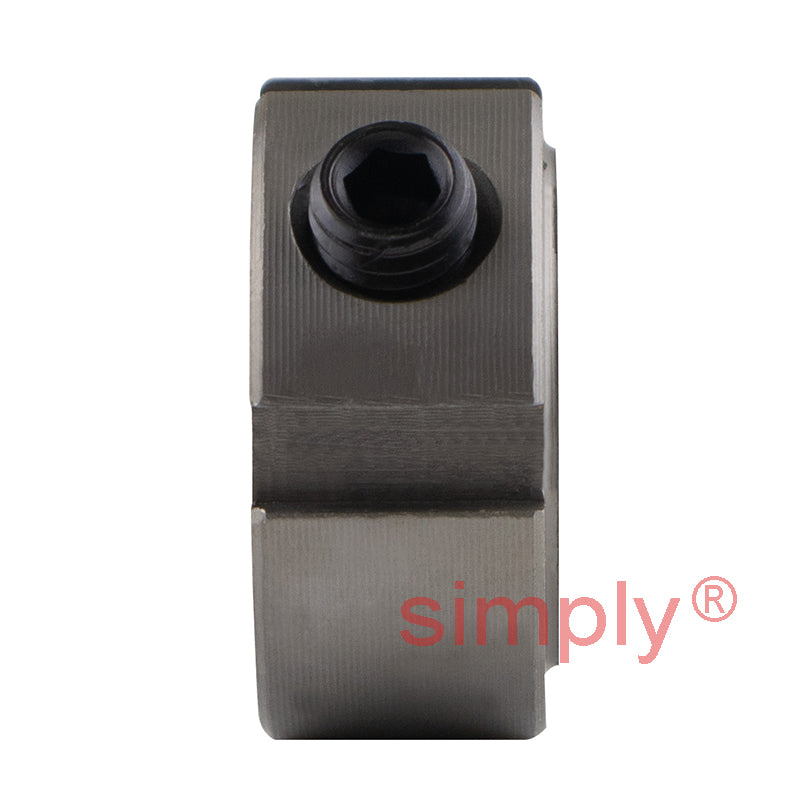

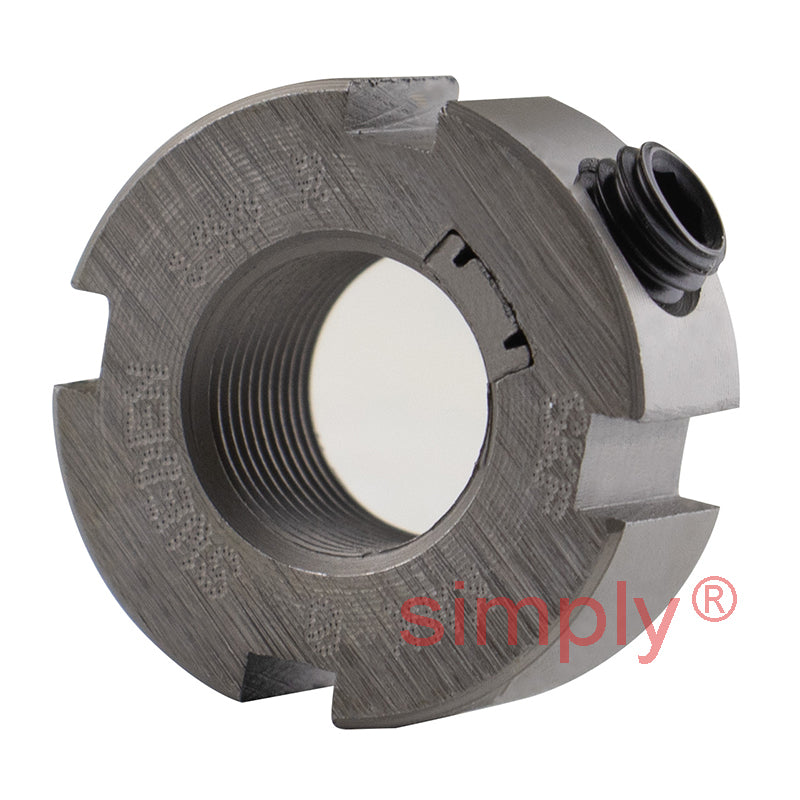

• SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
  • SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
  • SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
1 3

SKU: KMK0-SKF

SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm

SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
$70.59 ex VAT
$70.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.29
19+ $44.63
29+ $44.10
39+ $43.57
49+ $43.04
74+ $42.51
99+ $39.85
199+ $39.32
249+ $38.79
499+ $38.26
999+ $37.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M10x0.75
Technical
d1 16mm
d3 20mm
B 9mm
b 3mm
h 2mm
Axial load capacity 9.8 kN
Loosening torque 6 Nm
Weight 0.016 kg
G M10x0.75
Designation KMK0
Locking device HN0
Grub screw M5
Grub screw torque 4 Nm
