SKU: KMK1-SKF

SKF KMK1 Lock Nut with Integral Locking Device M12x1mm

SKF KMK1 Lock Nut with Integral Locking Device M12x1mm
$69.40 ex VAT
$69.40 ex VAT
Sale Sold out

In stock

Price Break
10+ $46.49
19+ $43.87
29+ $43.35
39+ $42.83
49+ $42.31
74+ $41.78
99+ $39.17
199+ $38.65
249+ $38.13
499+ $37.61
999+ $36.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

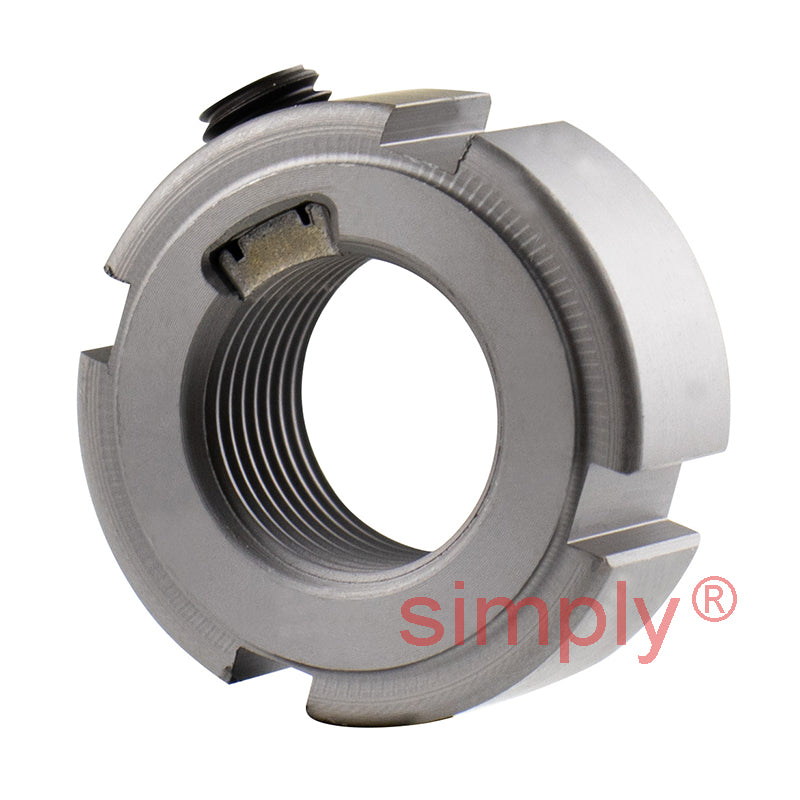

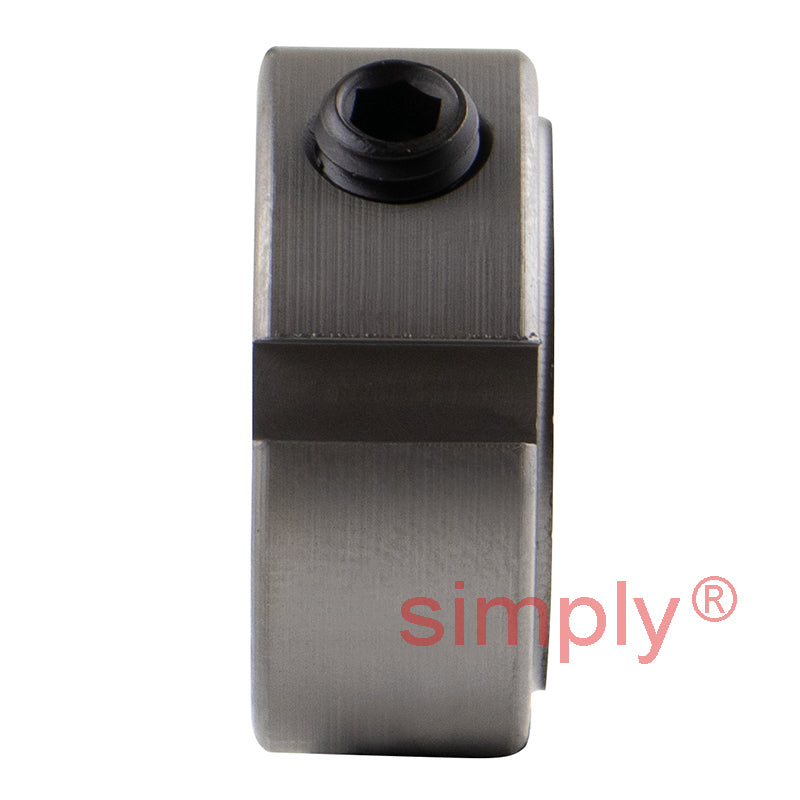

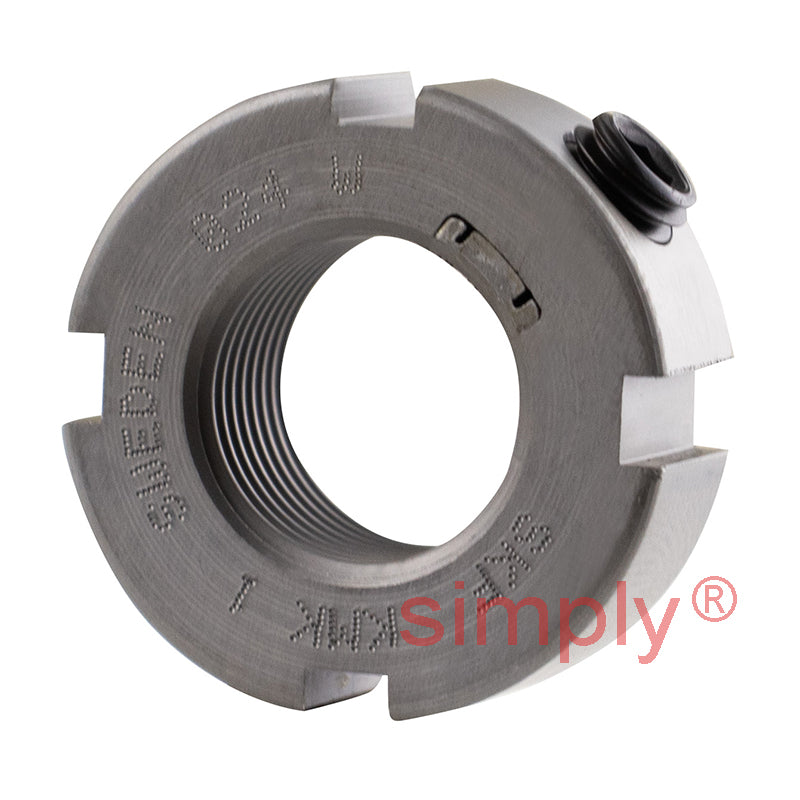

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M12x1
Technical
d1 18mm
d3 22mm
B 9mm
b 3mm
h 2mm
Axial load capacity 11.8 kN
Loosening torque 9 Nm
Weight 0.018 kg
G M12x1
Designation KMK1
Locking device HN1
Grub screw M5
Grub screw torque 4 Nm
