• SKF KMK10 Lock Nut with Integral Locking Device M50x1.5mm
  • SKF KMK10 Lock Nut with Integral Locking Device M50x1.5mm
  • SKF KMK10 Lock Nut with Integral Locking Device M50x1.5mm
1 3

SKU: KMK10-SKF

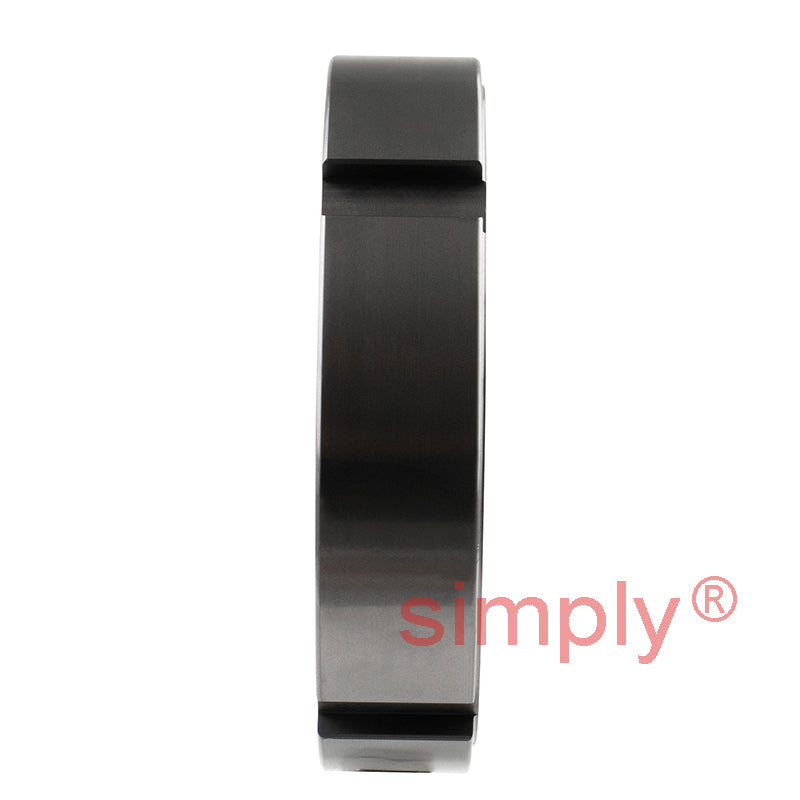

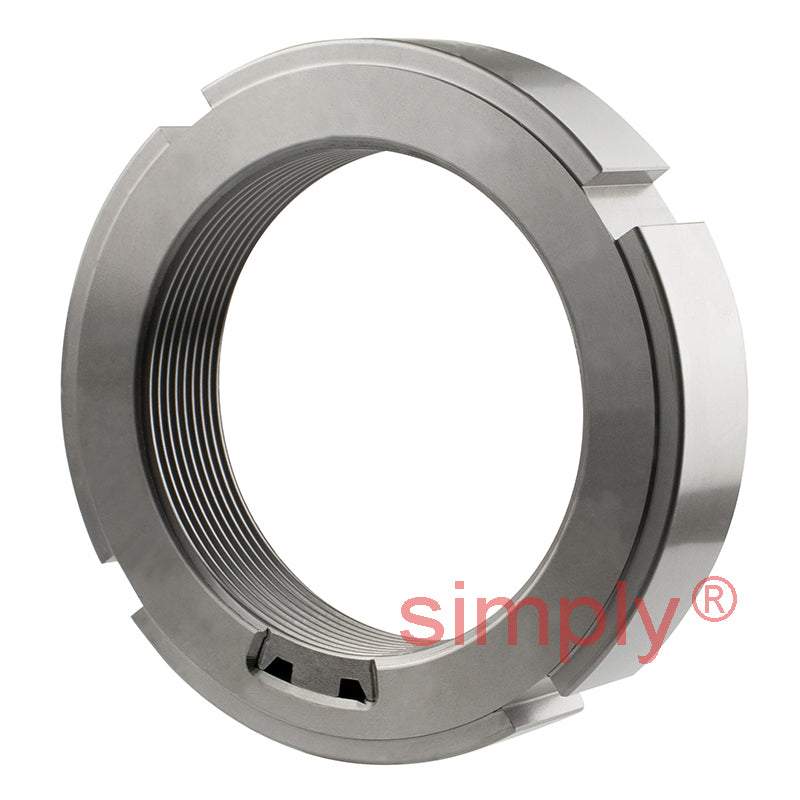

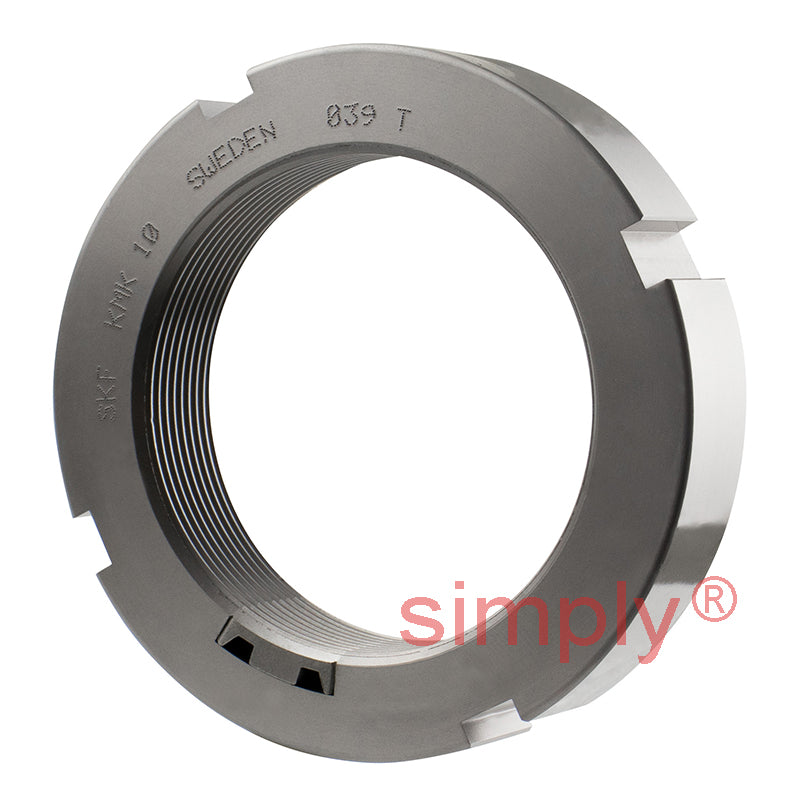

SKF KMK10 Lock Nut with Integral Locking Device M50x1.5mm

SKF KMK10 Lock Nut with Integral Locking Device M50x1.5mm
$70.77 ex VAT
$70.77 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.40
19+ $44.74
29+ $44.21
39+ $43.68
49+ $43.14
74+ $42.61
99+ $39.95
199+ $39.42
249+ $38.88
499+ $38.35
999+ $37.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M50x1.5
Technical
d1 65mm
d3 70mm
B 15mm
b 6mm
h 2.5mm
Axial load capacity 91.5 kN
Loosening torque 84 Nm
Weight 0.18 kg
G M50x1.5
Designation KMK10
Locking device HN10
Grub screw M6
Grub screw torque 8 Nm
