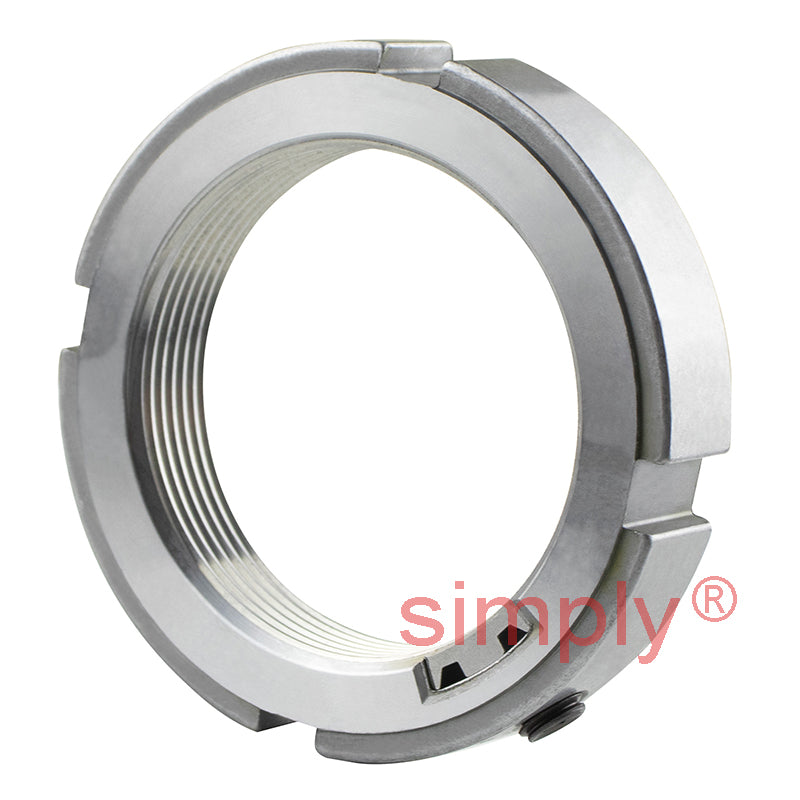

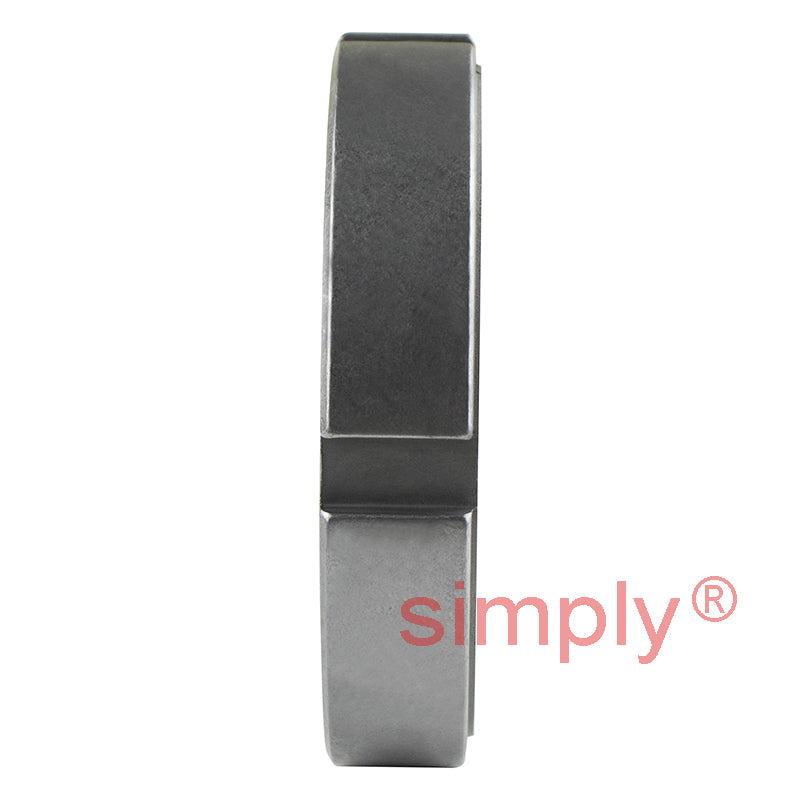

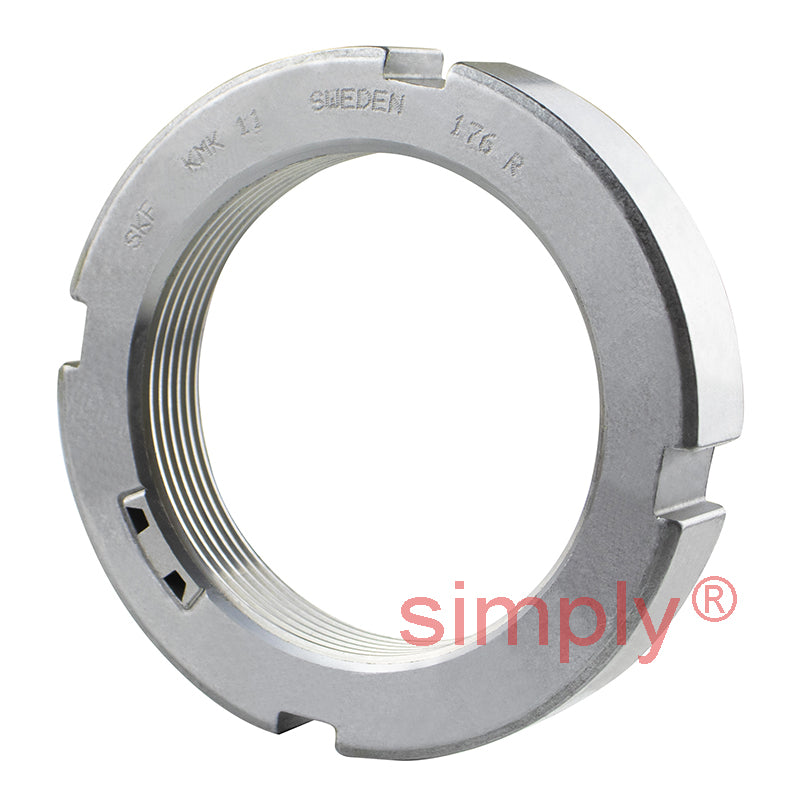

• SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
  • SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
  • SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
1 3

SKU: KMK11-SKF

SKF KMK11 Lock Nut with Integral Locking Device M55x2mm

SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
$75.22 ex VAT
$75.22 ex VAT
Sale Sold out

In stock

Price Break
10+ $50.38
19+ $47.55
29+ $46.98
39+ $46.42
49+ $45.85
74+ $45.29
99+ $42.46
199+ $41.89
249+ $41.32
499+ $40.76
999+ $39.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M55x2
Technical
d1 69mm
d3 75mm
B 13mm
b 7mm
h 3mm
Axial load capacity 91.5 kN
Loosening torque 172 Nm
Weight 0.19 kg
G M55x2
Designation KMK11
Locking device HN11
Grub screw M8
Grub screw torque 18 Nm
