• SKF KMK13 Lock Nut with Integral Locking Device M65x2mm
  • SKF KMK13 Lock Nut with Integral Locking Device M65x2mm
  • SKF KMK13 Lock Nut with Integral Locking Device M65x2mm
1 3

SKU: KMK13-SKF

SKF KMK13 Lock Nut with Integral Locking Device M65x2mm

SKF KMK13 Lock Nut with Integral Locking Device M65x2mm
$106.07 ex VAT
$106.07 ex VAT
Sale Sold out

In stock

Price Break
10+ $71.05
19+ $67.06
29+ $66.26
39+ $65.46
49+ $64.66
74+ $63.86
99+ $59.87
199+ $59.07
249+ $58.27
499+ $57.48
999+ $55.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

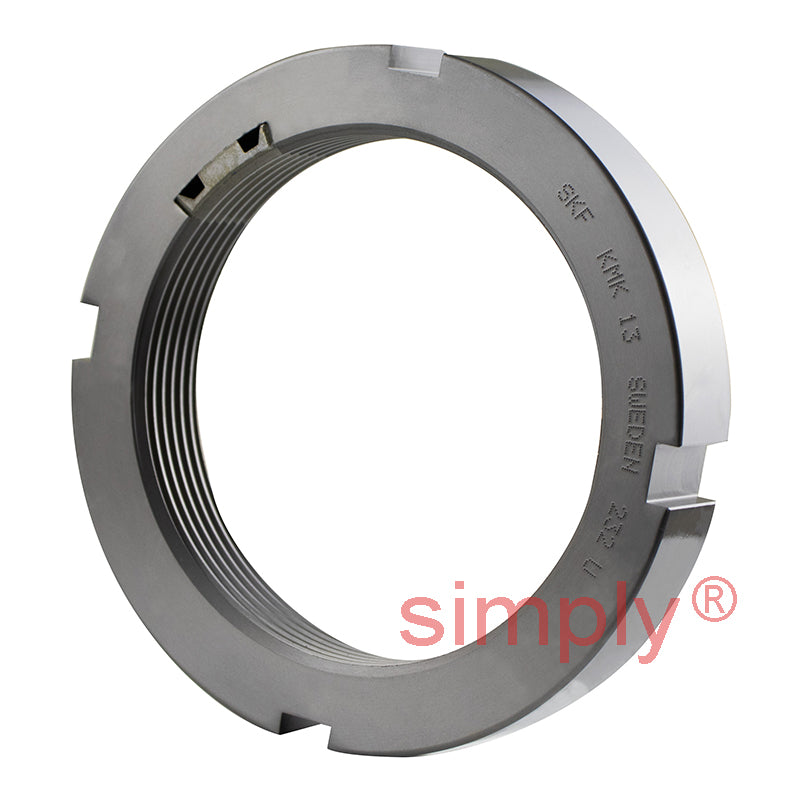

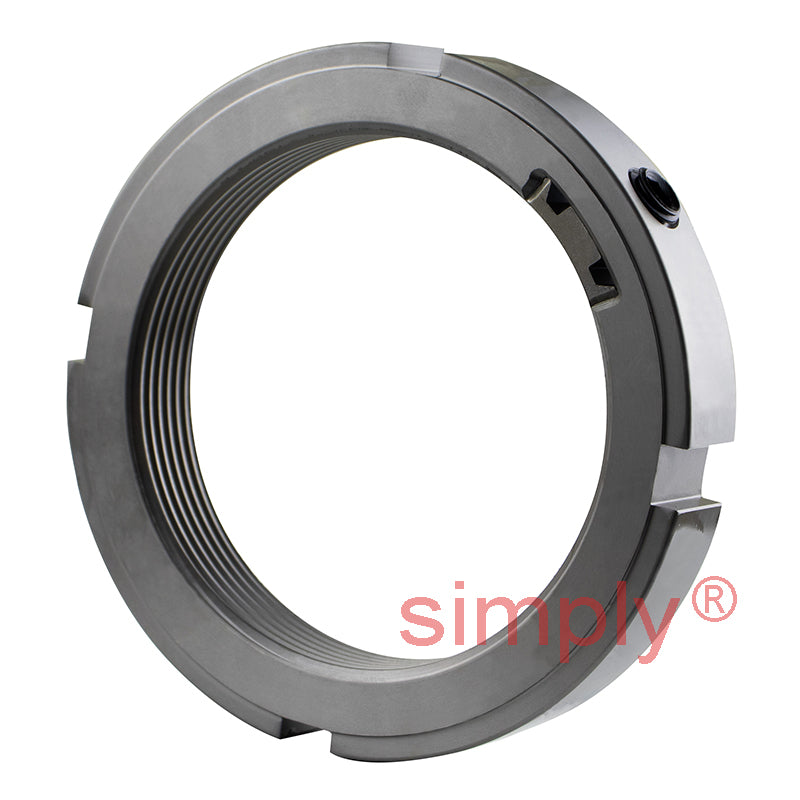

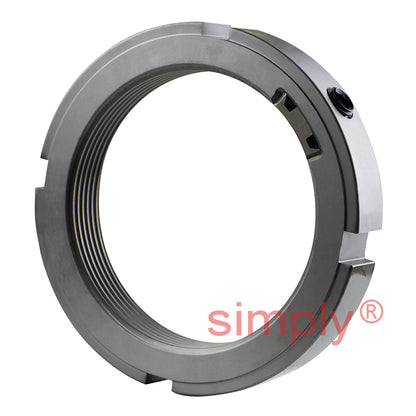

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M65x2
Technical
d1 79mm
d3 85mm
B 14mm
b 7mm
h 3mm
Axial load capacity 108 kN
Loosening torque 203 Nm
Weight 0.24 kg
G M65x2
Designation KMK13
Locking device HN13
Grub screw M8
Grub screw torque 18 Nm
