SKU: KMK14-SKF

SKF KMK14 Lock Nut with Integral Locking Device M70x2mm

SKF KMK14 Lock Nut with Integral Locking Device M70x2mm
$112.27 ex VAT
$112.27 ex VAT
Sale Sold out

In stock

Price Break
10+ $75.21
19+ $70.98
29+ $70.14
39+ $69.29
49+ $68.45
74+ $67.60
99+ $63.38
199+ $62.53
249+ $61.69
499+ $60.84
999+ $59.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

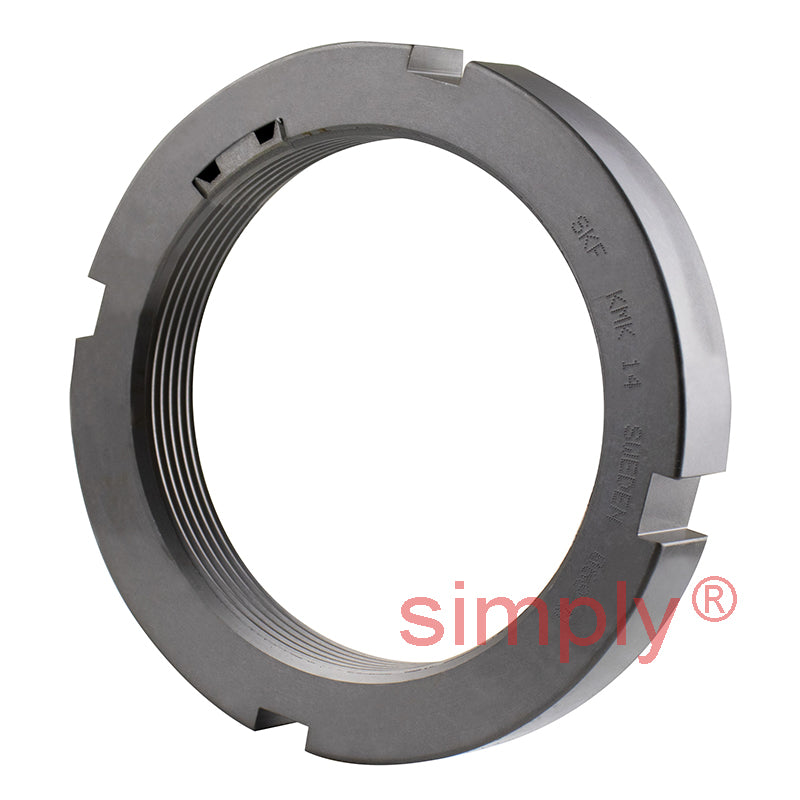

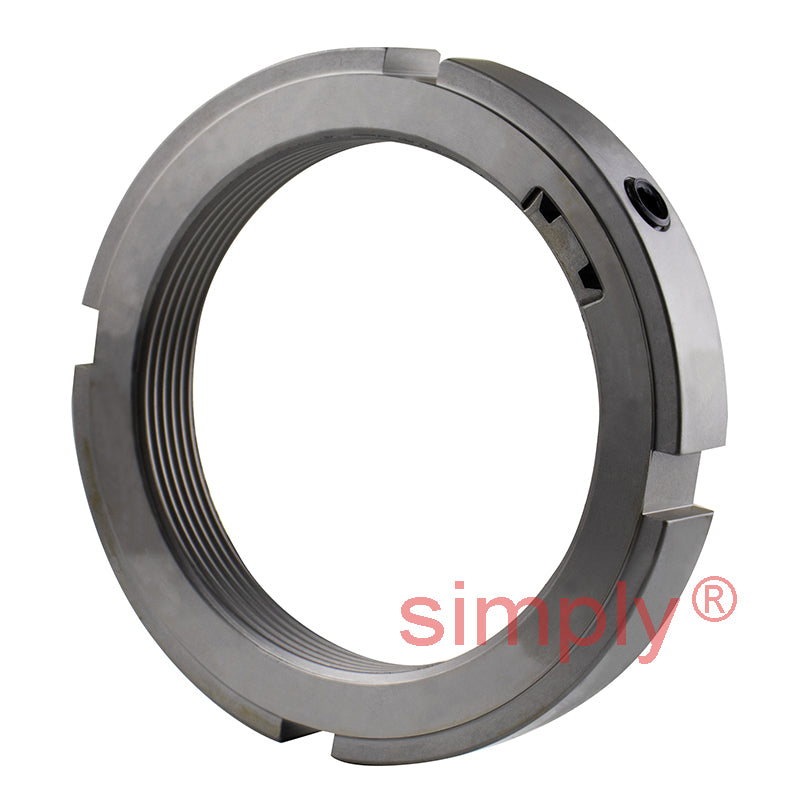

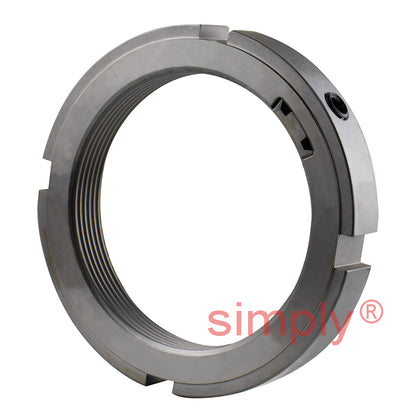

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M70x2
Technical
d1 85mm
d3 92mm
B 14mm
b 8mm
h 3.5mm
Axial load capacity 118 kN
Loosening torque 219 Nm
Weight 0.28 kg
G M70x2
Designation KMK14
Locking device HN14
Grub screw M8
Grub screw torque 18 Nm
