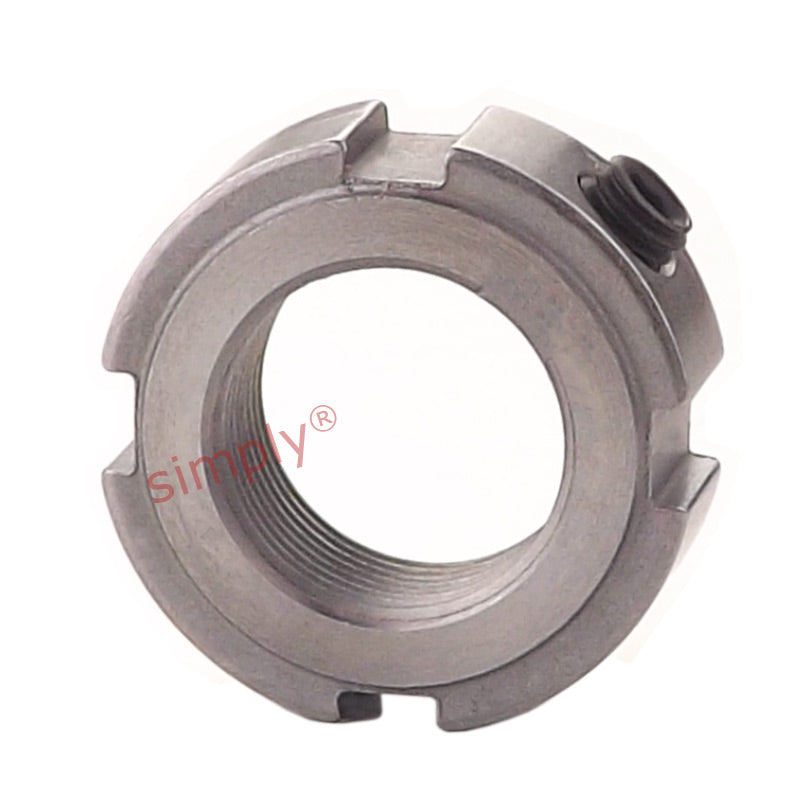

• SKF KMK16 Lock Nut with Integral Locking Device M80x2mm
1 1

SKU: KMK16-SKF

SKF KMK16 Lock Nut with Integral Locking Device M80x2mm

SKF KMK16 Lock Nut with Integral Locking Device M80x2mm
$125.35 ex VAT
$125.35 ex VAT
Sale Sold out

In stock

Price Break
10+ $83.96
19+ $79.24
29+ $78.30
39+ $77.35
49+ $76.41
74+ $75.47
99+ $70.75
199+ $69.81
249+ $68.86
499+ $67.92
999+ $66.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M80x2
Technical
d1 98mm
d3 105mm
B 18mm
b 8mm
h 3.5mm
Axial load capacity 173 kN
Loosening torque 378 Nm
Weight 0.45 kg
G M80x2
Designation KMK16
Locking device HN16
Grub screw M8
Grub screw torque 18 Nm
