SKU: KMK5-SKF

SKF KMK5 Lock Nut with Integral Locking Device M25x1.5mm

SKF KMK5 Lock Nut with Integral Locking Device M25x1.5mm
$50.86 ex VAT
$50.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $34.07
19+ $32.16
29+ $31.77
39+ $31.39
49+ $31.01
74+ $30.62
99+ $28.71
199+ $28.33
249+ $27.94
499+ $27.56
999+ $26.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

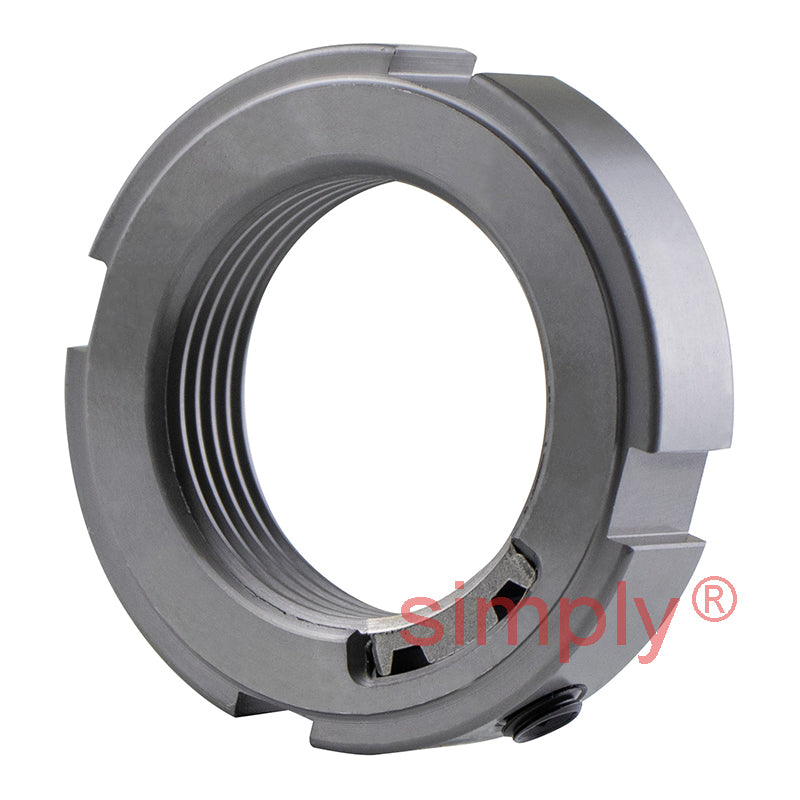

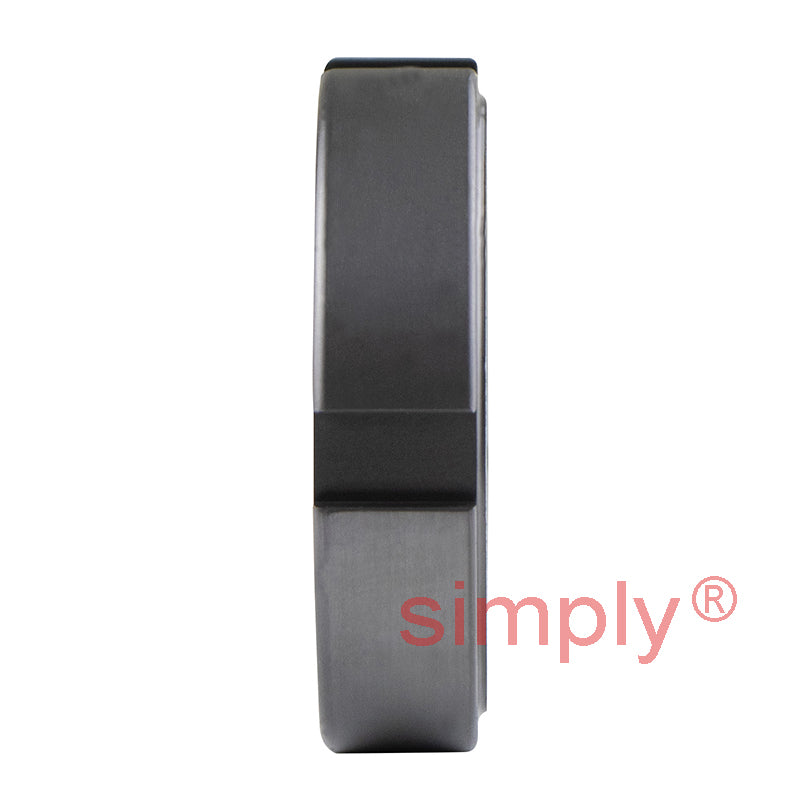

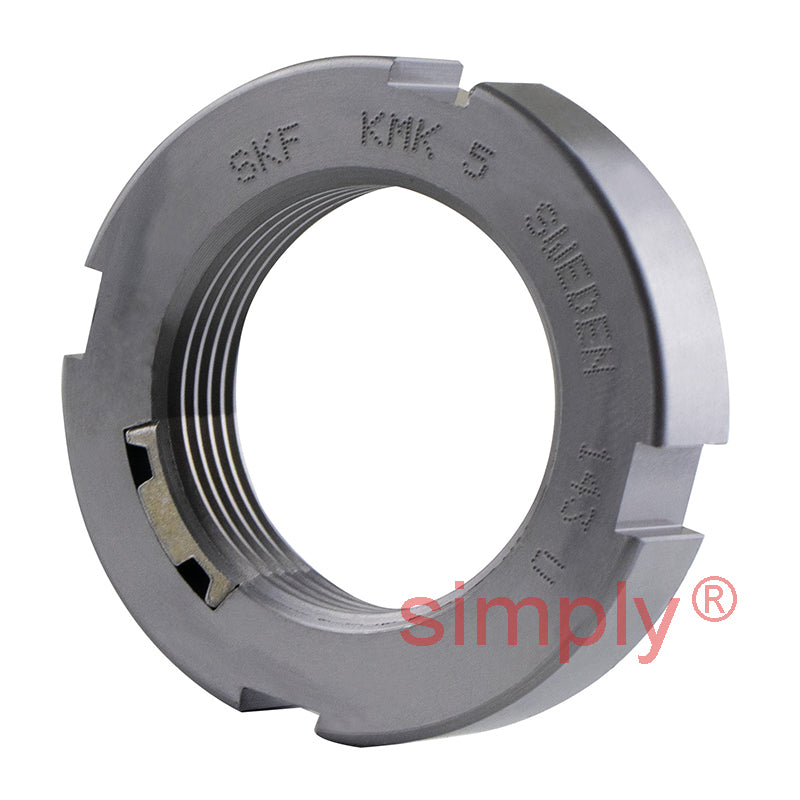

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M25x1.5
Technical
d1 34mm
d3 38mm
B 9mm
b 5mm
h 2mm
Axial load capacity 31.5 kN
Loosening torque 29 Nm
Weight 0.03 kg
G M25x1.5
Designation KMK5
Locking device HN5
Grub screw M5
Grub screw torque 4 Nm
