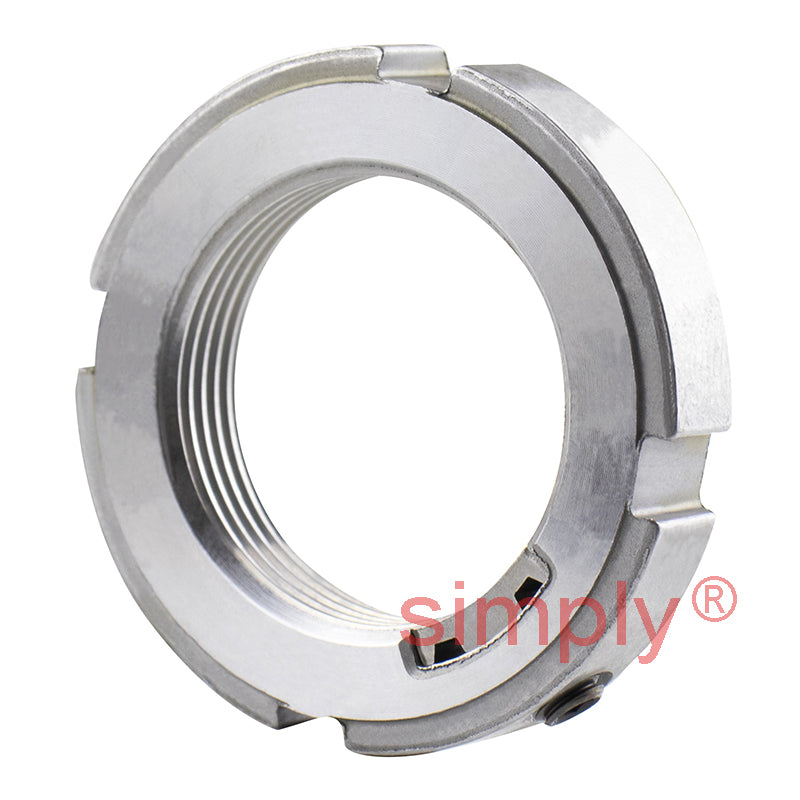

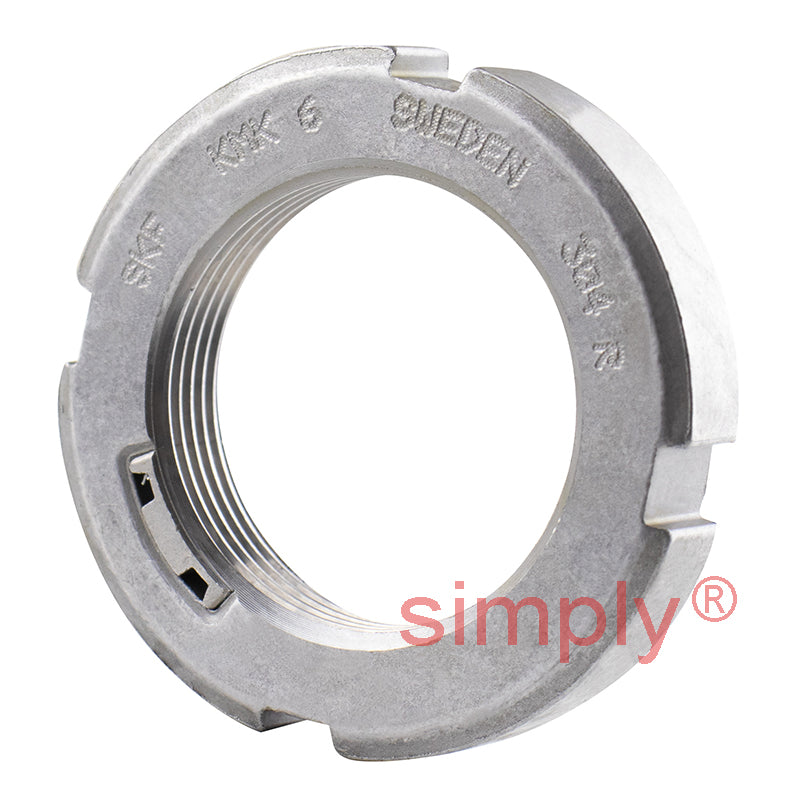

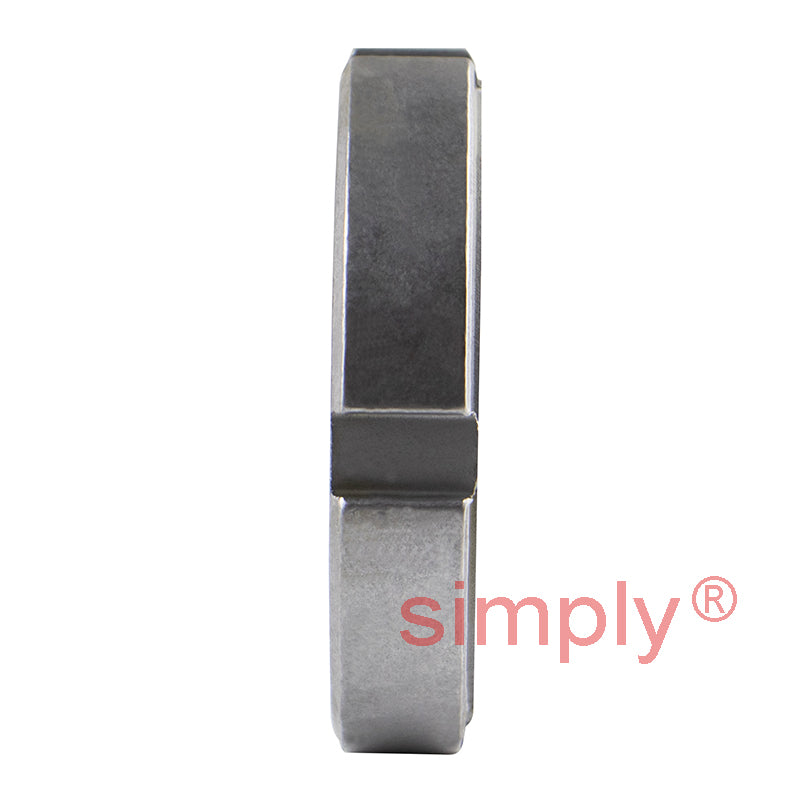

• SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
  • SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
  • SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
1 3

SKU: KMK6-SKF

SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm

SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
$53.44 ex VAT
$53.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $35.80
19+ $33.79
29+ $33.38
39+ $32.98
49+ $32.58
74+ $32.18
99+ $30.17
199+ $29.76
249+ $29.36
499+ $28.96
999+ $28.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M30x1.5
Technical
d1 41mm
d3 45mm
B 9mm
b 5mm
h 2mm
Axial load capacity 36.5 kN
Loosening torque 35 Nm
Weight 0.06 kg
G M30x1.5
Designation KMK6
Locking device HN6
Grub screw M5
Grub screw torque 4 Nm
