SKU: KMK7-SKF

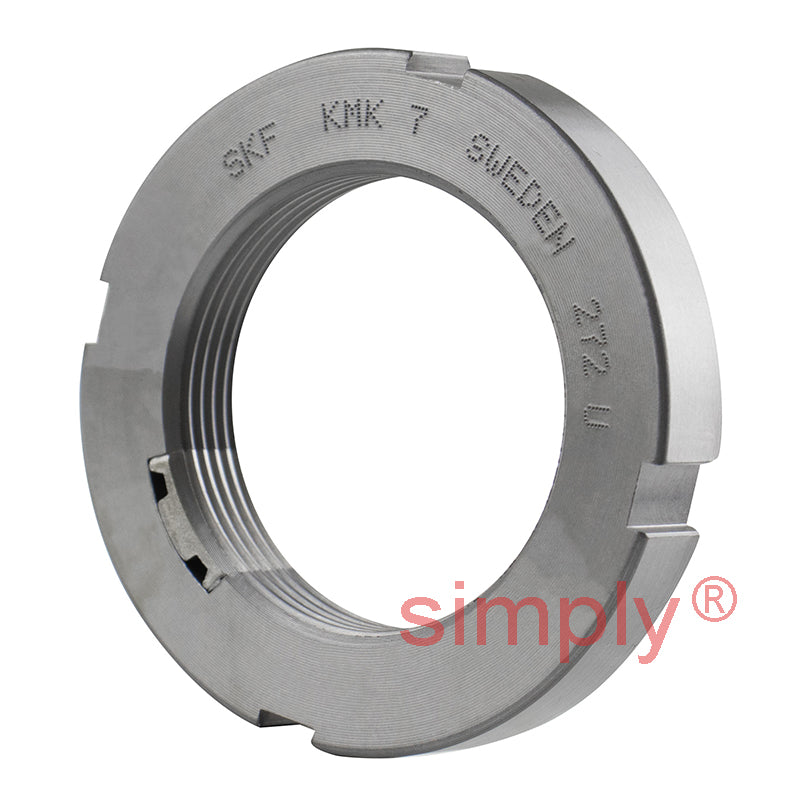

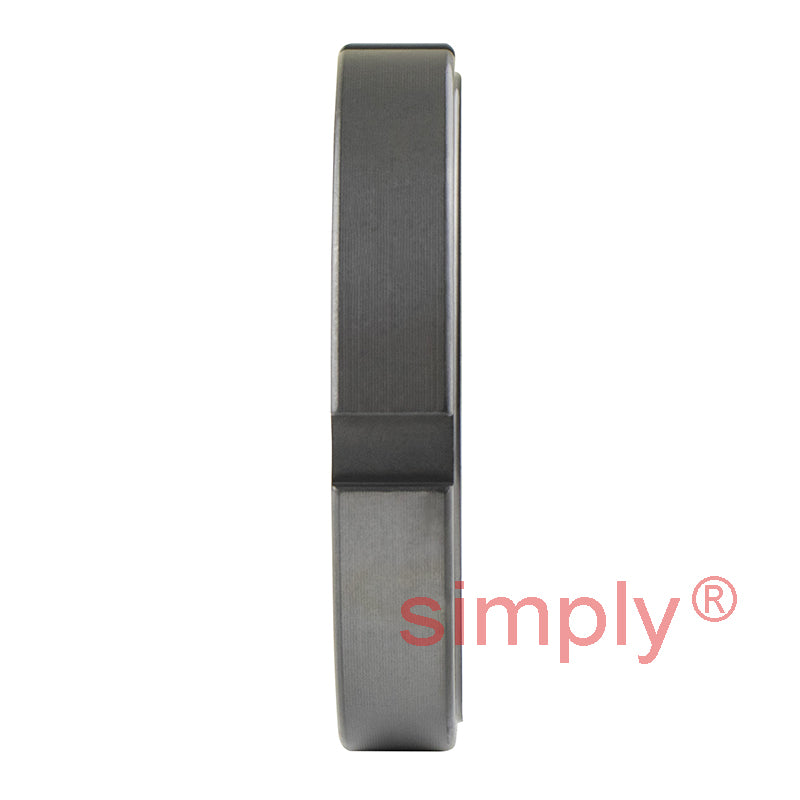

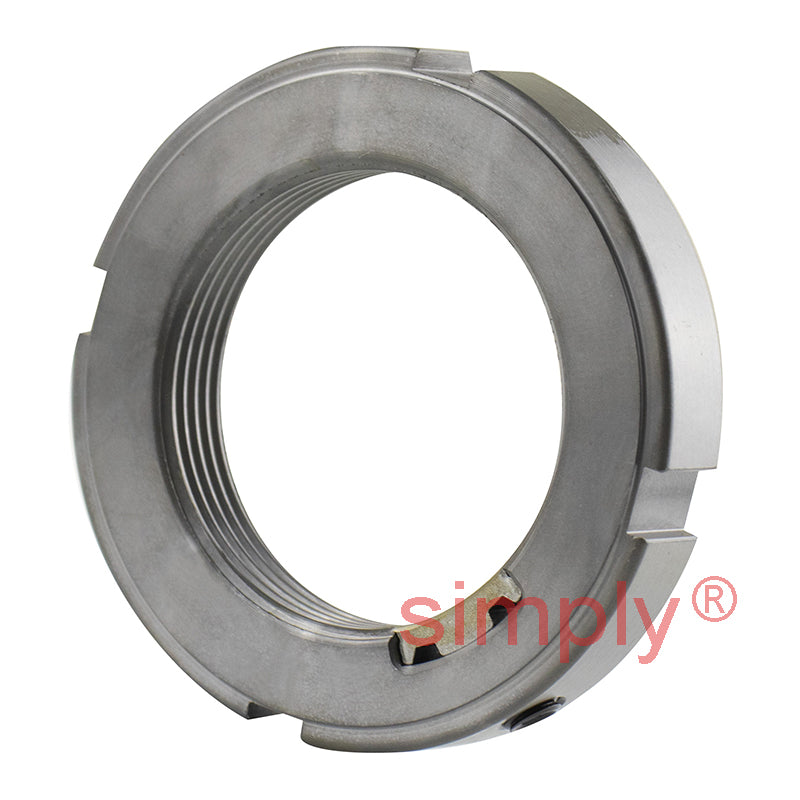

SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm

SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
$57.40 ex VAT
$57.40 ex VAT
Sale Sold out

In stock

Price Break
10+ $38.45
19+ $36.29
29+ $35.86
39+ $35.42
49+ $34.99
74+ $34.56
99+ $32.40
199+ $31.97
249+ $31.54
499+ $31.10
999+ $30.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M35x1.5
Technical
d1 48mm
d3 52mm
B 9mm
b 5mm
h 2mm
Axial load capacity 50 kN
Loosening torque 40 Nm
Weight 0.07 kg
G M35x1.5
Designation KMK7
Locking device HN7
Grub screw M5
Grub screw torque 4 Nm
