SKU: KMT11-SKF

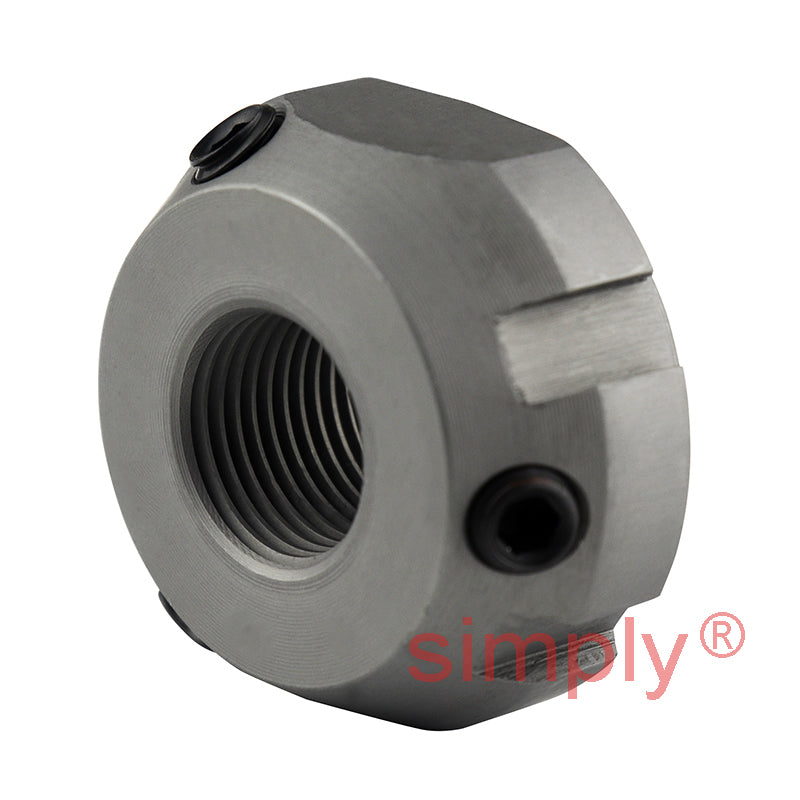

SKF KMT11 Precision Lock Nut with Locking Pins M55x2mm

Name: SKF KMT11 Precision Lock Nut with Locking Pins M55x2mm
Brand: SKF
SKU: KMT11-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M55x2

Technical

d1	74mm
d2	85mm
d3	78mm
d4	58mm
B	25mm
b	7mm
h	3mm
M	80mm
Axial load capacity	340 kN
Loosening torque	225 Nm
Weight	0.54 kg
G	M55x2
Spanner	HN12/13
Grub screw	M8
Screw torque	18 Nm
