SKU: KMT12-SKF

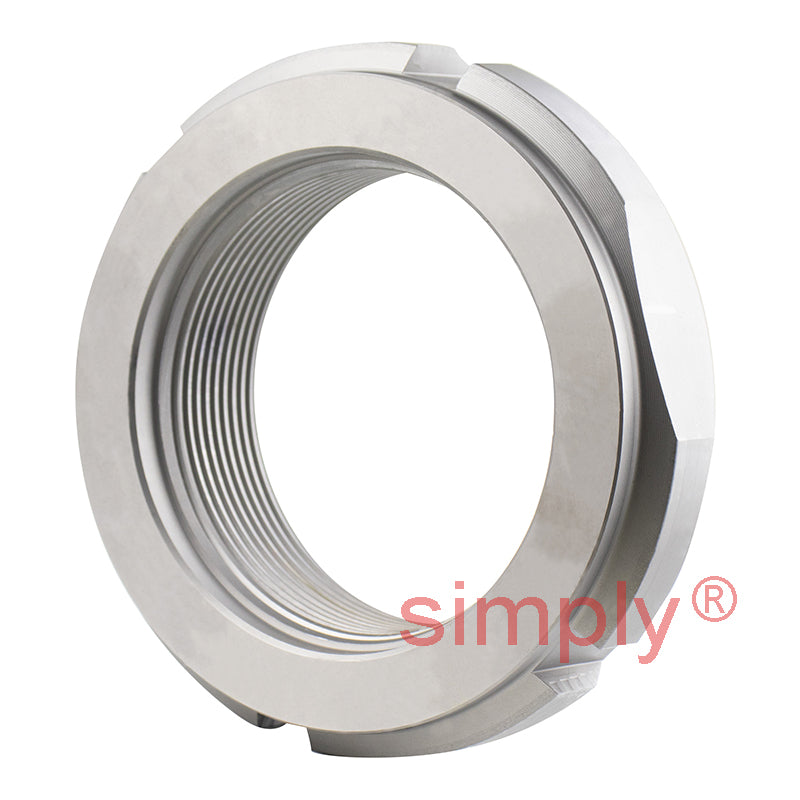

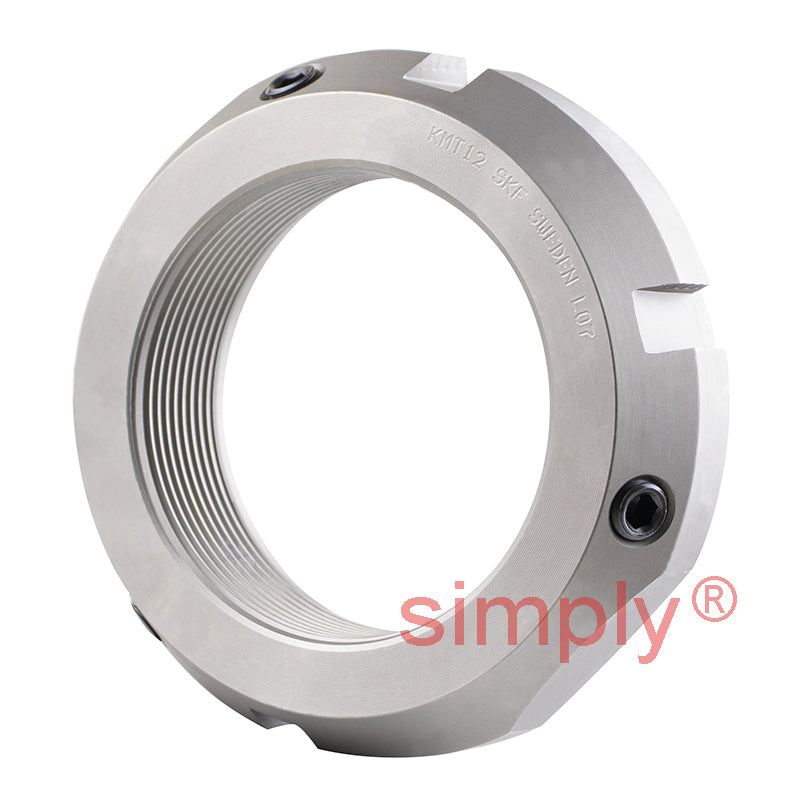

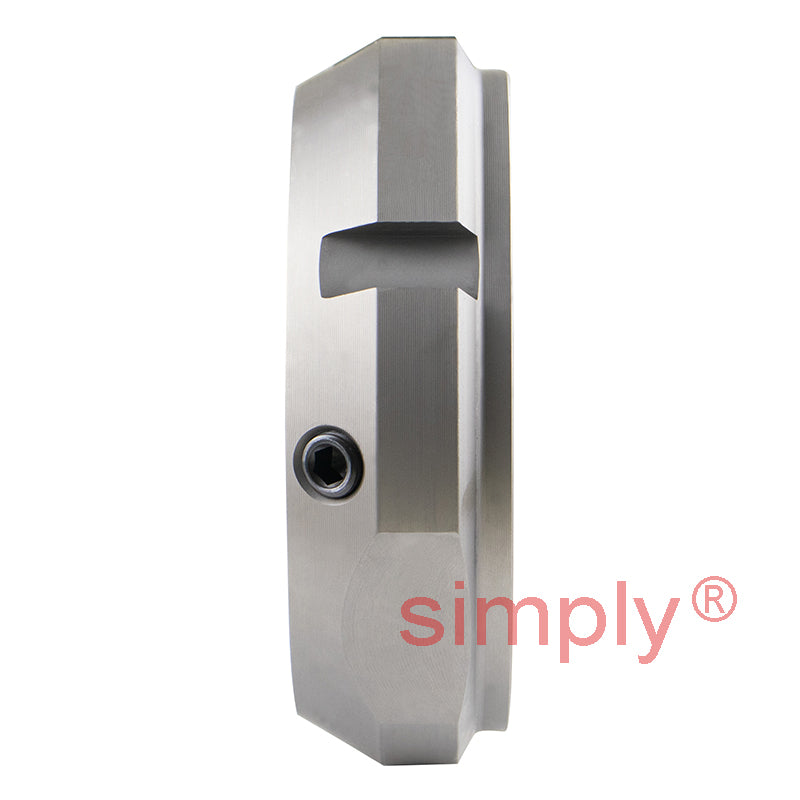

SKF KMT12 Precision Lock Nut with Locking Pins M60x2mm

SKF KMT12 Precision Lock Nut with Locking Pins M60x2mm
$145.90 ex VAT
$145.90 ex VAT
Sale Sold out

In stock

Price Break
10+ $97.73
19+ $92.24
29+ $91.14
39+ $90.04
49+ $88.95
74+ $87.85
99+ $82.36
199+ $81.26
249+ $80.16
499+ $79.06
999+ $76.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M60x2
Technical
d1 78mm
d2 90mm
d3 82mm
d4 62mm
B 26mm
b 8mm
h 3.5mm
M 85mm
Axial load capacity 380 kN
Loosening torque 245 Nm
Weight 0.61 kg
G M60x2
Spanner HN13
Grub screw M8
Screw torque 18 Nm
