SKU: KMT14-SKF

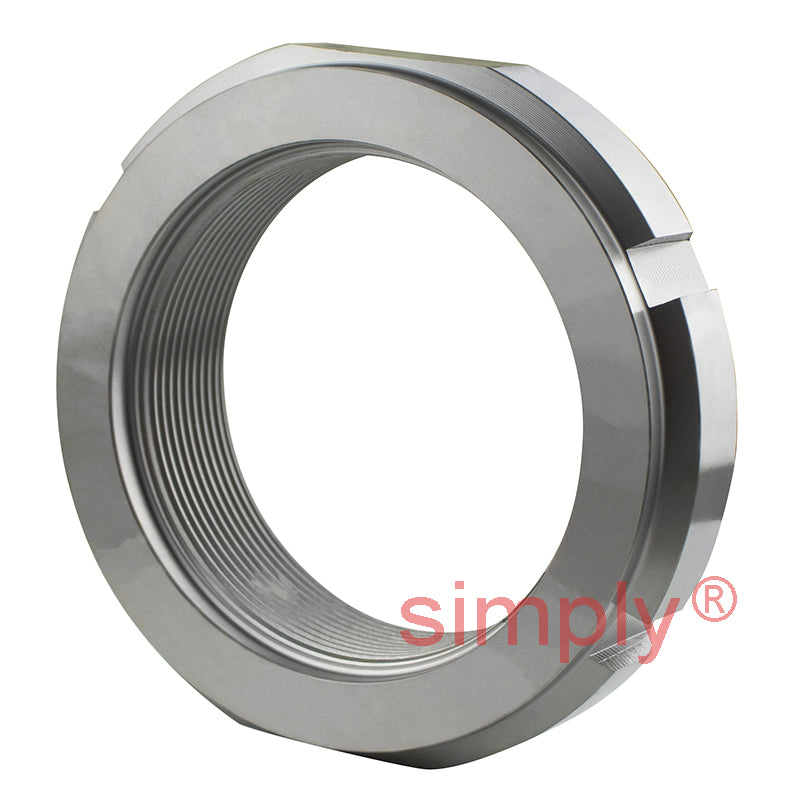

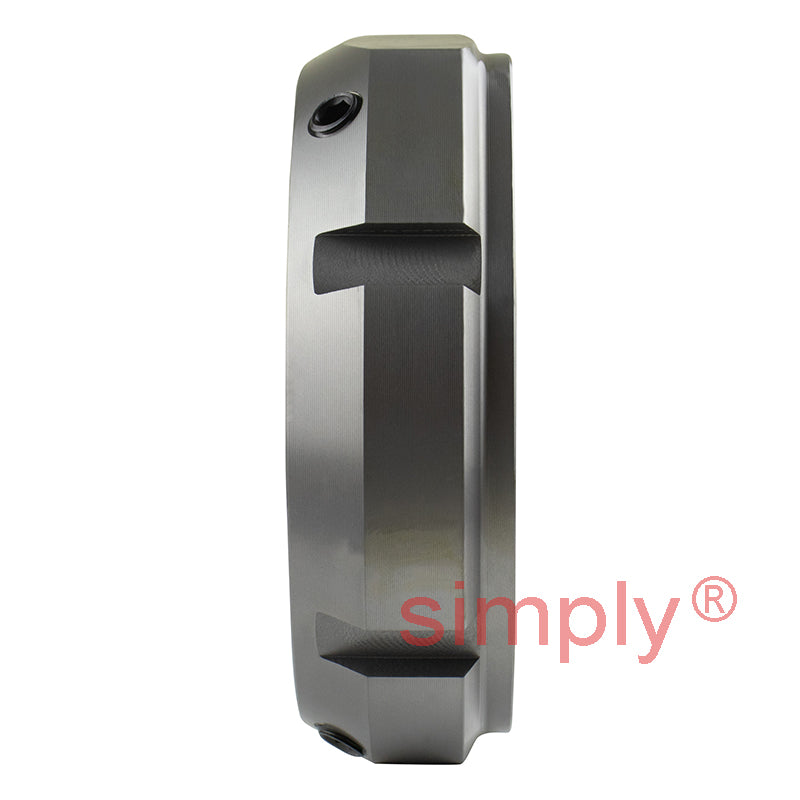

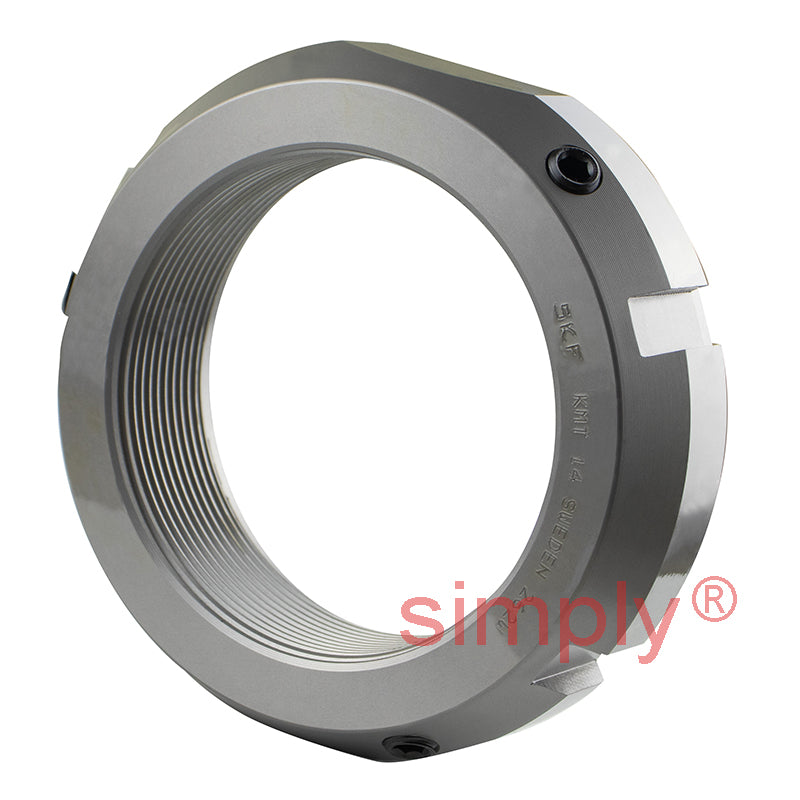

SKF KMT14 Precision Lock Nut with Locking Pins M70x2mm

SKF KMT14 Precision Lock Nut with Locking Pins M70x2mm
$177.42 ex VAT
$177.42 ex VAT
Sale Sold out

In stock

Price Break
10+ $118.84
19+ $112.17
29+ $110.83
39+ $109.50
49+ $108.16
74+ $106.83
99+ $100.15
199+ $98.81
249+ $97.48
499+ $96.14
999+ $93.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M70x2
Technical
d1 88mm
d2 100mm
d3 92mm
d4 72mm
B 28mm
b 8mm
h 3.5mm
M 95mm
Axial load capacity 490 kN
Loosening torque 285 Nm
Weight 0.75 kg
G M70x2
Spanner HN15
Grub screw M8
Screw torque 18 Nm
