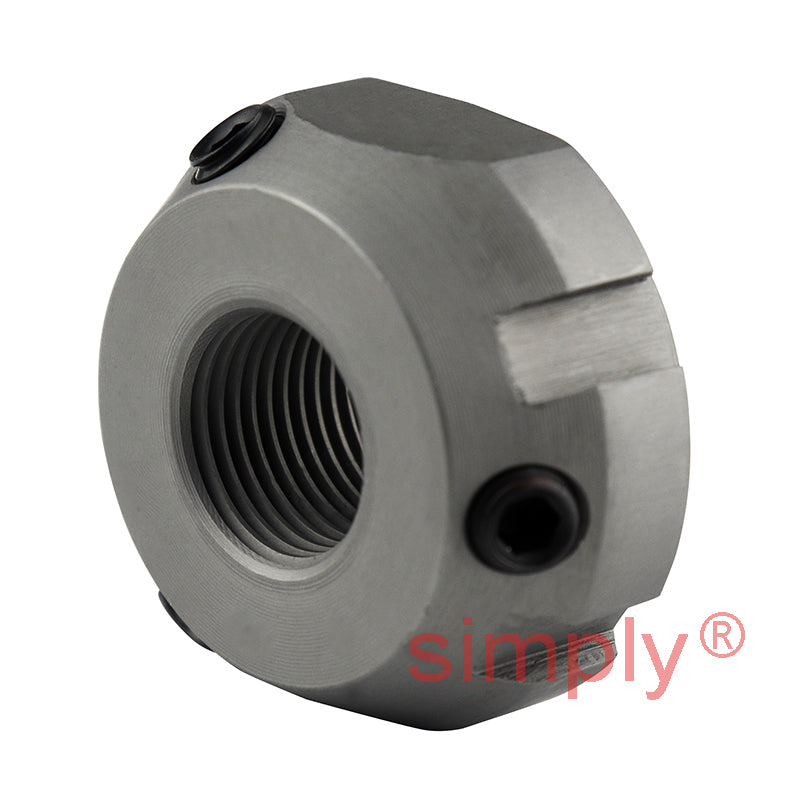

• SKF KMT15 Precision Lock Nut with Locking Pins M75x2mm
1 1

SKU: KMT15-SKF

SKF KMT15 Precision Lock Nut with Locking Pins M75x2mm

SKF KMT15 Precision Lock Nut with Locking Pins M75x2mm
$181.74 ex VAT
$181.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $121.73
19+ $114.89
29+ $113.53
39+ $112.16
49+ $110.79
74+ $109.42
99+ $102.58
199+ $101.22
249+ $99.85
499+ $98.48
999+ $95.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M75x2
Technical
d1 93mm
d2 105mm
d3 97mm
d4 77mm
B 28mm
b 8mm
h 3.5mm
M 100mm
Axial load capacity 520 kN
Loosening torque 305 Nm
Weight 0.8 kg
G M75x2
Spanner HN15/16
Grub screw M8
Screw torque 18 Nm
