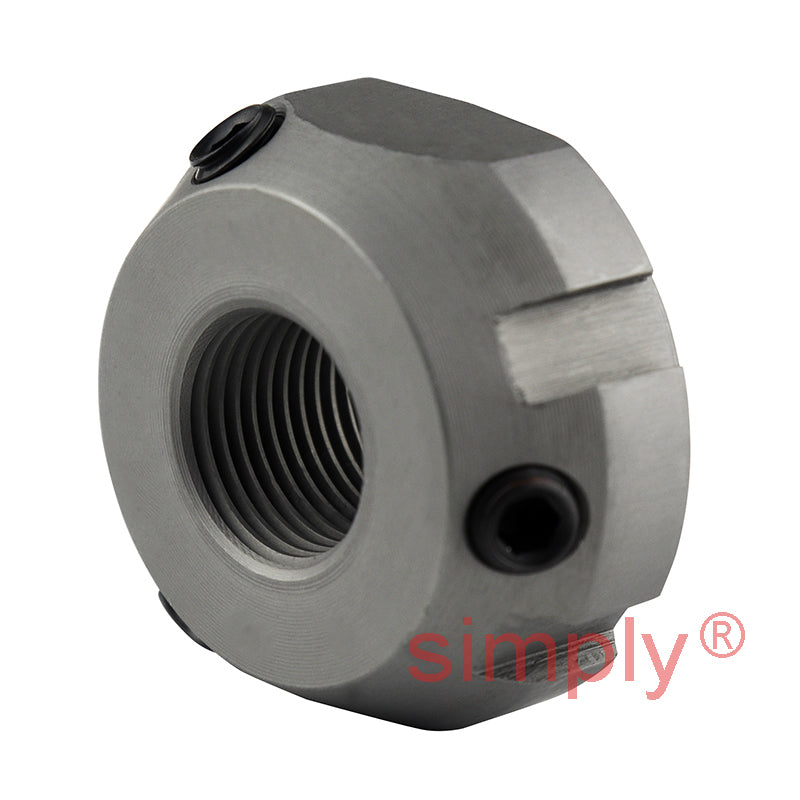

• SKF KMT18 Precision Lock Nut with Locking Pins M90x2mm
1 1

SKU: KMT18-SKF

SKF KMT18 Precision Lock Nut with Locking Pins M90x2mm

SKF KMT18 Precision Lock Nut with Locking Pins M90x2mm
$263.39 ex VAT
$263.39 ex VAT
Sale Sold out

In stock

Price Break
10+ $176.43
19+ $166.51
29+ $164.53
39+ $162.55
49+ $160.57
74+ $158.59
99+ $148.67
199+ $146.69
249+ $144.71
499+ $142.73
999+ $138.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M90x2
Technical
d1 112mm
d2 125mm
d3 115mm
d4 93mm
B 32mm
b 10mm
h 4mm
Axial load capacity 680 kN
Loosening torque 720 Nm
Weight 1.2 kg
G M90x2
Spanner HN18/19
Grub screw M10
Screw torque 35 Nm
