• SKF KMT2 Precision Lock Nut with Locking Pins M15x1mm
1 1

SKU: KMT2-SKF

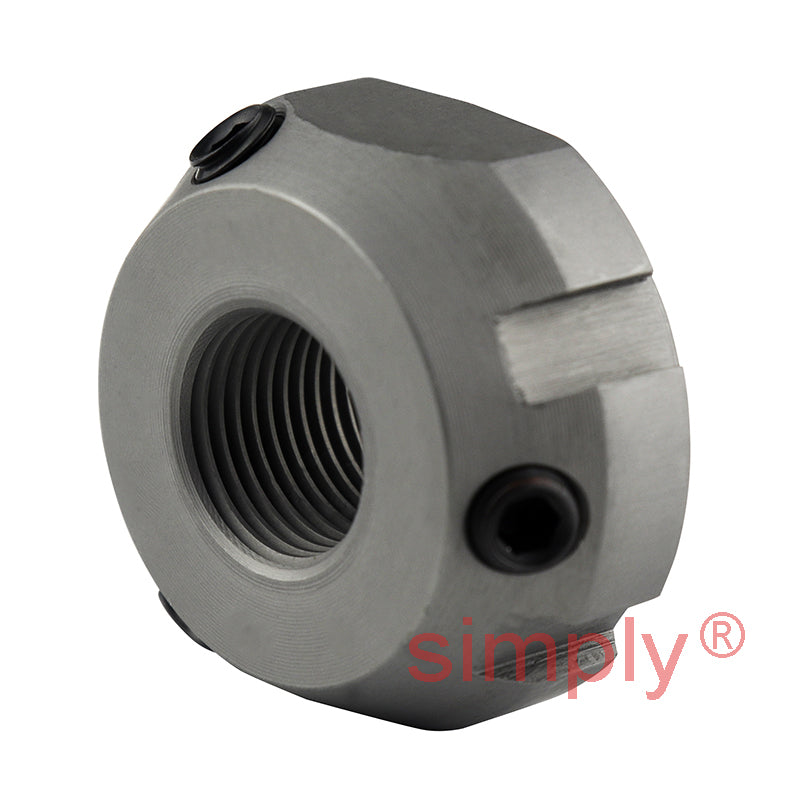

SKF KMT2 Precision Lock Nut with Locking Pins M15x1mm

SKF KMT2 Precision Lock Nut with Locking Pins M15x1mm
$183.06 ex VAT
$183.06 ex VAT
Sale Sold out

In stock

Price Break
10+ $122.60
19+ $115.71
29+ $114.33
39+ $112.96
49+ $111.58
74+ $110.20
99+ $103.31
199+ $101.94
249+ $100.56
499+ $99.18
999+ $96.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M15x1
Technical
d1 26mm
d2 33mm
d3 28mm
d4 16mm
B 16mm
b 4mm
h 2mm
M 30mm
Axial load capacity 60 kN
Loosening torque 20 Nm
Weight 0.075 kg
G M15x1
Spanner HN4
Grub screw M5
Screw torque 4.5 Nm
