SKU: KMT22-MB

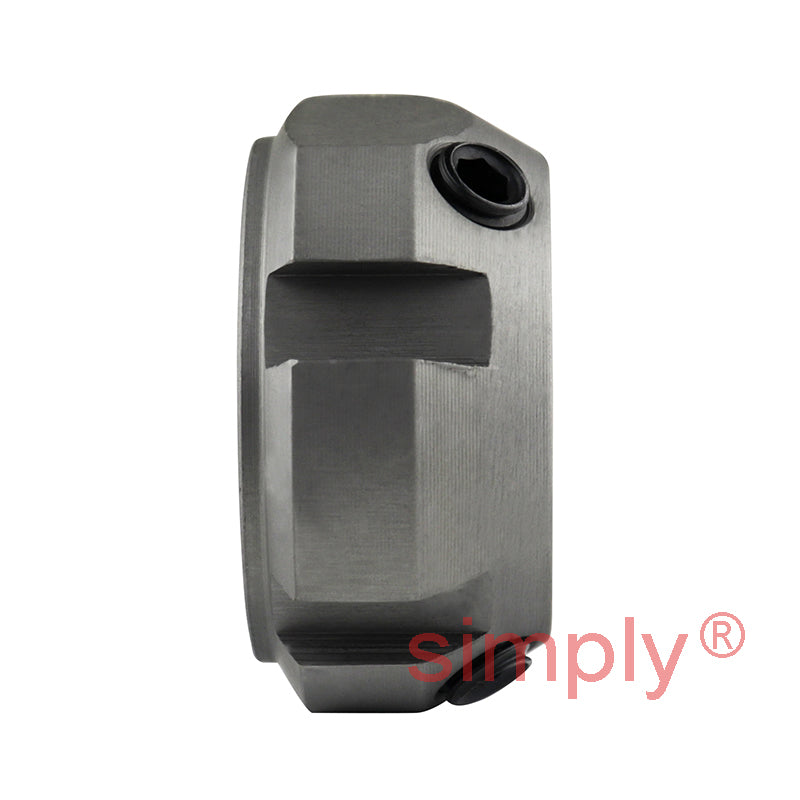

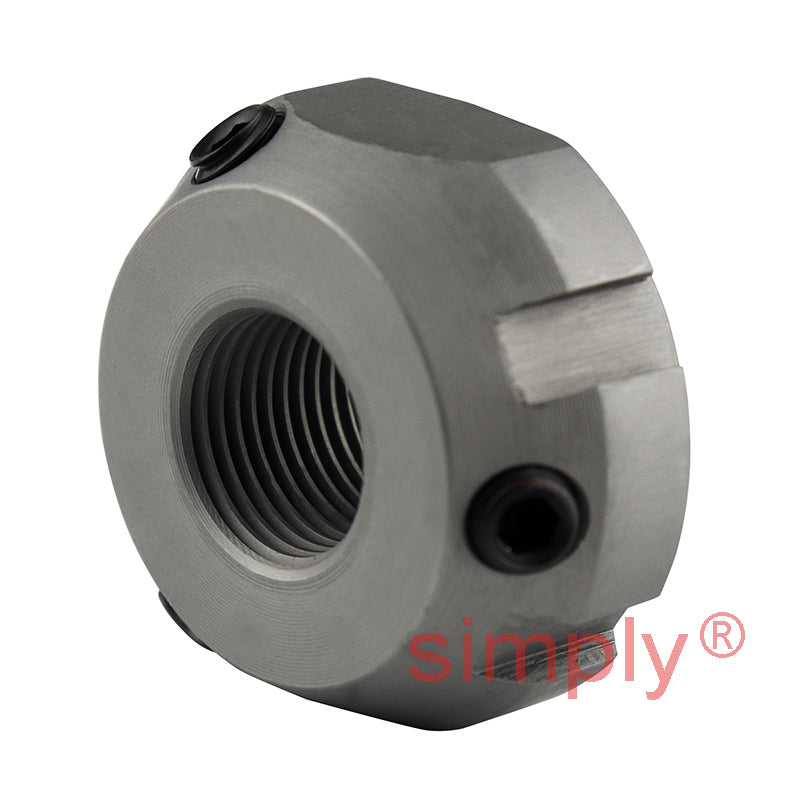

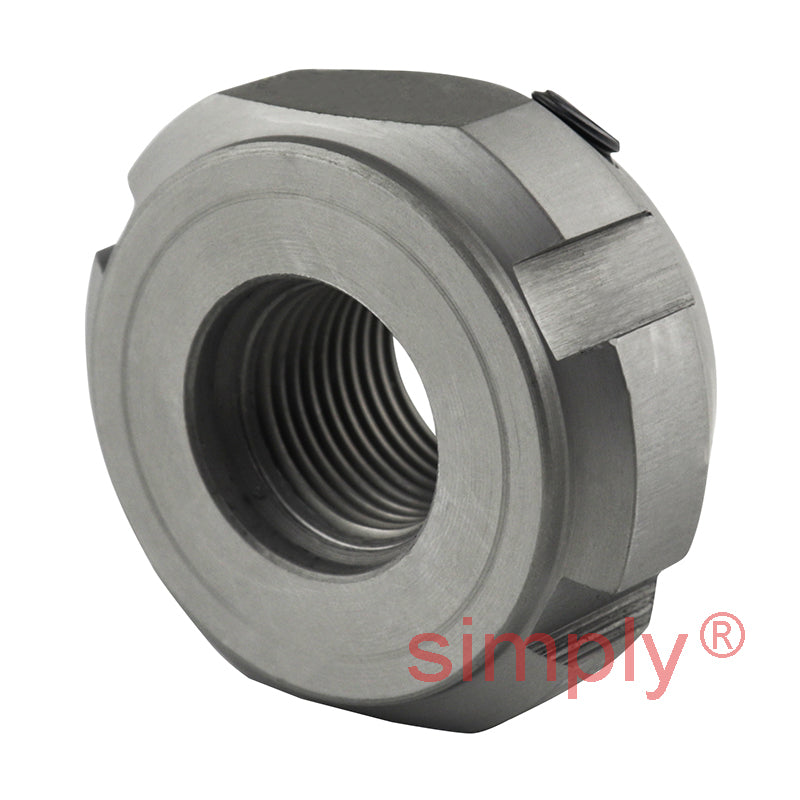

KMT22 Locknut with ISO Metric Threads 110x145x32mm

KMT22 Locknut with ISO Metric Threads 110x145x32mm
$106.12 ex VAT
$106.12 ex VAT
Sale Sold out

In stock

Price Break
10+ $71.08
19+ $67.09
29+ $66.29
39+ $65.49
49+ $64.69
74+ $63.90
99+ $59.90
199+ $59.10
249+ $58.31
499+ $57.51
999+ $55.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
M110x2
Technical
G M110x2
d1 132mm
d2 145mm
d3 134mm
d4 112mm
B 32mm
b 10mm
h 4mm
Axial load capacity 800 kN
Loosening torque 960 N m
Mass 1.45 kg
Spanner HN22
Grub screw M10
Screw torque 35 N m
