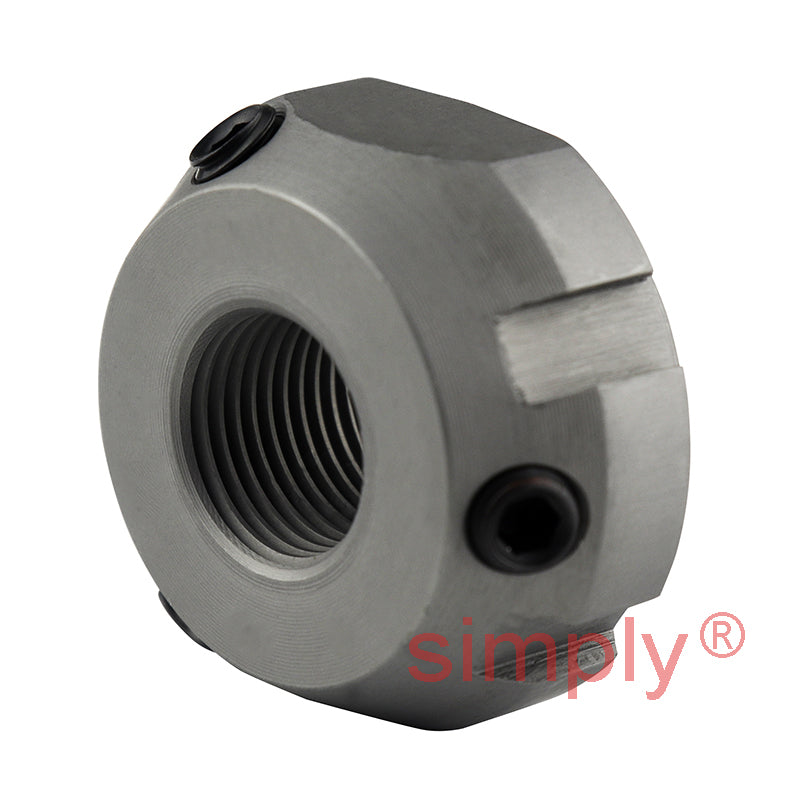

• SKF KMT24 Precision Lock Nut with Locking Pins M120x2mm
1 1

SKU: KMT24-SKF

SKF KMT24 Precision Lock Nut with Locking Pins M120x2mm

SKF KMT24 Precision Lock Nut with Locking Pins M120x2mm
$316.80 ex VAT
$316.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $212.20
19+ $200.28
29+ $197.89
39+ $195.51
49+ $193.13
74+ $190.74
99+ $178.82
199+ $176.44
249+ $174.05
499+ $171.67
999+ $166.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M120x2
Technical
d1 142mm
d2 155mm
d3 144mm
d4 122mm
B 32mm
b 10mm
h 4mm
Axial load capacity 860 kN
Loosening torque 1080 Nm
Weight 1.6 kg
G M120x2
Spanner TMFN23-30
Grub screw M10
Screw torque 35 Nm
