• SKF KMT26 Precision Lock Nut with Locking Pins M130x2mm
1 1

SKU: KMT26-SKF

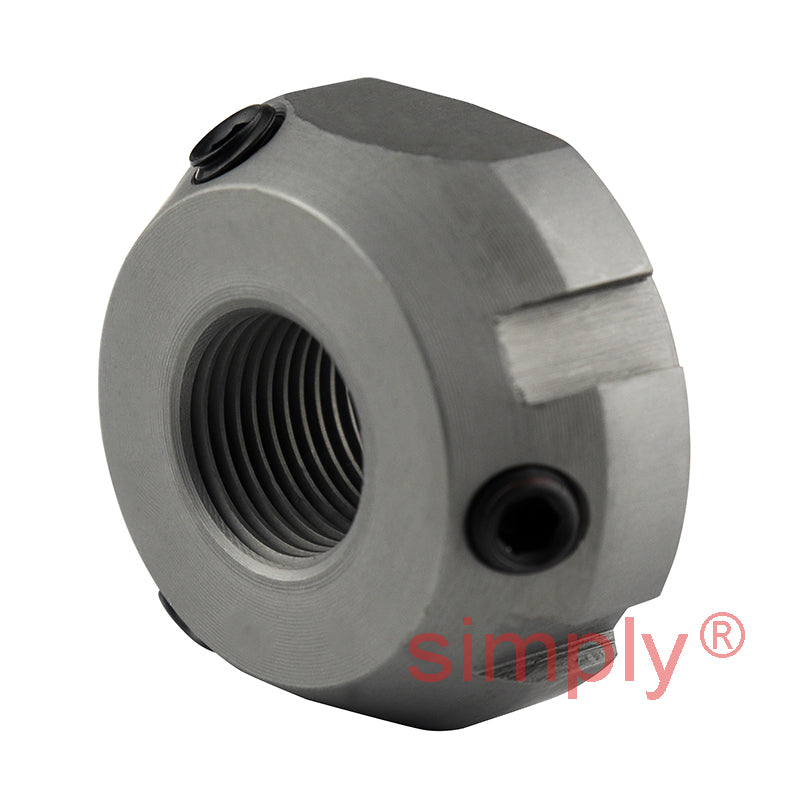

SKF KMT26 Precision Lock Nut with Locking Pins M130x2mm

SKF KMT26 Precision Lock Nut with Locking Pins M130x2mm
$401.86 ex VAT
$401.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $269.18
19+ $254.06
29+ $251.03
39+ $248.01
49+ $244.98
74+ $241.96
99+ $226.84
199+ $223.81
249+ $220.79
499+ $217.76
999+ $211.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M130x2
Technical
d1 152mm
d2 165mm
d3 154mm
d4 132mm
B 32mm
b 12mm
h 5mm
Axial load capacity 920 kN
Loosening torque 1200 Nm
Weight 1.7 kg
G M130x2
Spanner TMFN23-30
Grub screw M10
Screw torque 35 Nm
