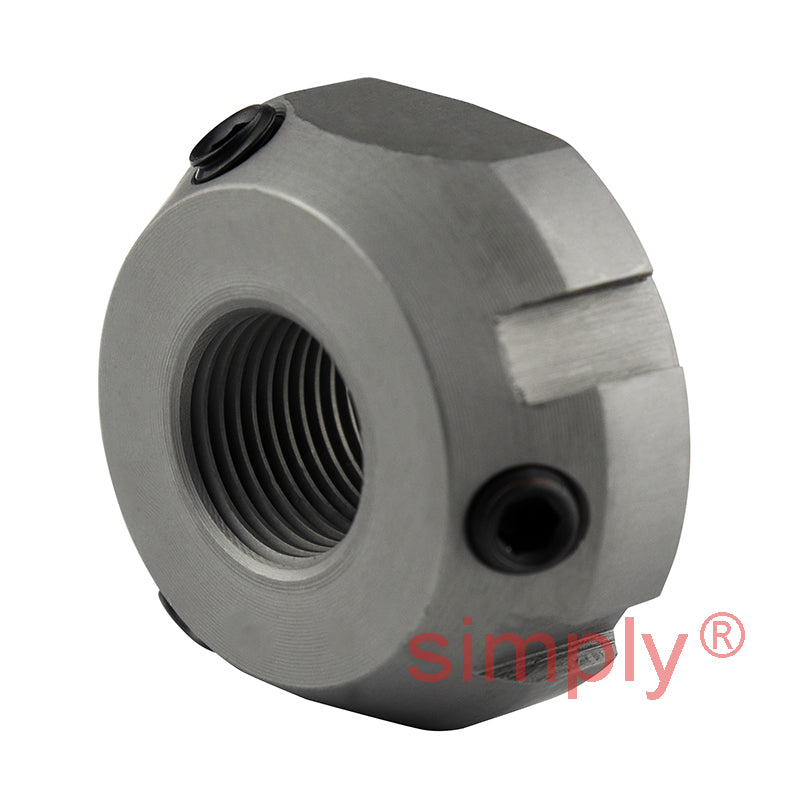

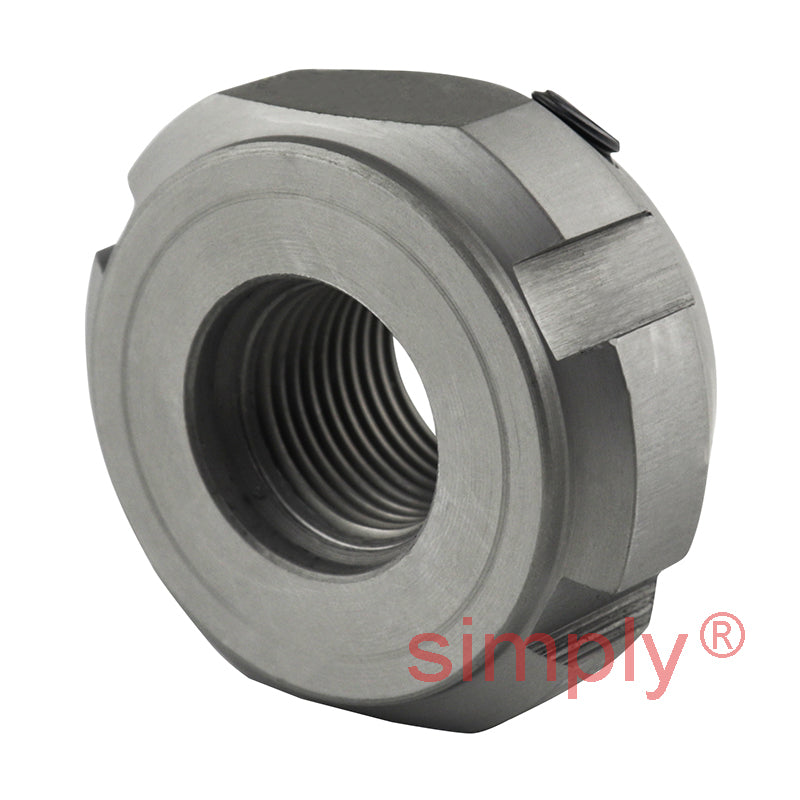

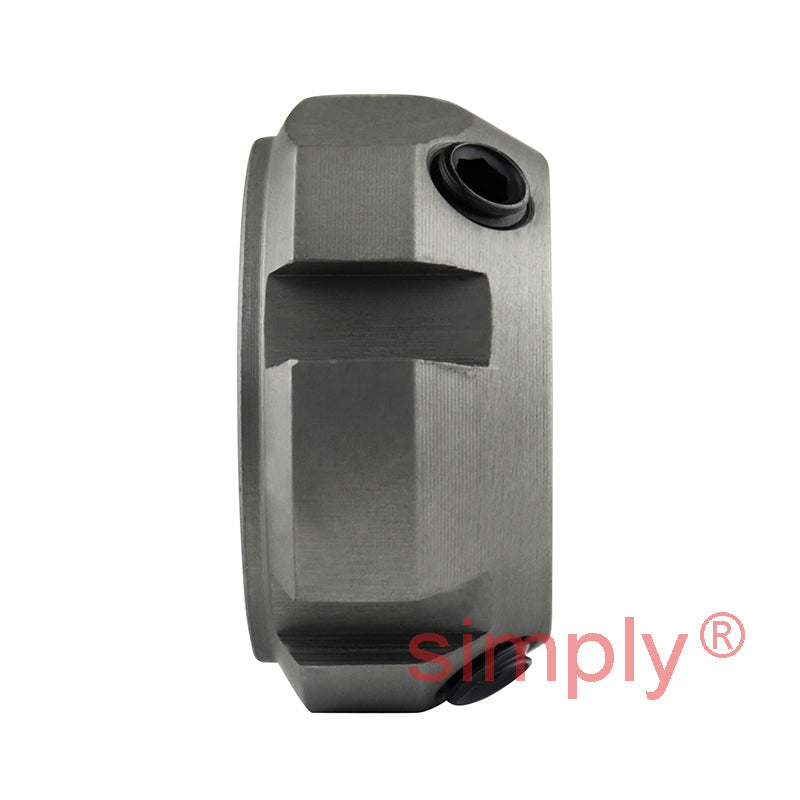

• SKF KMT3 Precision Lock Nut with Locking Pins M17x1mm
  • SKF KMT3 Precision Lock Nut with Locking Pins M17x1mm
  • SKF KMT3 Precision Lock Nut with Locking Pins M17x1mm
1 3

SKU: KMT3-SKF

SKF KMT3 Precision Lock Nut with Locking Pins M17x1mm

SKF KMT3 Precision Lock Nut with Locking Pins M17x1mm
$79.04 ex VAT
$79.04 ex VAT
Sale Sold out

In stock

Price Break
10+ $52.95
19+ $49.98
29+ $49.38
39+ $48.79
49+ $48.19
74+ $47.60
99+ $44.62
199+ $44.03
249+ $43.43
499+ $42.84
999+ $41.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M17x1
Technical
d1 29mm
d2 37mm
d3 33mm
d4 18mm
B 18mm
b 5mm
h 2mm
M 34mm
Axial load capacity 80 kN
Loosening torque 25 Nm
Weight 0.1 kg
G M17x1
Spanner HN4
Grub screw M6
Screw torque 8 Nm
