• SKF KMT4 Precision Lock Nut with Locking Pins M20x1mm - Allow 2-3 Days
1 1

SKU: KMT4-SKF

SKF KMT4 Precision Lock Nut with Locking Pins M20x1mm - Allow 2-3 Days

SKF KMT4 Precision Lock Nut with Locking Pins M20x1mm - Allow 2-3 Days
$88.36 ex VAT
$88.36 ex VAT
Sale Sold out

In stock

Price Break
10+ $65.83
19+ $63.17
29+ $61.84
39+ $59.84
49+ $58.51
74+ $55.19
99+ $46.54
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

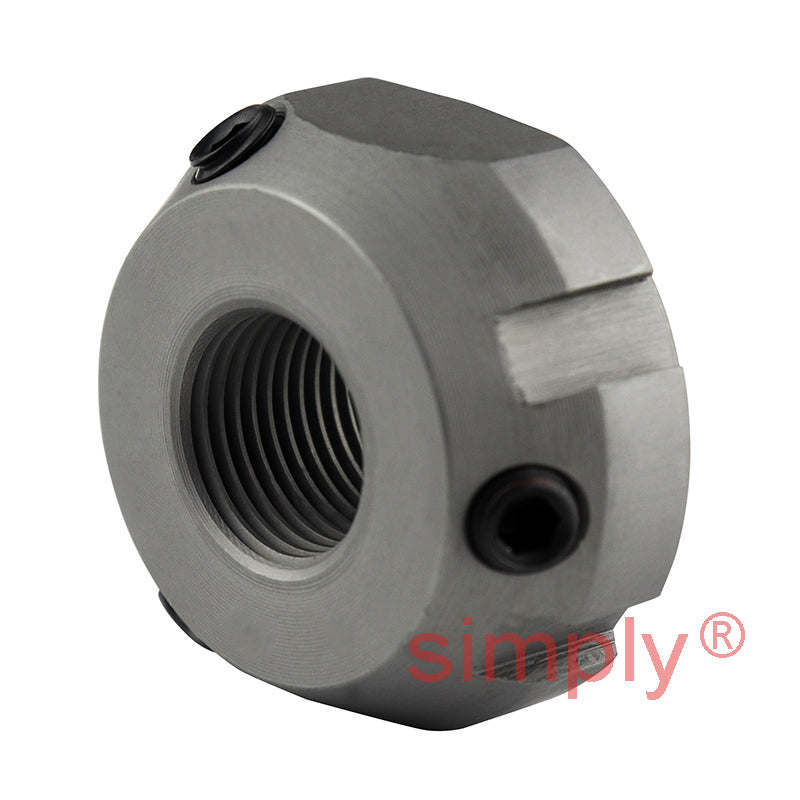

SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M20x1
Technical
d1 32mm
d2 40mm
d3 35mm
d4 21mm
B 18mm
b 5mm
h 2mm
M 36mm
Axial load capacity 90 kN
Loosening torque 35 Nm
Weight 0.11 kg
G M20x1
Spanner HN5
Grub screw M6
Screw torque 8 Nm
