SKU: KMT40-MB

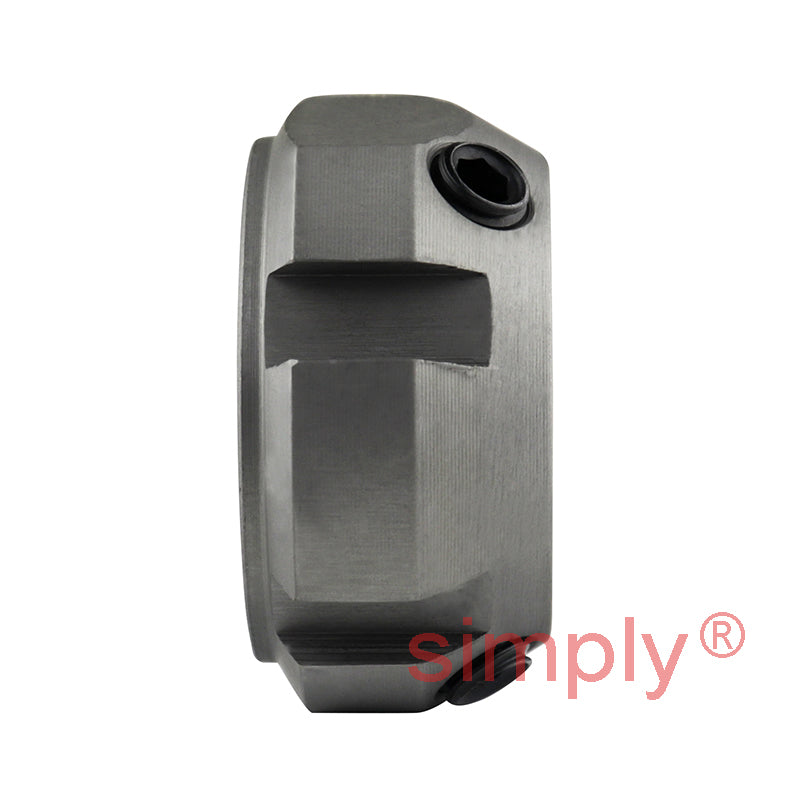

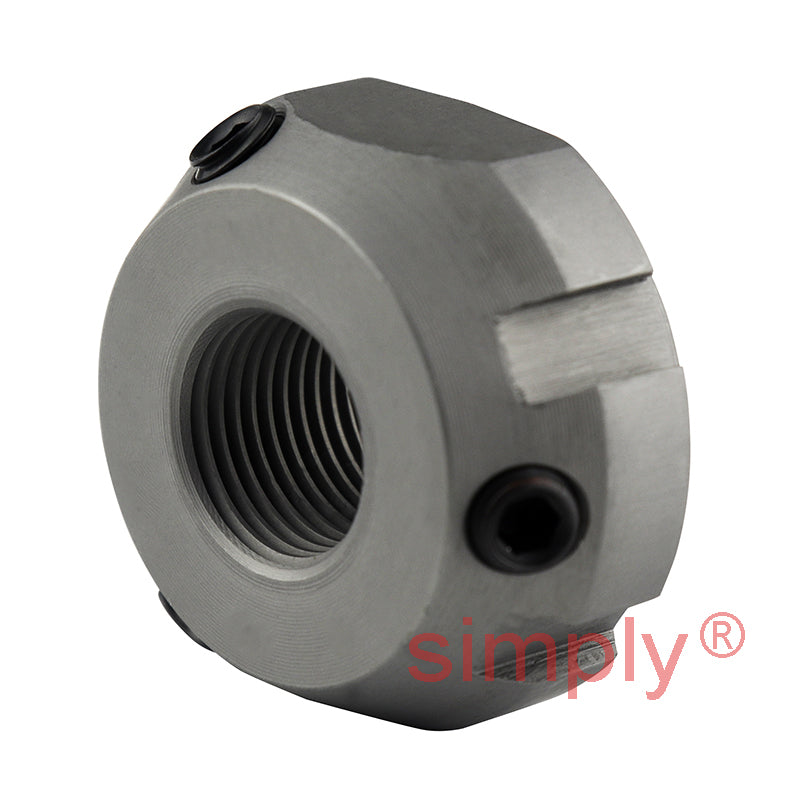

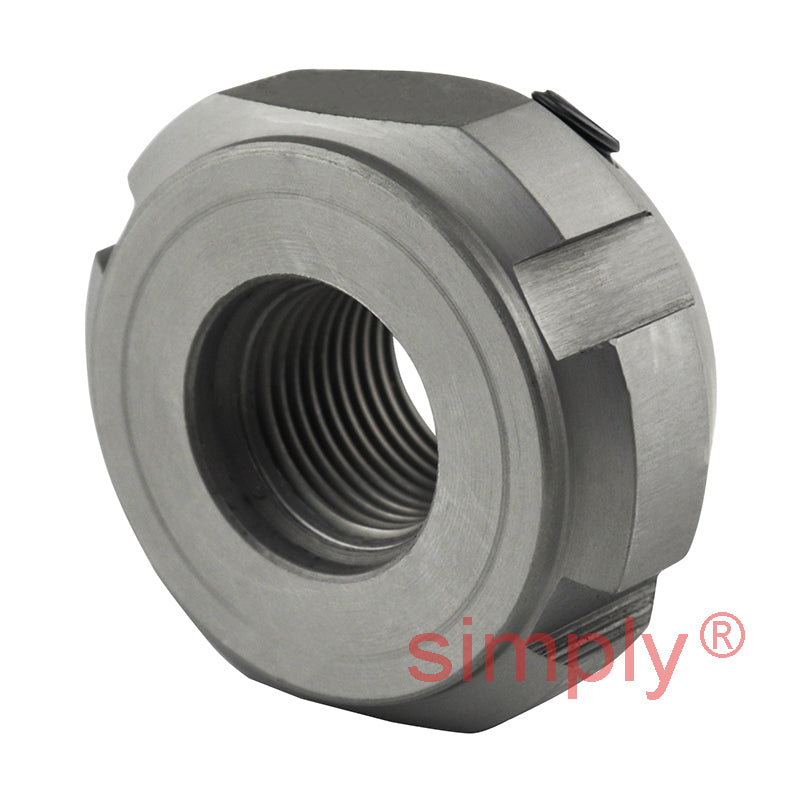

KMT40 Locknut with ISO Metric Threads 200x235x32mm

KMT40 Locknut with ISO Metric Threads 200x235x32mm
$235.91 ex VAT
$235.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $158.02
19+ $149.14
29+ $147.36
39+ $145.59
49+ $143.81
74+ $142.04
99+ $133.16
199+ $131.38
249+ $129.61
499+ $127.83
999+ $124.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
M200x3
Technical
G M200x3
d1 222mm
d2 235mm
d3 224mm
d4 202mm
B 32mm
b 18mm
h 8mm
Axial load capacity 1340 kN
Loosening torque 2300 N m
Mass 2.5 kg
Spanner TMFN30-40
Grub screw M10
Screw torque 35 N m
